ZA4830 - Exmark 30" Z-Aerate Stand-On Aerator, Kawasaki FS541V (SN: 416150475 - 417930745) (Rev B) (2024) Main Frame Assembly Parts Diagram

30" Z-Aerate Stand-On Aerator, Kawasaki FS541V

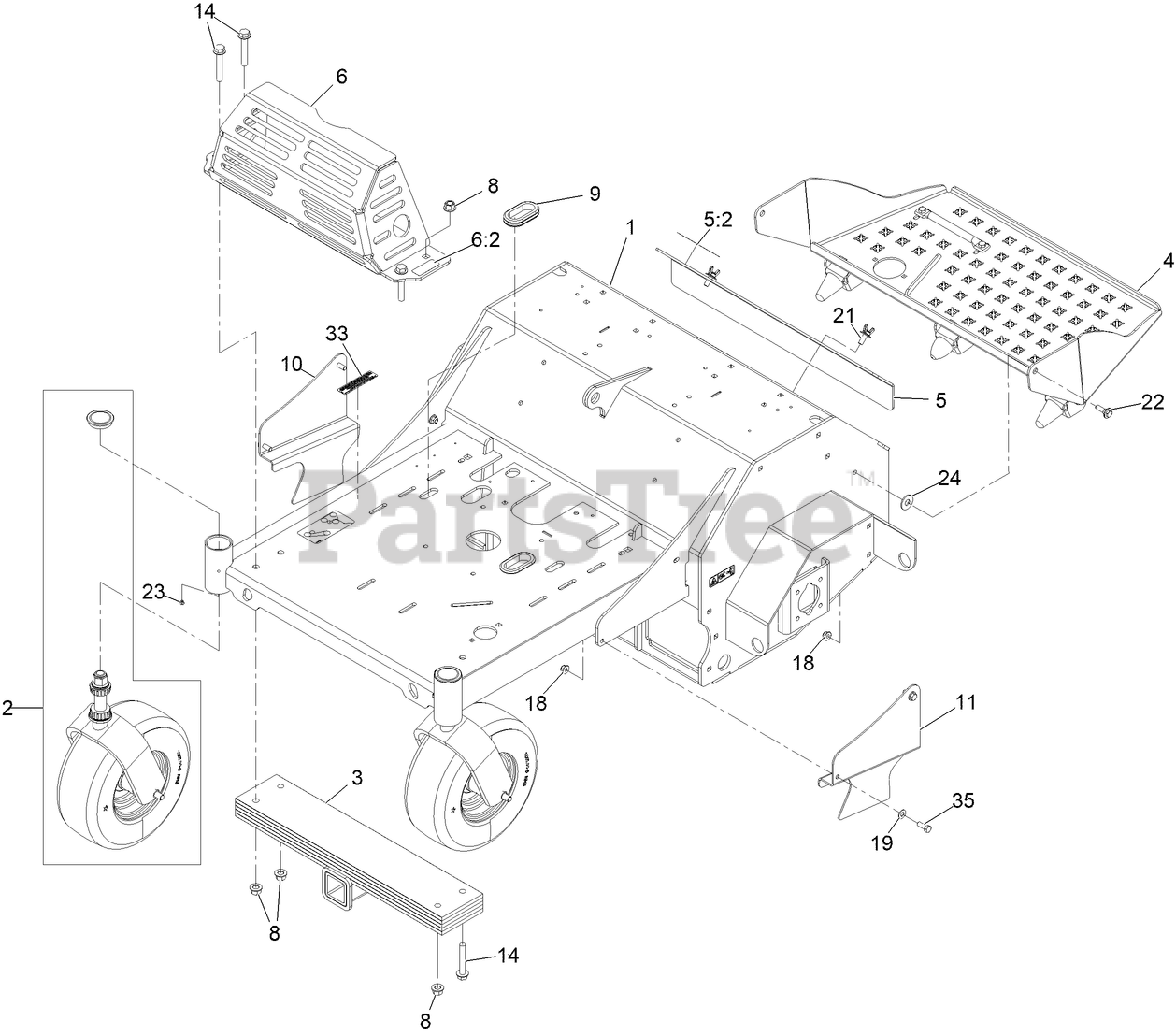

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-4378

Main Frame ASM

$2833.99

$

Usually ships in 0 days

0

2

Front Caster ASM W/Fork

Note: Not serviced separately

$

$

Not available

3

Exmark 116-6536-03

ASM-WEIGHT

$398.99

$

Usually ships in 3-6 days

0

4

Exmark 116-9135

PLATFORM W/ROCKER ASM

$582.99

$

Usually ships in 3-6 days

0

5

Exmark 142-4379

ACCESS COVER ASM

$59.99

$

Usually ships in 3-6 days

0

5:2

Exmark 121-6163

DECAL-OPERATION, TINE GRO

$8.99

$

Usually ships in 3-6 days

0

6

Exmark 116-8258

MUFFLER GUARD ASM

$343.99

$

Usually ships in 3-6 days

0

6:2

Exmark 115-2047

DECAL-SURFACE, HOT

$18.99

$

In Stock, only 1 left!

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

9

Exmark 126-0015

GROMMET

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 116-6612-01

GUARD-CHAIN, RH

$67.99

$

Usually ships in 3-6 days

0

11

Exmark 116-6611-01

GUARD-CHAIN, LH

$67.99

$

Usually ships in 3-6 days

0

14

Exmark 3234-40

SCREW-HF

$14.99

$

Usually ships in 3-6 days

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 135-4629

Screw-Sems (3/8-16 X 1)

$9.99

$

Usually ships in 3-6 days

0

22

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 5

0

23

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0

24

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

33

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

35

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
