ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Battery and Wire Harness Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

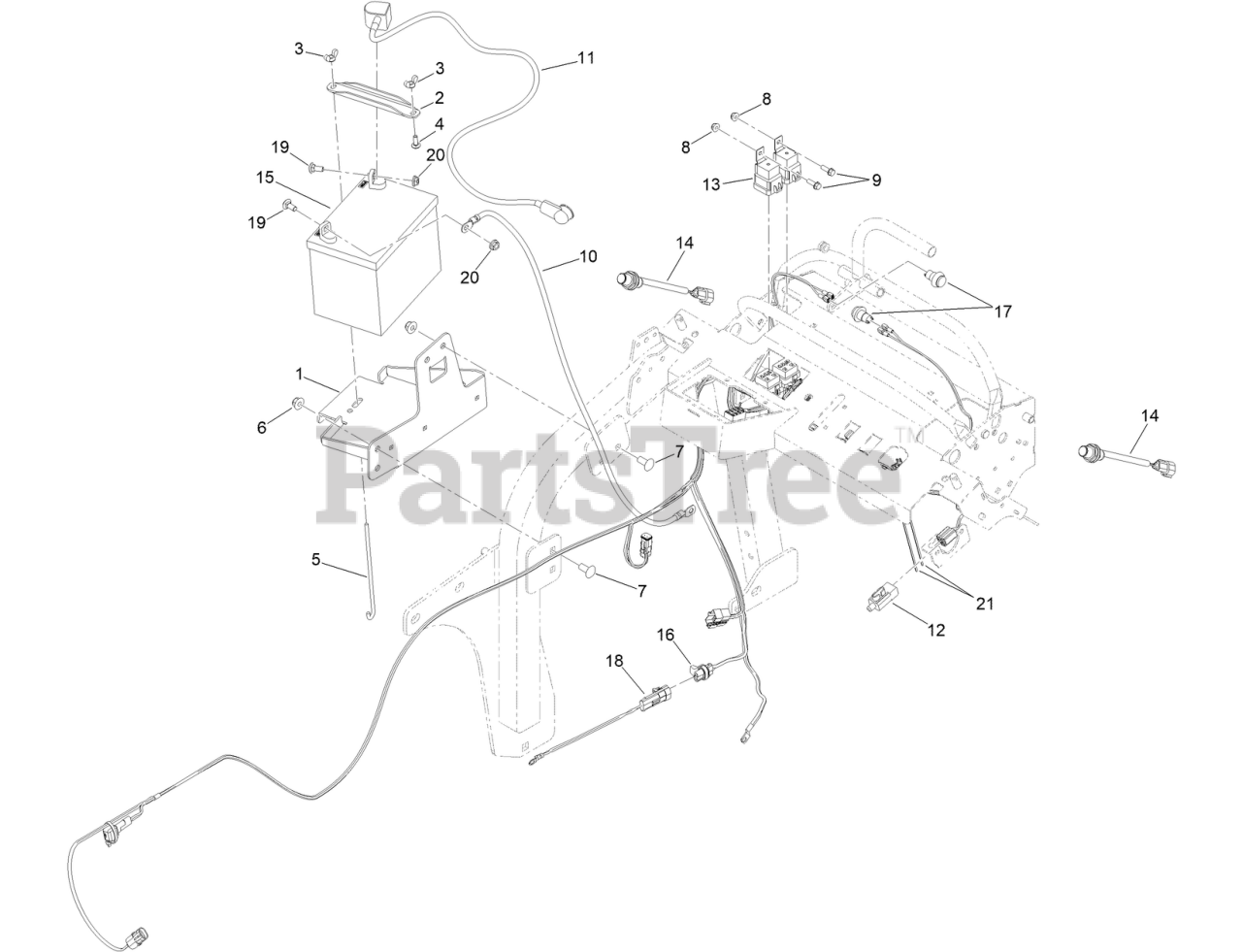

Battery and Wire Harness Assembly Parts Diagram

  • Title

1

Exmark 144-7692-03

BRACKET-MOUNT, BATTERY

$108.99

$

Usually ships in 0 days

0

2

Exmark 144-7169-03

BRACKET, TIE-DOWN

$17.99

$

Usually ships in 0 days

0

3

Exmark 32103-22

NUT-WING

$2.99

$

In Stock, Qty 10

0

4

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

5

Exmark 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 12

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 3231-27

SCREW-CARR

$4.99

$

In Stock, only 3 left!

0

8

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

10

Exmark 106-8946

CABLE-BATTERY, NEGATIVE

$23.99

$

Usually ships in 0 days

0

11

Exmark 106-8945

CABLE-BATTERY, POSITIVE

$43.99

$

Usually ships in 3-6 days

0

12

Exmark 99-7408

SWITCH-REVERSE

$30.99

$

In Stock, only 2 left!

0

13

Exmark 99-7430

RELAY-MINI

$26.99

$

In Stock, Qty 5

0

14

Exmark 139-7238

SENSOR-PROXIMITY, N.O.

$187.99

$

Usually ships in 3-6 days

0

15

Exmark 104-4657

Battery (340 CCA, Wet)

$

$

Currently unavailable

16

Exmark 122-2659

HARNESS-WIRE, MAIN

$763.99

$

Usually ships in 0 days

0

17

Exmark 125-7996

SWITCH-PB, MOMENTARY

$165.99

$

Usually ships in 0 days

0

18

Exmark 108-9470

HARNESS-WIRE, FUSIBLE LINK

$66.99

$

Usually ships in 3-6 days

0

19

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
