ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Caster Wheel and Fork Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

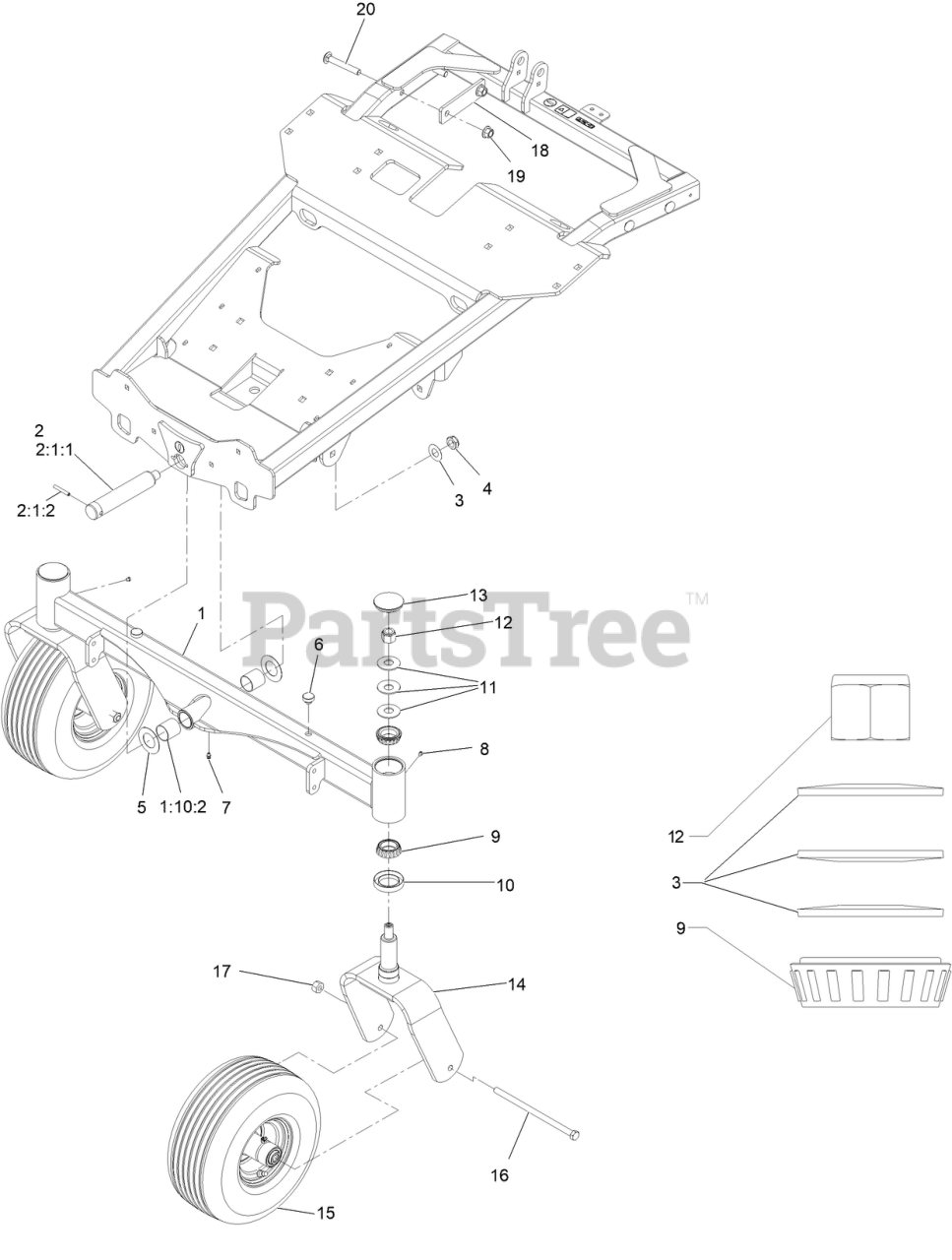

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 145-4240SP

Machined Axle ASM W/Bushings

$

$

Currently unavailable

1:10:2

Exmark 99-6964

BUSHING-AXLE

$4.99

$

Usually ships in 0 days

0

2

Exmark 145-1838-03

AXLE PIVOT PIN ASM

$157.99

$

Usually ships in 0 days

0

2:1:1

Exmark 145-1839

PIN-AXLE PIVOT

$142.99

$

Usually ships in 0 days

0

2:1:2

Exmark 32121-32

PIN-ROLL

$1.99

$

In Stock, Qty 8

0

3

Exmark 71-4540

WASHER-THRUST

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 3296-15

NUT-LOCK, NI

$2.99

$

In Stock, Qty 10

0

5

Exmark 99-8432

WASHER-THRUST

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 140-3460

BUMPER-RUBBER

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 302-5

Zerk 1/4-28 Str Thrd Forming

$3.49

$

In Stock, Qty 20+

0

8

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0

9

Exmark 254-106

CONE-BEARING, TAPERED

$25.99

$

In Stock, only 2 left!

0

10

Exmark 69-2980

SEAL

$45.99

$

Usually ships in 3-6 days

0

11

Exmark 108-9957

WASHER-BELLEVILLE

$9.49

$

Usually ships in 3-6 days

0

12

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, only 2 left!

0

13

Exmark 108-9950

CAP-GREASE

$20.99

$

Usually ships in 3-6 days

0

14

Exmark 145-1830-01

FORK-CASTOR

$271.99

$

Usually ships in 0 days

0

15

Exmark 145-7428

CASTOR WHEEL ASM

$241.99

$

Usually ships in 0 days

0

16

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 9

0

17

Exmark 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

18

Exmark 144-7519

PLATE-CLAMP

$7.49

$

Usually ships in 0 days

0

19

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

20

Exmark 3233-10

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0
