ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Engine, Belt and Muffler Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

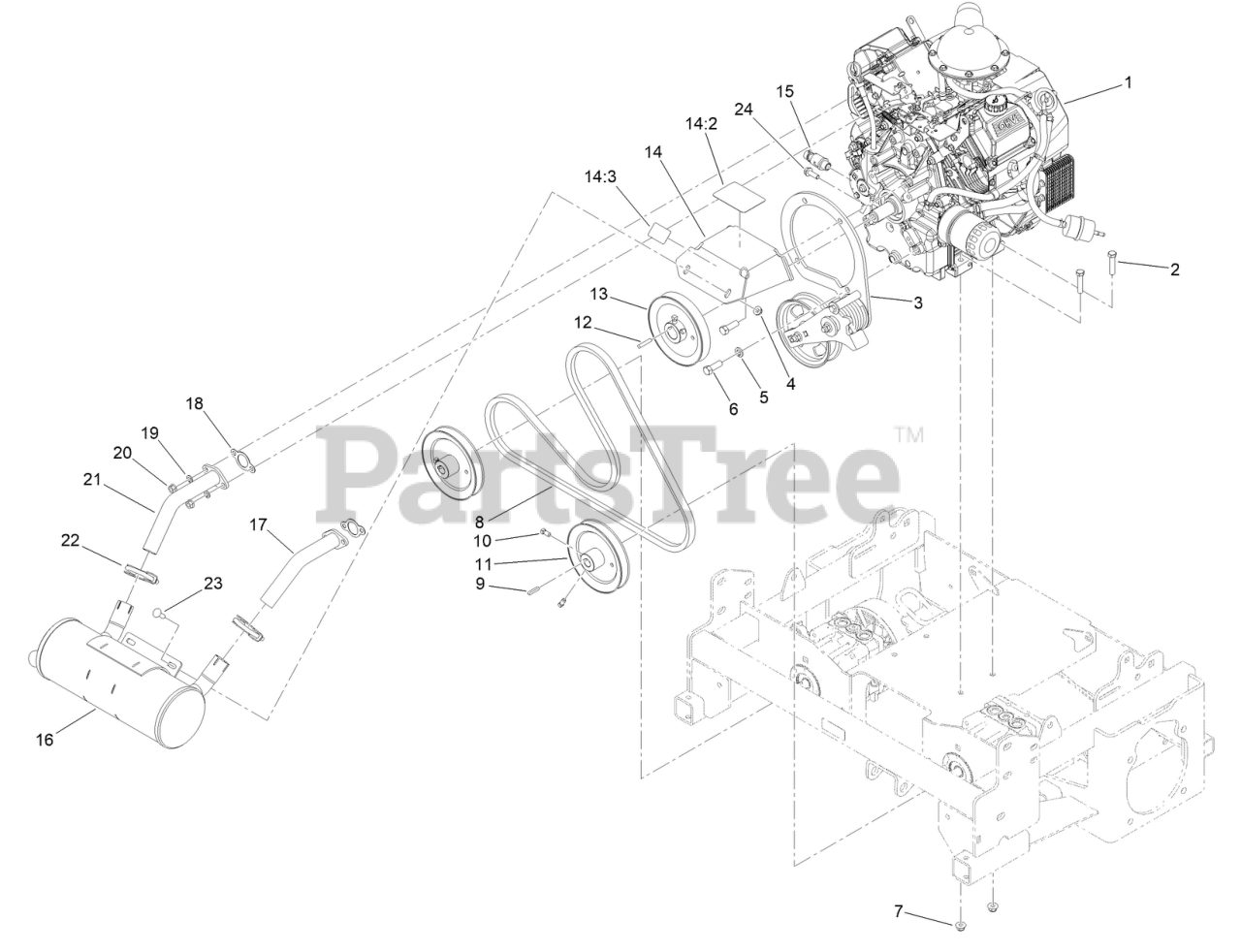

Engine, Belt and Muffler Assembly Parts Diagram

  • Title

1

Exmark 133-8075

ENGINE-KOHLER, CH740-3136

$4013.99

$

Usually ships in 3-6 days

0

2

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 144-4613

TENSIONER ASM

$346.99

$

Usually ships in 0 days

0

4

Exmark 32128-35

NUT-HF

$3.49

$

Usually ships in 3-6 days

0

5

Exmark 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Exmark 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 110-6973

BELT-V

$76.99

$

In Stock, only 2 left!

0

9

Exmark 135-7971

KEY, 5MM X 5MM X 29MM

$2.99

$

In Stock, Qty 13

0

10

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, only 2 left!

0

11

Exmark 144-4642

PULLEY-DRIVEN

$86.99

$

Usually ships in 0 days

0

12

Exmark 13-2840

KEY-SQUARE

$1.99

$

In Stock, only 2 left!

0

13

Exmark 144-4643

PULLEY, DRIVE

$88.99

$

Usually ships in 0 days

0

14

Exmark 147-3715

MUFFLER BRACKET ASM W/DECALS

$128.99

$

Usually ships in 0 days

0

14:2

Exmark 145-1763

DECAL-BELT ROUTING

$9.99

$

Usually ships in 0 days

0

14:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

15

Exmark 120-4321

VALVE-DRAIN, OIL

$20.99

$

In Stock, only 1 left!

0

16

Exmark 145-4161

MUFFLER

$386.99

$

Usually ships in 0 days

0

17

Exmark 145-4157

HEADER-MUFFLER, LH

$67.99

$

Usually ships in 0 days

0

18

Exmark 110-6697

GASKET-EXHAUST

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

20

Exmark 33004-00

NUT-HF

$0.99

$

In Stock, Qty 9

0

21

Exmark 145-4158

HEADER-MUFFLER, RH

$73.99

$

Usually ships in 0 days

0

22

Exmark 2112-11

Clamp-Muffler

$8.49

$

In Stock, only 3 left!

0

23

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

24

Exmark 138-0690

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0
