ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Front Frame Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

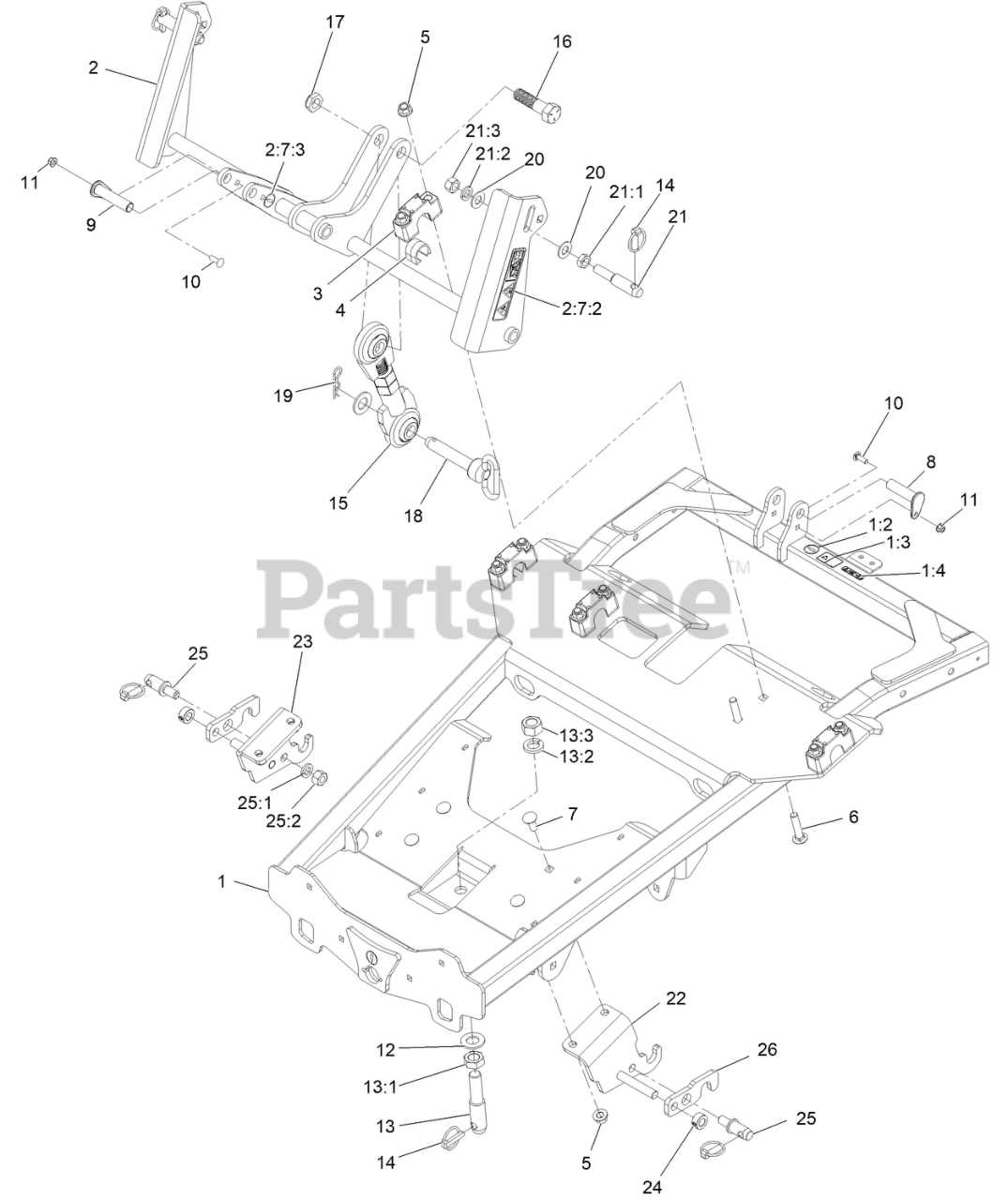

Front Frame Assembly Parts Diagram

  • Title

1

Exmark 147-3712

FRONT FRAME ASM W/DECALS

$

$

Not available

1:2

Exmark 58-6520

DECAL-GREASE

$3.49

$

In Stock, only 3 left!

0

1:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

1:4

Exmark 120-9570

DECAL-WARNING

$1.49

$

In Stock, Qty 5

0

2

Exmark 145-7447SP

Lift Arm ASM W/Decals

$

$

Currently unavailable

2:7:2

Exmark 145-1774

DECAL-STORED ENERGY ATTACHMENT

$7.49

$

Usually ships in 0 days

0

2:7:3

Exmark 58-6520

DECAL-GREASE

$3.49

$

In Stock, only 3 left!

0

3

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$15.99

$

In Stock, Qty 9

0

4

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 20+

0

5

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

6

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 140-6323

PIN

$26.99

$

Usually ships in 0 days

0

9

Exmark 147-3617

Pin-Mounting

$

$

Currently unavailable

10

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 3 left!

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

12

Exmark 3256-29

WASHER-FLAT

$3.49

$

In Stock, only 2 left!

0

13

Exmark 135-9371

1-1/8 X 5-1/4 LIFT ARM PI

$16.99

$

Usually ships in 3-6 days

0

13:1

Exmark 3220-8

NUT-JAM

$8.99

$

Usually ships in 3-6 days

0

13:2

Exmark 3253-28

WASHER-LOCK/SP

$9.49

$

Usually ships in 3-6 days

0

13:3

Exmark 3219-18

NUT-HEX

$12.99

$

Usually ships in 3-6 days

0

14

Exmark 283-71

PIN-LYNCH

$6.49

$

In Stock, only 4 left!

0

15

Exmark 135-9420

BALL SWIVEL, ADUSTABLE LI

$297.99

$

Usually ships in 3-6 days

0

16

Exmark 142-0611

7/8-9 X 3-1/4 GR8 HEX CAP

$12.99

$

Usually ships in 3-6 days

0

17

Exmark 138-7087

NUT-LOCK, NI

$9.99

$

Usually ships in 3-6 days

0

18

Exmark 135-9421

7/8 X 4 HITCH PIN RED HAN

$20.99

$

Usually ships in 3-6 days

0

19

Exmark 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

20

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 8

0

21

Exmark 135-9368

7/8 X 4-1/2 LIFT PIN\N21

$11.99

$

Usually ships in 3-6 days

0

21:1

Exmark 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 7

0

21:2

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21:3

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

22

Exmark 135-9471-03

X-REF 135-9471-05

$89.99

$

Usually ships in 3-6 days

0

23

Exmark 135-9472-03

X-REF 135-9472-05

$89.99

$

Usually ships in 3-6 days

0

24

Exmark 142-1443

5/8 SHAFT COLLAR

$3.99

$

Usually ships in 3-6 days

0

25

Exmark 135-9369

7/8 X 3-1/8 ANCHOR PIN (2

$5.99

$

Usually ships in 3-6 days

0

25:1

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25:2

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

26

Exmark 135-9330-03

X-REF 135-9330-05

$16.99

$

Usually ships in 0 days

0
