ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Fuel Tank Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

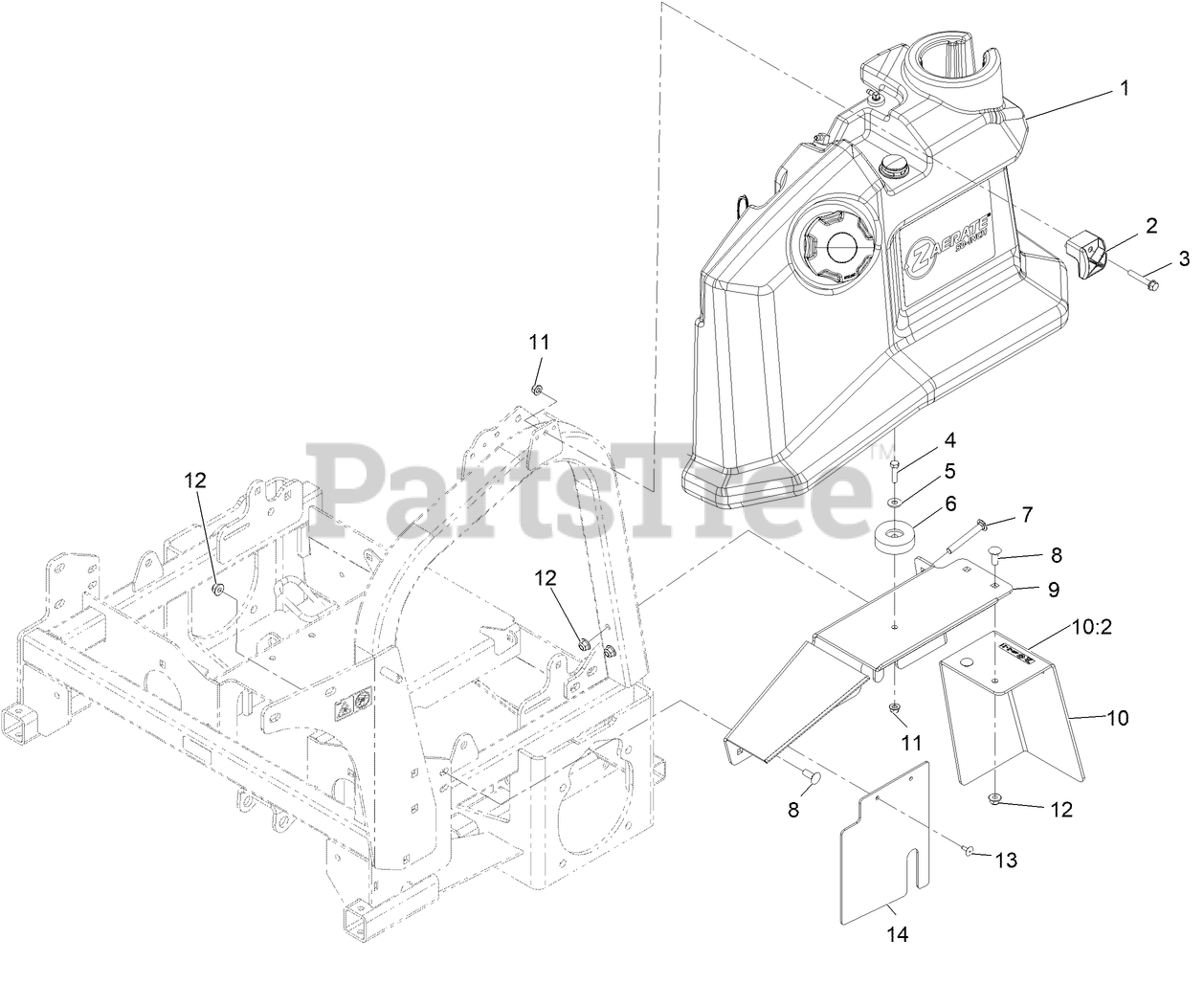

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 147-3706SP

FUEL TANK ASM W/DECAL

$1086.99

$

Usually ships in 0 days

0

2

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

3

Exmark 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

4

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

5

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

6

Exmark 108-1605

BUMPER-RECESS

$15.99

$

Usually ships in 3-6 days

0

7

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

8

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

9

Exmark 144-7685-01

BRACKET-FUEL TANK MOUNT, LOWER

$118.99

$

Usually ships in 0 days

0

10

Exmark 147-3713

LH FENDER ASM W/DECAL

$96.99

$

Usually ships in 0 days

0

10:2

Exmark 135-0328

DECAL-TORQUE, WHEEL NUT

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3269-20

RIVET-POP

$2.49

$

Usually ships in 3-6 days

0

14

Exmark 147-3305

FLAP-COVER, SIDE

$11.99

$

Usually ships in 0 days

0
