ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Hydraulic Manifold Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

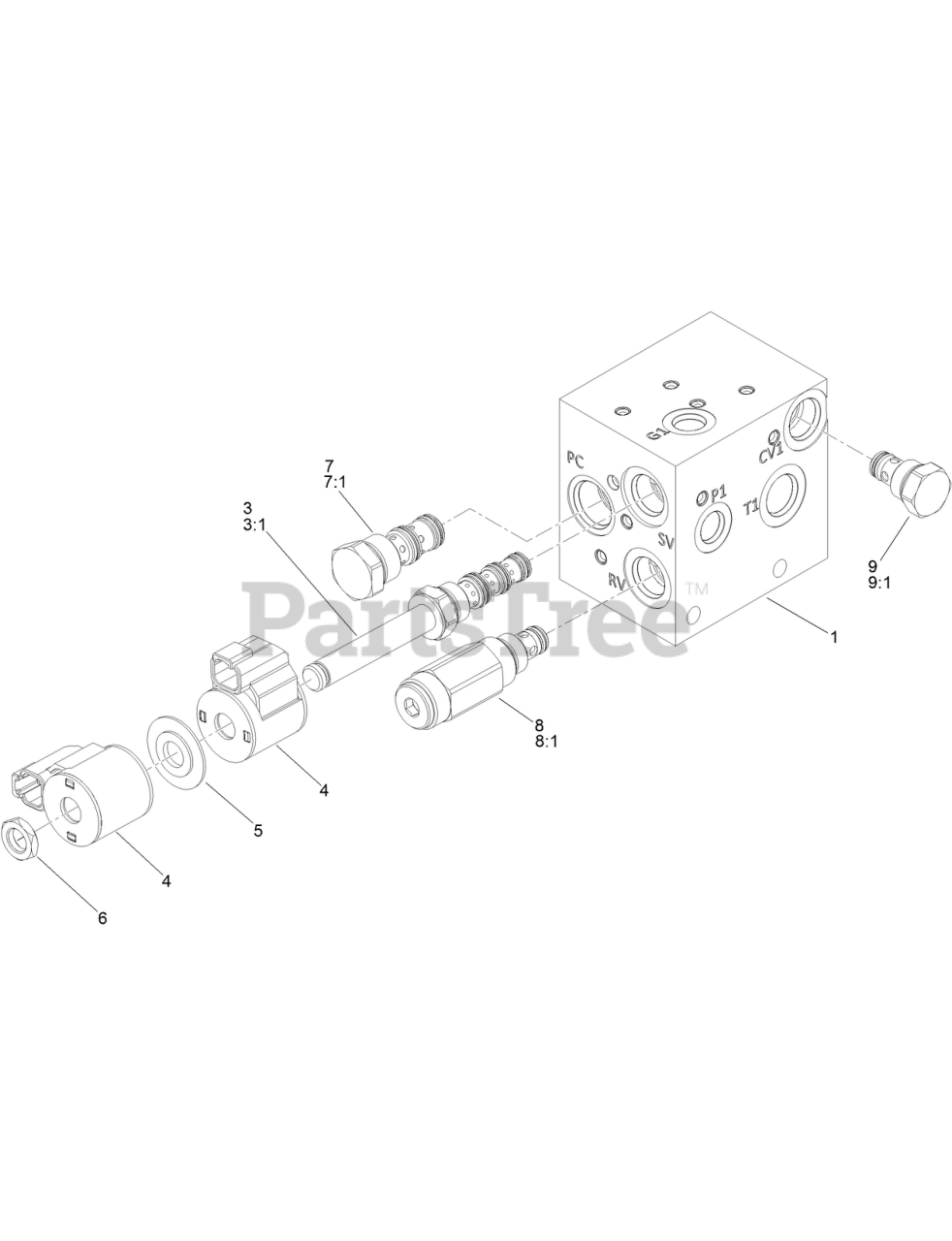

Hydraulic Manifold Assembly Parts Diagram

  • Title

1

Block-Manifold

Note: Not serviced separately

$

$

Not available

3

Exmark 127-3883

Valve-Solenoid

$

$

Currently unavailable

3:1

Exmark 112-6520

Seal Kit

$43.99

$

Usually ships in 3-6 days

0

4

Exmark 119-8036

COIL

$106.99

$

In Stock, only 1 left!

0

5

Exmark 120-2586

Spacer-Coil

$22.99

$

Usually ships in 3-6 days

0

6

Exmark 110-2634

NUT-COIL

$7.99

$

Usually ships in 3-6 days

0

7

Exmark 116-9718

VALVE-CHECK, P O

$529.99

$

Usually ships in 3-6 days

0

7:1

Exmark 116-9719

SEAL KIT

$17.99

$

Usually ships in 3-6 days

0

8

Exmark 114-2873

Check Valve ASM

$

$

Currently unavailable

8:1

Exmark 105-9156

SEAL KIT

$22.99

$

Usually ships in 3-6 days

0

9

Exmark 147-6631

Valve-Relief, 900PSI

$

$

Currently unavailable

9:1

Exmark 147-6632

Seal Kit

$

$

Currently unavailable
