ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Hydraulic Tank Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

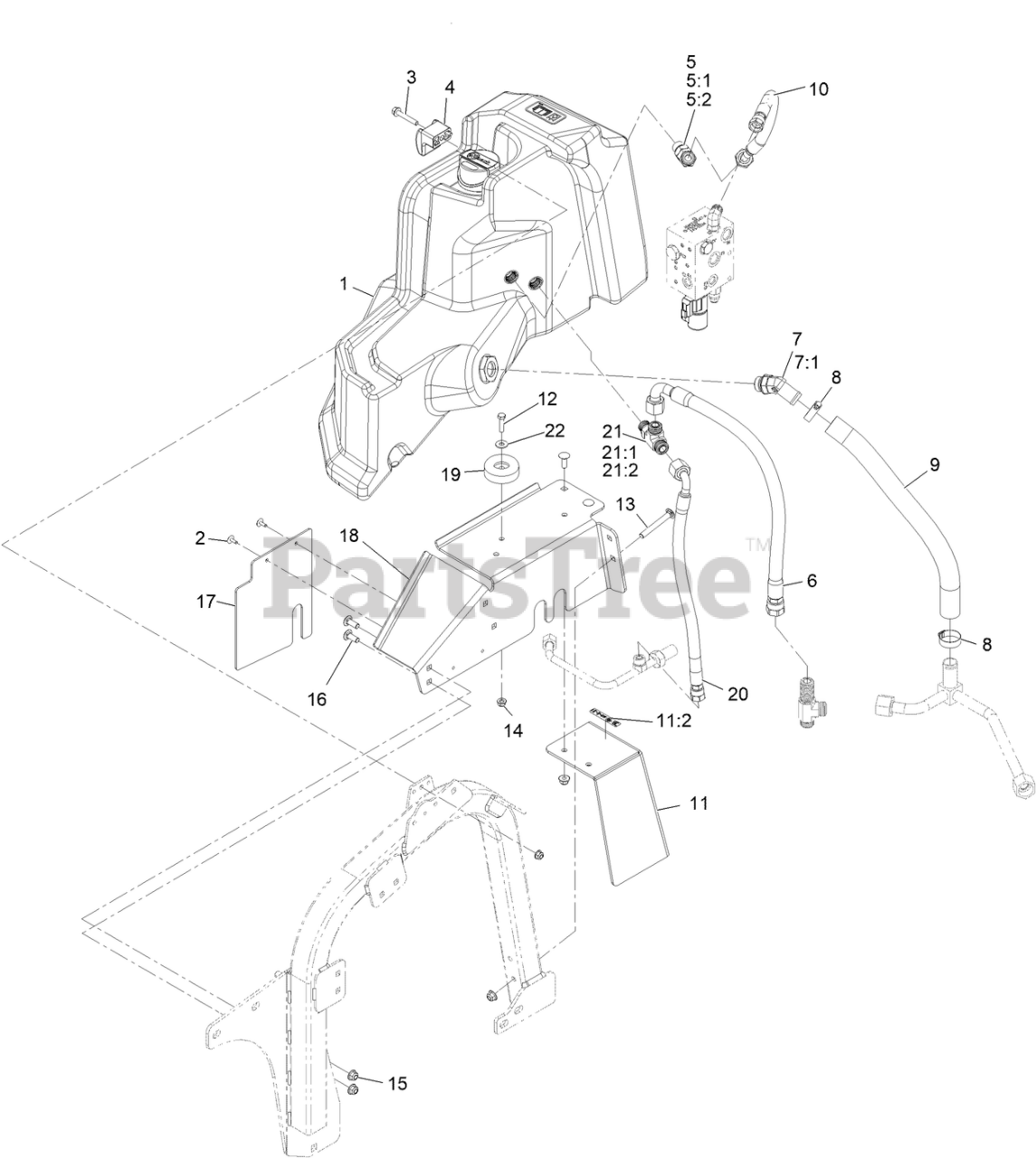

Hydraulic Tank Assembly Parts Diagram

  • Title

1

Exmark 147-3705SP

HYDRO TANK ASM W/DECAL

$1390.99

$

Usually ships in 0 days

0

2

Exmark 3269-20

RIVET-POP

$2.49

$

Usually ships in 3-6 days

0

3

Exmark 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

4

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 340-14

FITTING-HYD, 45 DEG

$54.99

$

Usually ships in 3-6 days

0

5:1

Exmark 237-65

O-RING

$2.99

$

In Stock, Qty 12

0

5:2

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

6

Exmark 144-7296

HYDRAULIC HOSE ASM

$118.99

$

Usually ships in 0 days

0

7

Exmark 144-7172

FITTING-ELBOW-45

$70.99

$

Usually ships in 0 days

0

7:1

Exmark 237-81

O-RING

$3.49

$

In Stock, only 3 left!

0

8

Exmark 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

9

Exmark 145-2622

HOSE-SUCTION

$38.99

$

Usually ships in 0 days

0

10

Exmark 147-6681

HYDRAULIC HOSE ASM

$126.99

$

Usually ships in 0 days

0

11

Exmark 147-3714

RH FENDER ASM W/DECAL

$96.99

$

Usually ships in 0 days

0

11:2

Exmark 135-0328

DECAL-TORQUE, WHEEL NUT

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

13

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

17

Exmark 147-3305

FLAP-COVER, SIDE

$11.99

$

Usually ships in 0 days

0

18

Exmark 144-7689-01

BRACKET- HYDRAULIC TANK MOUNT

$118.99

$

Usually ships in 0 days

0

19

Exmark 108-1605

BUMPER-RECESS

$15.99

$

Usually ships in 3-6 days

0

20

Exmark 144-7290

HYDRAULIC HOSE ASM

$113.99

$

Usually ships in 0 days

0

21

Exmark 340-22

FITTING-TEE

$116.99

$

Usually ships in 3-6 days

0

21:1

Exmark 237-65

O-RING

$2.99

$

In Stock, Qty 12

0

21:2

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

22

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0
