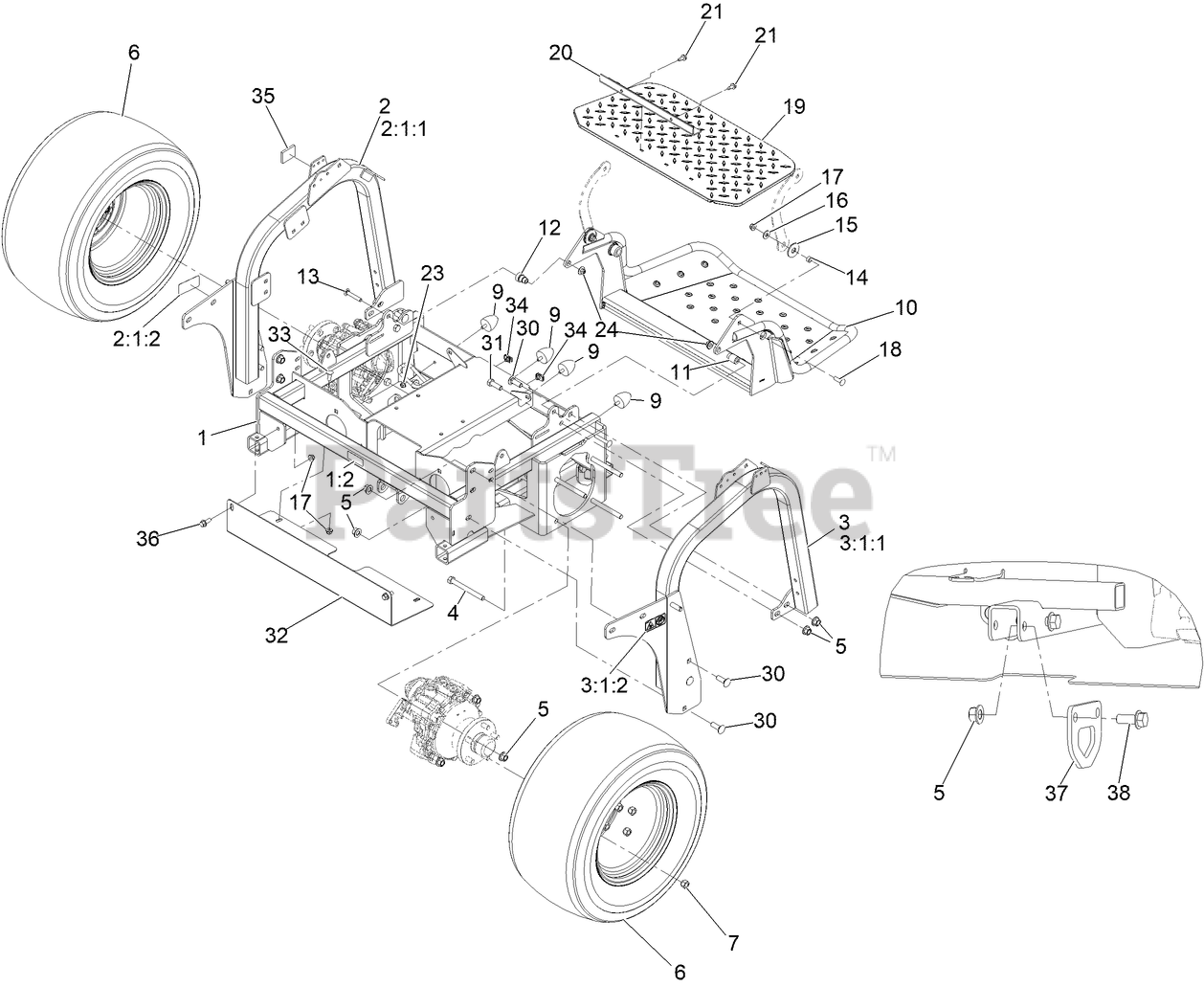

ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Main Frame Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 147-3709

Main Frame ASM W/Decal

$

$

Currently unavailable

1:2

Exmark 132-1316

DECAL-DANGER, BELT

$9.99

$

Usually ships in 0 days

0

2

Exmark 145-7448SP

RH FRAME ASM W/DECALS

$677.99

$

Usually ships in 0 days

0

2:1:1

Frame-RH

Note: Not serviced separately

$

$

Not available

2:1:2

Exmark 138-4107

DECAL-HAZARD, PINCH

$15.99

$

Usually ships in 0 days

0

3

Exmark 145-7449SP

LH FRAME ASM W/DECALS

$677.99

$

Usually ships in 0 days

0

3:1:1

Frame-LH

Note: Not serviced separately

$

$

Not available

3:1:2

Exmark 138-4107

DECAL-HAZARD, PINCH

$15.99

$

Usually ships in 0 days

0

4

Exmark 325-19

SCREW-HH

$8.99

$

In Stock, Qty 20+

0

5

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

6

Exmark 147-6601

WHEEL ASM, BLACK

$508.99

$

Usually ships in 0 days

0

7

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

9

Exmark 114-1926

BUMPER-RUBBER

$30.99

$

In Stock, Qty 20+

0

10

Exmark 120-8475-01SP

Platform ASM-Red

$

$

Currently unavailable

11

Exmark 144-7613

BUSHING-FLANGED

$38.99

$

Usually ships in 0 days

0

12

Exmark 147-3306

BUSHING-FLANGED

$70.99

$

Usually ships in 0 days

0

13

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 5

0

14

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

15

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.99

$

In Stock, Qty 20+

0

16

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 6

0

19

Exmark 126-7157

MAT-PLATFORM

$120.99

$

In Stock, only 1 left!

0

20

Exmark 114-1920-03

CLAMP-SHIELD

$45.99

$

Usually ships in 3-6 days

0

21

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 16

0

23

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

24

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3233-2

Screw-CARR

$8.49

$

Usually ships in 3-6 days

0

31

Exmark 325-6

SCREW-HH

$3.99

$

In Stock, Qty 5

0

32

Exmark 145-7408SP

Bracket-Shield, Belt

$

$

Currently unavailable

33

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

34

Exmark 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

35

Exmark 147-3336

SEAL-FOAM

$5.49

$

Usually ships in 0 days

0

36

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 9

0

37

Exmark 147-3750-03

PLATE-TIE DOWN

$15.99

$

Usually ships in 0 days

0

38

Exmark 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0
