ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Speed Control and Parking Brake Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

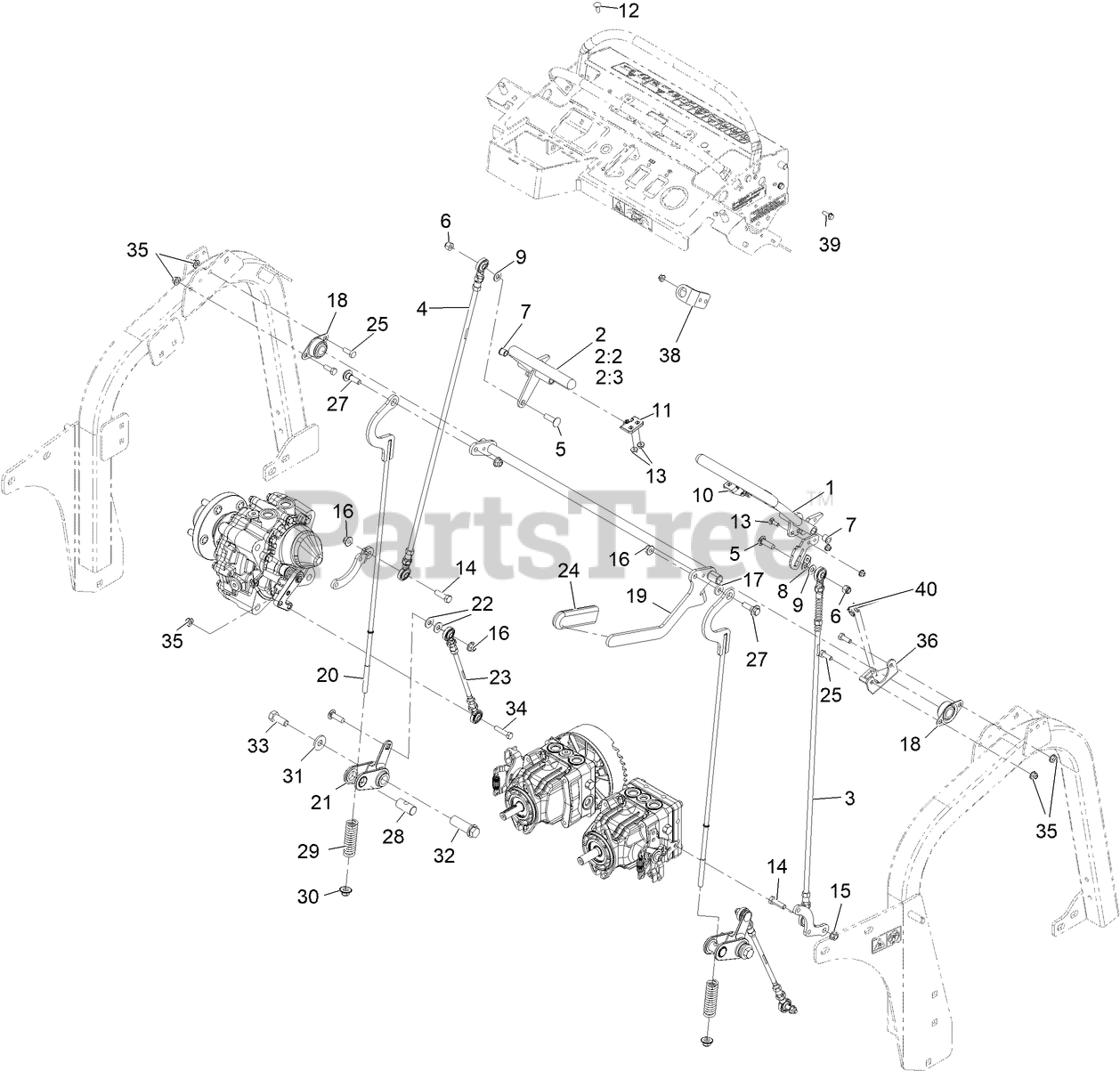

Speed Control and Parking Brake Assembly Parts Diagram

  • Title

1

Exmark 145-4244

LH CONTROL HANDLE ASM

$178.99

$

Usually ships in 0 days

0

2

Exmark 145-4243

RH CONTROL HANDLE ASM

$178.99

$

Usually ships in 0 days

0

2:2

Exmark 135-5988

Grommet-Rubber

$2.49

$

Usually ships in 3-6 days

0

2:3

Exmark 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 2 left!

0

3

Exmark 144-4582

LH CONTROL ROD ASM

$48.99

$

Usually ships in 0 days

0

4

Exmark 144-4581

RH CONTROL ROD ASM

$48.99

$

Usually ships in 0 days

0

5

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 6

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Exmark 103-9928

BEARING

$8.49

$

In Stock, only 3 left!

0

8

Exmark 132-7538

BRACKET-ADJUSTMENT, SPEED

$9.99

$

Usually ships in 3-6 days

0

9

Exmark 132-4593

WASHER

$1.49

$

Usually ships in 0 days

0

10

Exmark 120-3288

TAB-PIVOT, LH

$14.99

$

In Stock, only 3 left!

0

11

Exmark 120-3287

TAB-PIVOT, RH

$14.99

$

In Stock, only 3 left!

0

12

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

13

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

15

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 71-9310

SPACER

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 1-633102

BEARING-FLANGE, SIDE

$20.99

$

In Stock, only 3 left!

0

19

Exmark 144-4594-01

SHAFT-BRAKE, PARKING

$197.99

$

Usually ships in 0 days

0

20

Exmark 144-4590

LINK

$104.99

$

Usually ships in 0 days

0

21

Exmark 144-4587

BELLCRANK-BRAKE W/BUSHING

$48.99

$

Usually ships in 0 days

0

22

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

23

Exmark 144-4536

TURNBUCKLE ASM

$64.99

$

Usually ships in 0 days

0

24

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 8

0

25

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 5

0

28

Exmark 1-633144

PIN-TRUNION

$14.99

$

Usually ships in 3-6 days

0

29

Exmark 109-2230

SPRING-COMPRESSION

$10.99

$

Usually ships in 3-6 days

0

30

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

31

Exmark 1-513435

WASHER-SPRING

$5.99

$

In Stock, Qty 5

0

32

Exmark 109-5891

HUB-THREADED

$15.99

$

In Stock, only 1 left!

0

33

Exmark 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

34

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 9

0

35

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

36

Exmark 144-7542-03

BRACKET-SWITCH, BRAKE

$9.99

$

Usually ships in 0 days

0

38

Exmark 144-7543-03

BRAKET-SWITCH

$8.99

$

Usually ships in 0 days

0

39

Exmark 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

40

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
