ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Spreader Assembly 2 Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

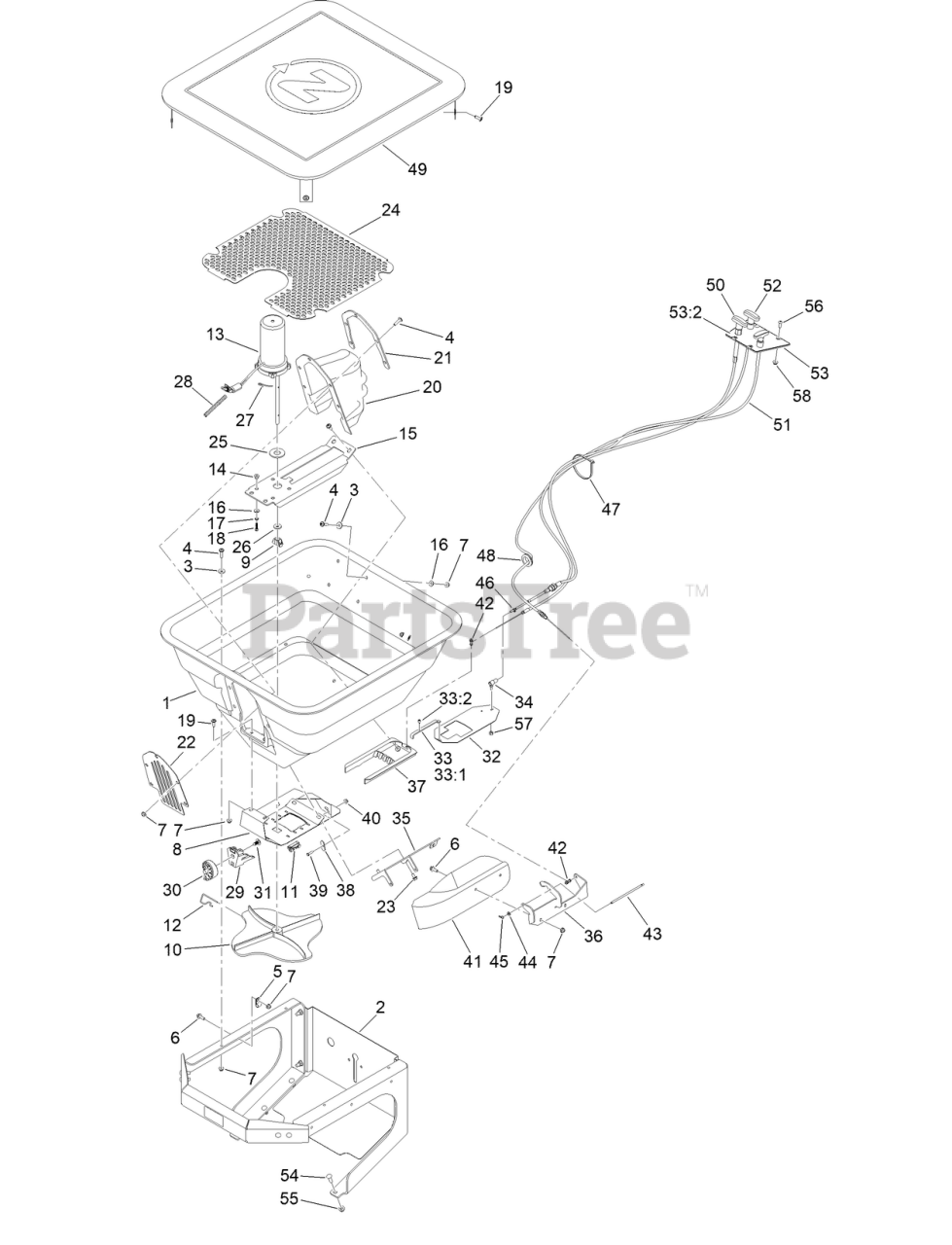

Spreader Assembly 2 Parts Diagram

  • Title

1

Exmark 142-4649

HOPPER -150 LB

$402.99

$

Usually ships in 0 days

0

2

Exmark 142-8004

Hopper Frame ASM

$

$

Currently unavailable

3

Exmark 135-6341

Washer

$1.99

$

Usually ships in 3-6 days

0

4

Exmark 135-7081

Screw-Hsbhf

$3.99

$

Usually ships in 3-6 days

0

5

Exmark 2412-89

CLAMP-R

$2.99

$

In Stock, only 2 left!

0

6

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 10

0

7

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

8

Exmark 142-8046

BASE PLATE, HOPPER, 140

$81.99

$

Usually ships in 0 days

0

9

Exmark 142-4042

HOPPER BOTTOM BEARING

$1.99

$

In Stock, only 4 left!

0

10

Exmark 142-3506

Spinner-Spreader

$47.99

$

In Stock, only 4 left!

0

11

Exmark 142-3316

GUIDE-RATE, GATE

$2.49

$

In Stock, Qty 20+

0

12

Exmark 142-3541

Clip-Spinner

$12.99

$

In Stock, Qty 6

0

13

Exmark 126-0379

MOTOR-SPREADER

$741.99

$

Usually ships in 3-6 days

0

14

Exmark 135-3989

SPACER-FLANGED

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 142-4686

BRACKET-MOUNT, MOTOR

$107.99

$

Usually ships in 3-6 days

0

16

Exmark 360-0140

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

17

Exmark 363-8641

WASHER-LOCK, INT

$0.99

$

In Stock, Qty 10

0

18

Exmark 739001

SCREW-SHWH

$1.49

$

In Stock, Qty 6

0

19

Exmark 135-7080

Screw-Hsbhf

$3.49

$

In Stock, Qty 8

0

20

Exmark 142-8924

COVER-MOTOR

$77.99

$

Usually ships in 3-6 days

0

21

Exmark 126-6334

FLANGE-COVER, MOTOR

$30.99

$

Usually ships in 3-6 days

0

22

Exmark 142-4721

COVER-FRONT, MOTOR

$42.99

$

Usually ships in 3-6 days

0

23

Exmark 142-5490

SCREW-HWH

$1.99

$

In Stock, only 1 left!

0

24

Exmark 142-4696

SCREEN-HOPPER, MEDIUM

$278.99

$

Usually ships in 3-6 days

0

25

Exmark 83-2400

SPACER

$7.99

$

In Stock, only 3 left!

0

26

Exmark 142-3665

WASHER-FELT

$2.49

$

Usually ships in 3-6 days

0

27

Exmark 142-3666

WIRE-AGITATOR

$4.99

$

In Stock, Qty 17

0

28

Exmark 142-6683

LOOM-SPLIT

$1.99

$

Usually ships in 0 days

0

29

Exmark 142-3319

MOUNT-DIAL

$3.49

$

In Stock, Qty 20+

0

30

Exmark 142-3359

Dial

$13.99

$

In Stock, Qty 17

0

31

Exmark 88-1080

Footpad Fastener

$9.99

$

In Stock, only 2 left!

0

32

Exmark 142-8051

SLIDE-DOOR, HOPPER

$23.99

$

Usually ships in 0 days

0

33

Exmark 126-2659

RATE GATE LINK ASM

$31.99

$

In Stock, only 3 left!

0

33:1

Exmark 126-0987

LINK-GATE, RATE

$37.99

$

Usually ships in 3-6 days

0

33:2

Exmark 126-4196

SCREW-SHOULDER, SLOTTED

$12.99

$

In Stock, only 1 left!

0

34

Exmark 135-5682

BALL JOINT-SS

$57.99

$

In Stock, only 2 left!

0

35

Exmark 142-8055

MOUNT-DEFLECTOR, SIDE

$44.99

$

Usually ships in 0 days

0

36

Exmark 142-8057

BRACKET-DEFLECTOR, SIDE

$61.99

$

Usually ships in 0 days

0

37

Exmark 142-3406

DIFFUSER

$9.49

$

In Stock, only 3 left!

0

38

Exmark 135-5569

RETAINER, CABLE

$2.49

$

In Stock, Qty 5

0

39

Exmark 135-6356

SCREW-HH

$1.99

$

In Stock, Qty 6

0

40

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, only 4 left!

0

41

Exmark 142-3619

Screw-HH 1/4-20 X 7/8 SS

$81.99

$

In Stock, Qty 7

0

42

Exmark 142-3886

WIRE-STOP

$4.99

$

In Stock, only 2 left!

0

43

Exmark 135-2558

PIN-DEFLECTOR SS

$30.99

$

Usually ships in 3-6 days

0

44

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

45

Exmark 126-1631

PIN-COTTER, HAIR

$2.99

$

Usually ships in 3-6 days

0

46

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

Usually ships in 3-6 days

0

47

Exmark 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

48

Exmark 240-5

GROMMET

$17.99

$

Usually ships in 3-6 days

0

49

Exmark 142-6183

COVER-HOPPER, CLEAR VINYL WINDOW

$126.99

$

Usually ships in 0 days

0

50

Exmark 147-6657

CABLE-PUSH/PULL

$124.99

$

Usually ships in 0 days

0

51

Exmark 147-3739

CABLE PUSH/PULL

$59.99

$

Usually ships in 0 days

0

52

Exmark 147-3738

CABLE PUSH/PULL

$59.99

$

Usually ships in 0 days

0

53

Exmark 147-6664

Spreader Control Panel ASM W/Decal

$

$

Currently unavailable

53:2

Exmark 146-1991

DECAL-SPREAD CABLE

$41.99

$

Usually ships in 0 days

0

54

Exmark HDW17294

Bolt,Carriage,5/16-18X1,ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0

55

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

56

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

57

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, only 4 left!

0

58

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
