ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Tensioner Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

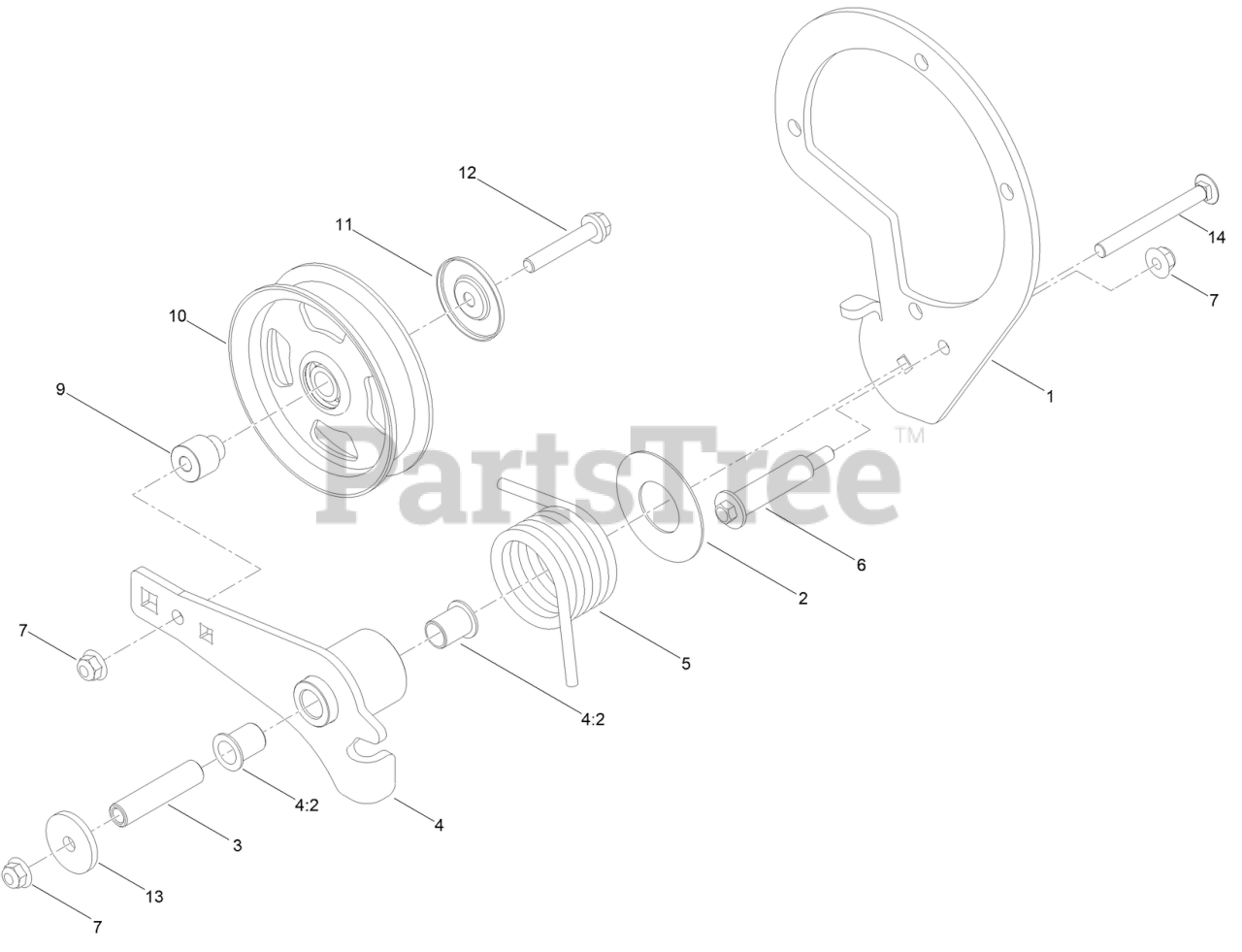

Tensioner Assembly Parts Diagram

  • Title

1

Exmark 144-4612-03

PLATE-MOUNT, TENSIONER

$64.99

$

Usually ships in 0 days

0

2

Exmark 108-1926

WASHER

$6.99

$

Usually ships in 3-6 days

0

3

Exmark 144-4608

SPACER

$62.99

$

Usually ships in 0 days

0

4

Exmark 144-4611

IDLER ARM ASM

$104.99

$

Usually ships in 0 days

0

4:2

Exmark 138-2573

BUSHING-FLANGE

$2.99

$

In Stock, only 2 left!

0

5

Exmark 108-1921

SPRING-TORSION

$32.99

$

Usually ships in 3-6 days

0

6

Exmark 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 126-7684

BUSHING-IDLER

$3.49

$

In Stock, only 3 left!

0

10

Exmark 136-5405

PULLEY-IDLER, FLAT

$51.99

$

In Stock, only 3 left!

0

11

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

12

Exmark 100-2592

SCREW-HHF

$11.99

$

Usually ships in 3-6 days

0

13

Exmark 5-1720

WASHER

$3.49

$

Usually ships in 3-6 days

0

14

Exmark 3231-24

SCREW-CARR

$15.99

$

Usually ships in 3-6 days

0
