ZA5850 - Exmark 50" Z-Aerate Stand-On Aerator, Kohler CH740 (SN: 416150475 - 417930745) (Rev A) (2024) Top Cover Assembly Parts Diagram

50" Z-Aerate Stand-On Aerator, Kohler CH740

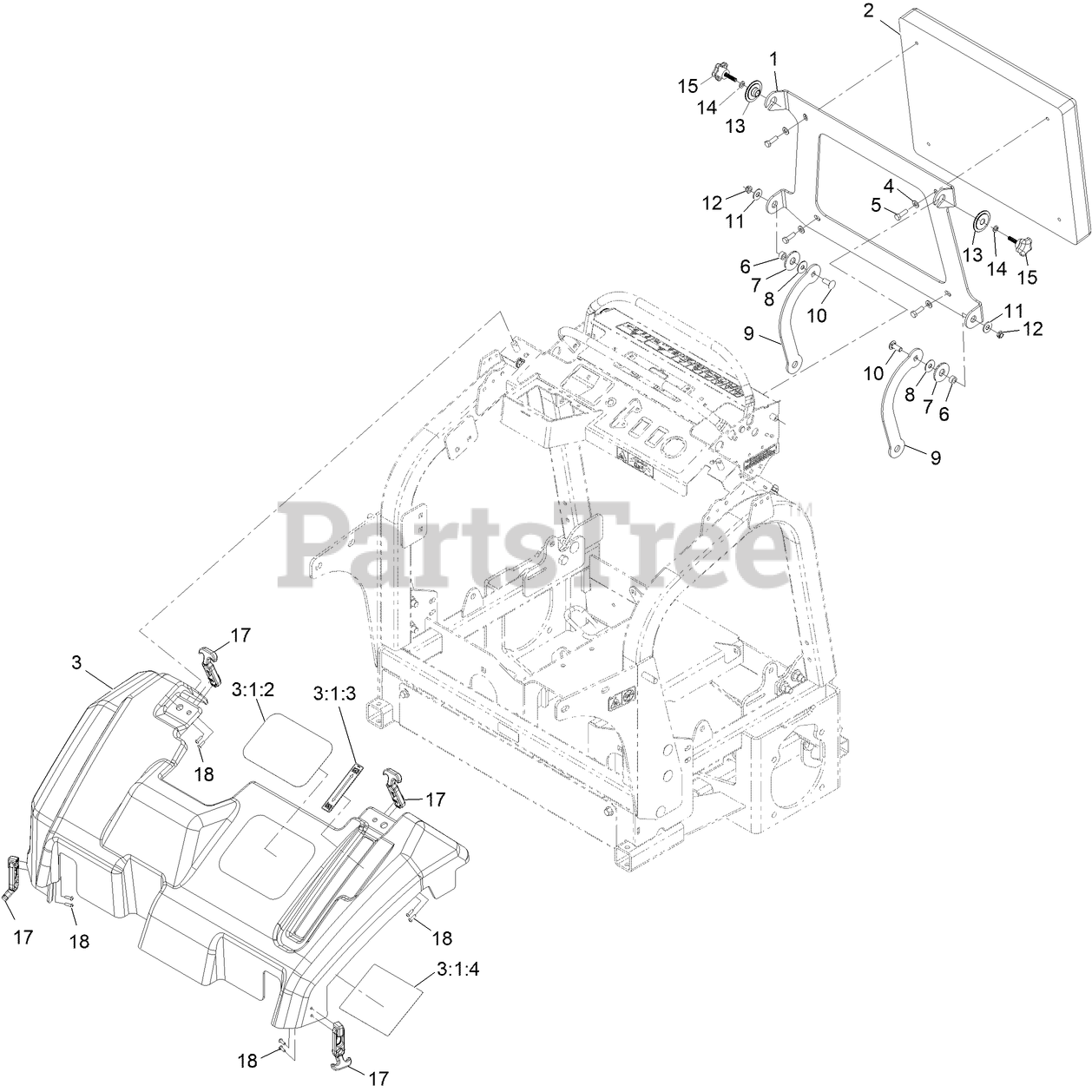

Top Cover Assembly Parts Diagram

  • Title

1

Exmark 120-8499-03

HINGE-PAD

$173.99

$

Usually ships in 3-6 days

0

2

Exmark 117-9739

PAD-CUSHION

$378.99

$

Usually ships in 3-6 days

0

3

Exmark 147-3704SP

COVER TOP ASM W/DECALS

$707.99

$

Usually ships in 0 days

0

3:1:2

Exmark 146-2015

DECAL-Z TURF EQUIPMENT

$48.99

$

Usually ships in 0 days

0

3:1:3

Exmark 139-6224

DECAL-BRAKE, PARKING

$13.99

$

Usually ships in 0 days

0

3:1:4

Exmark 146-1976

DECAL-SERVICE AID

$41.99

$

Usually ships in 0 days

0

4

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Exmark 121-7999

SCREW-HH

$1.49

$

In Stock, Qty 8

0

6

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

7

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.99

$

In Stock, Qty 20+

0

8

Exmark 119-4150

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

9

Exmark 144-4470-03

LINK-PLATFORM

$17.99

$

Usually ships in 0 days

0

10

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Exmark 3296-59

121-4600
(Superseded to 121-4600)

Note: Nut-Nyloc 3/8-16 Thin

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-2886

SLIDE-BUSHING

$6.99

$

In Stock, Qty 15

0

14

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

15

Exmark 139-2401

KNOB

$3.99

$

Usually ships in 3-6 days

0

17

Exmark 103-4080

LATCH-RUBBER

$37.99

$

In Stock, Qty 8

0

18

Exmark 3274-39

SCREW-HSBH

$6.49

$

In Stock, only 2 left!

0
