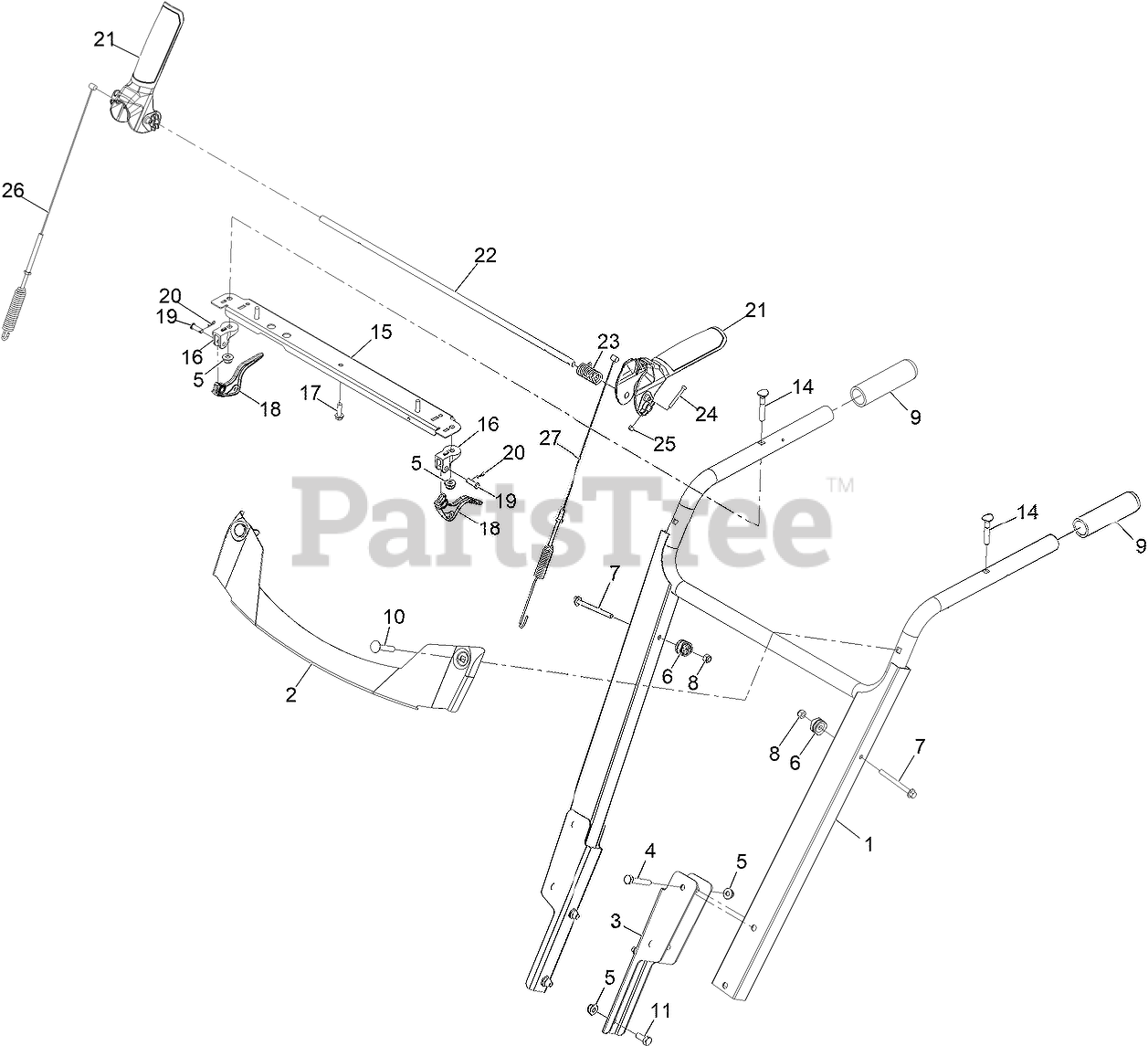

ZB4636 - Exmark 36" Z-Sweep Power Broom, Kohler CH270 (SN: 411294212 - 413950473) (Rev A) (2022) Handle Assembly Parts Diagram

36" Z-Sweep Power Broom, Kohler CH270

Handle Assembly Parts Diagram

  • Title

1

Exmark 137-6224-01

HANDLE ASM HD, WELDED

$172.99

$

Usually ships in 3-6 days

0

2

Exmark 137-6233-03

METAL TRIM, HD

$

$

Currently unavailable

3

Exmark 137-6221-03

BRACKET-HANDLE, LOWER

$20.99

$

Usually ships in 3-6 days

0

4

Exmark 120-9686

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 138-8401

NUT-HF

$1.49

$

In Stock, Qty 8

0

6

Exmark 106-4509

CLAMP-CABLE

$6.99

$

In Stock, only 3 left!

0

7

Exmark 138-3653

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 6

0

9

Exmark 120-1333

GRIP-HANDLE

$9.99

$

In Stock, only 4 left!

0

10

Exmark 138-8402

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 137-3107

SCREW-HANDLE

$1.99

$

In Stock, Qty 5

0

15

Exmark 145-4075-03

BRACE-CONSOLE

$21.99

$

Usually ships in 3-6 days

0

16

Exmark 105-9980

MOUNT-LEVER, CLUTCH

$8.99

$

Usually ships in 3-6 days

0

17

Exmark 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 106-4505

LEVER-CLUTCH

$9.49

$

In Stock, only 2 left!

0

19

Exmark 1-808265

PIN-CLEVIS

$3.99

$

In Stock, only 2 left!

0

20

Exmark 108-2992

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

21

Exmark 137-6171

LEVER-CONTROL

$13.99

$

In Stock, Qty 5

0

22

Exmark 137-6182

ROD-LOCKOUT

$20.99

$

Usually ships in 3-6 days

0

23

Exmark 138-0678

SPRING-TORSION, HANDLE RETURN

$3.49

$

Usually ships in 3-6 days

0

24

Exmark 145-0660

SCREW-HSH M4-0.7 X 36MM

$0.99

$

Usually ships in 3-6 days

0

25

Exmark 131-8641

NUT-HEX NYL INS M4-0.7

$

$

Currently unavailable

26

Exmark 138-3661

CABLE-AUGER
(Superseded to 161-0973)

$28.99

$

In Stock, only 1 left!

0

27

Exmark 138-0728

CABLE-TRACTION

$

$

Not available

99

Exmark 130-8332

ADHESIVE-LOCTITE 608

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days
