ZD3020 - Exmark 20" Z-Seed Slicer Seeder (SN: 411294212 - 413950473) (Rev A) (2022) Main Frame Assembly Parts Diagram

20" Z-Seed Slicer Seeder

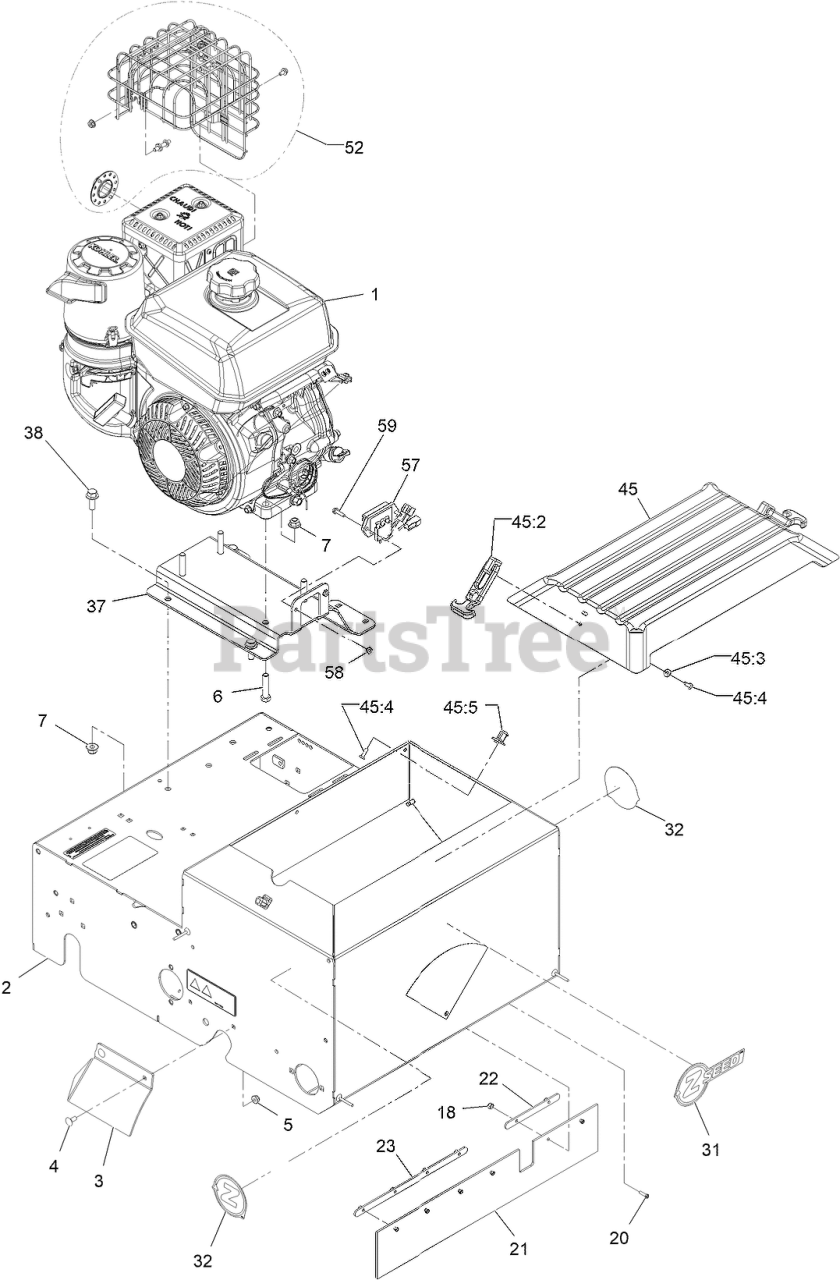

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-4829

Frame-Service ASM

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Exmark 121-1896-03

Guard-RH

$35.99

$

Usually ships in 3-6 days

0

3

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

18

Exmark 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 121-1990

GUARD-DUST

$36.99

$

Usually ships in 3-6 days

0

21

Exmark 121-1991

PLATE-RETAINER

$16.99

$

Usually ships in 3-6 days

0

22

Exmark 121-1992

PLATE-RETAINER

$21.99

$

Usually ships in 3-6 days

0

23

Exmark 142-5427

DECAL-Z-SEED LOGO

$23.99

$

Usually ships in 3-6 days

0

31

Exmark 142-3051

Decal-Z-Logo

$4.99

$

Usually ships in 3-6 days

0

32

Exmark 135-0690-03

Plate-Engine

$

$

Currently unavailable

37

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 15

0

38

Exmark 126-1665

SEEDER COVER KIT

$124.99

$

Usually ships in 3-6 days

0

45

Exmark 103-4080

LATCH-RUBBER

$36.99

$

In Stock, Qty 10

0

45:2

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45:3

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

45:4

Exmark 103-4081

LATCH-KEEPER

$15.99

$

Usually ships in 3-6 days

0

45:5

Exmark 135-7340

KIT-CH395 MUFFLER GUARD

$86.99

$

Usually ships in 3-6 days

0

52

Exmark 135-3924

Regulator

$110.99

$

Usually ships in 3-6 days

0

57

Exmark 32149-7

KEPS Nut

$0.99

$

In Stock, Qty 20+

0

58

Exmark 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

59

Exmark 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0
