ZD3020 - Exmark 20" Z-Seed Slicer Seeder (SN: 413950474 - 416150474) (Rev A) (2023) Cutting Wheel Assembly Parts Diagram

20" Z-Seed Slicer Seeder

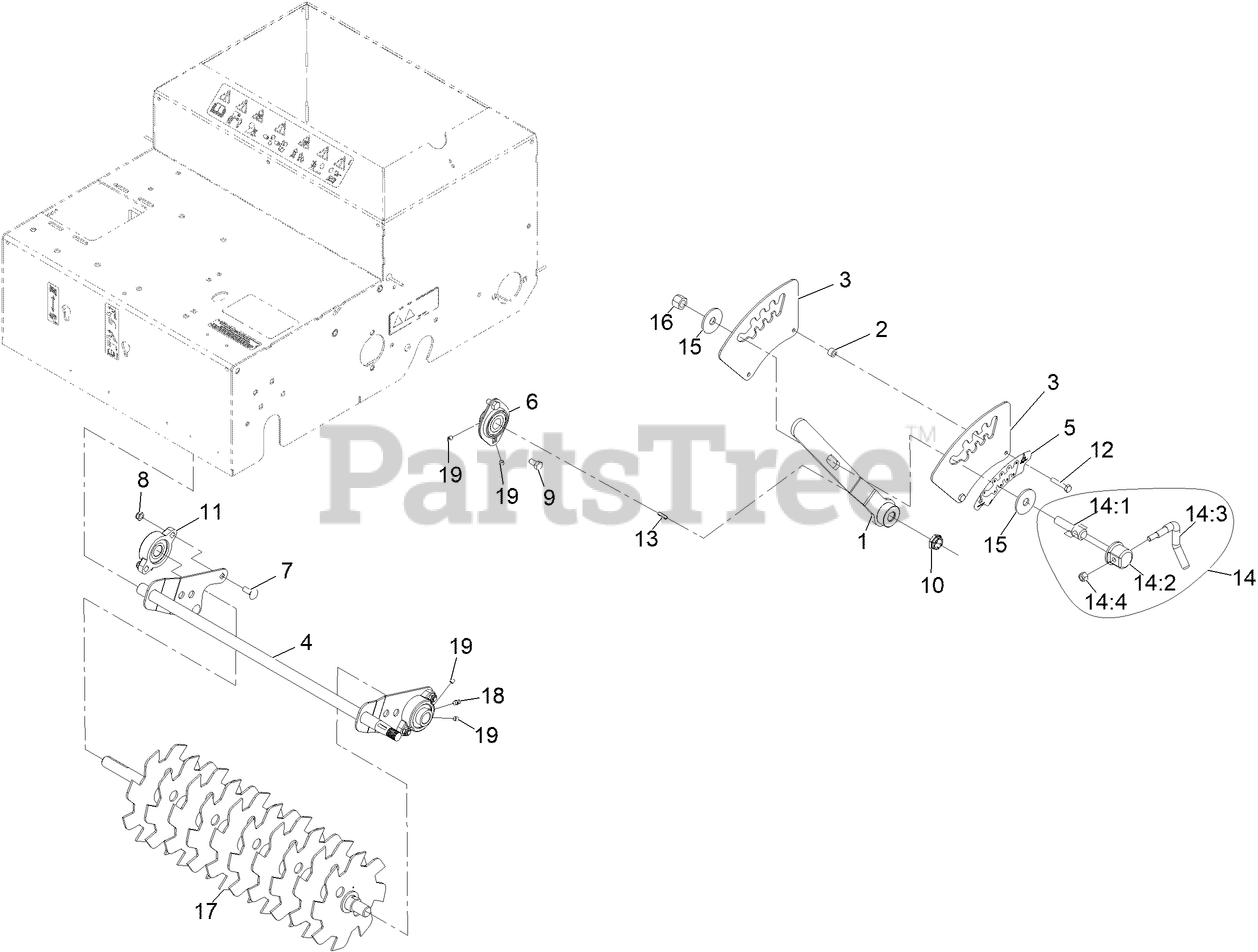

Cutting Wheel Assembly Parts Diagram

  • Title

1

Exmark 116-9932-03

HANDLE-HEIGHT

$139.99

$

Usually ships in 3-6 days

0

2

Exmark 98-4799

SPACER

$8.49

$

In Stock, Qty 9

0

3

Exmark 116-9928

PLATE-HEIGHT

$23.99

$

Usually ships in 3-6 days

0

4

Exmark 126-0010-03

PIVOT-HEIGHT

$132.99

$

Usually ships in 3-6 days

0

5

Exmark 126-2446

DECAL-CUT DEPTH, SLICER/S

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 121-1961

BEARING

$42.99

$

In Stock, only 4 left!

0

7

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

10

Exmark 121-3611

NUT-HEX, FLEXTOP

$6.49

$

In Stock, only 2 left!

0

11

Exmark 116-9992

BEARING-FLANGE

$47.99

$

In Stock, only 2 left!

0

12

Exmark 142-4837

Screw-HH

$3.49

$

Usually ships in 3-6 days

0

13

Exmark 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 16

0

14

Exmark 107-1664

LEVER ASM

$82.99

$

In Stock, only 2 left!

0

14:1

Exmark 106-3239

SCREW-LOCK

$56.99

$

Usually ships in 3-6 days

0

14:2

Exmark 107-1644

CAP-LOCK

$44.99

$

Usually ships in 3-6 days

0

14:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$82.99

$

In Stock, only 2 left!

0

14:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Exmark 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 18

0

16

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 126-0034

SLICER SHAFT ASM

$632.99

$

Usually ships in 3-6 days

0

18

Exmark 302-19

FITTING-GREASE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3245-35

SCREW-SET, HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 8

0
