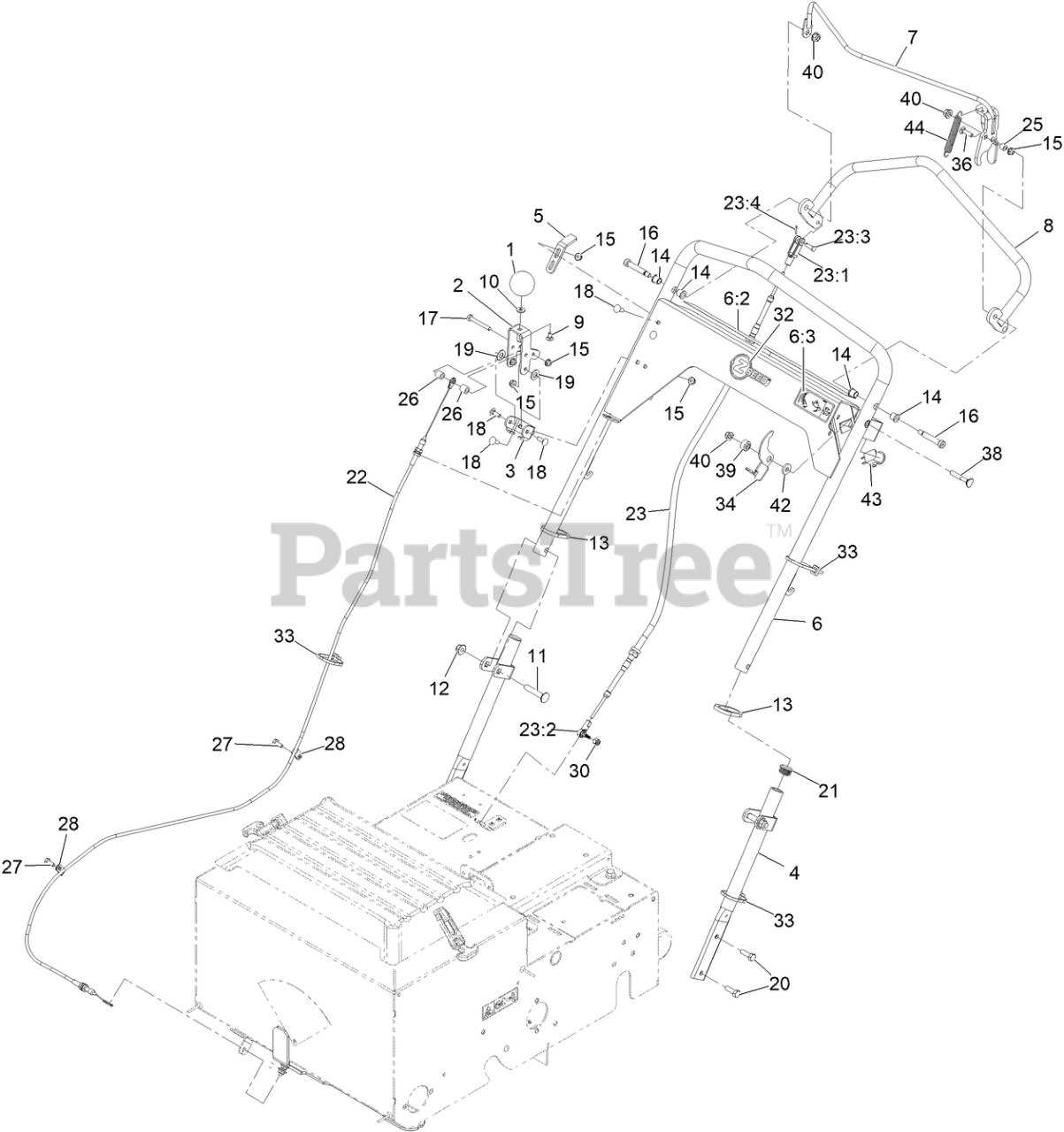

ZD3020 - Exmark 20" Z-Seed Slicer Seeder (SN: 413950474 - 416150474) (Rev A) (2023) Handle Assembly Parts Diagram

20" Z-Seed Slicer Seeder

Handle Assembly Parts Diagram

  • Title

1

Exmark 121-1877

KNOB-RATE, FLOW

$10.99

$

Usually ships in 3-6 days

0

2

Exmark 121-1878

LEVER-ADJUST, FLOW

$30.99

$

Usually ships in 3-6 days

0

3

Exmark 121-1879

BRACKET-ADJUST, FLOW

$20.99

$

Usually ships in 3-6 days

0

4

Exmark 121-1893-03

HANDLE-LOWER

$76.99

$

Usually ships in 3-6 days

0

5

Exmark 121-1928

BRACKET-ADJUST, DRIVE

$16.99

$

Usually ships in 3-6 days

0

6

Exmark 116-9735

HANDLE

$225.99

$

Usually ships in 3-6 days

0

6:2

Exmark 116-8648

DECAL-CONTROL PANEL, SEED

$15.99

$

Usually ships in 3-6 days

0

6:3

Exmark 116-8536

DECAL-SAFETY LATCH

$4.49

$

Usually ships in 3-6 days

0

7

Exmark 126-0509-01

BAIL-CLUTCH

$71.99

$

Usually ships in 3-6 days

0

8

Exmark 121-1948-01

DRIVE HANDLE WA

$122.99

$

Usually ships in 3-6 days

0

9

Exmark 3229-10

SCREW-CARR

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 7

0

10

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

11

Exmark 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 121-6202

RING-HANDLE LOCK

$8.49

$

Usually ships in 3-6 days

0

14

Exmark 103-9928

BEARING

$8.49

$

In Stock, only 3 left!

0

15

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 126-0277

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

19

Exmark 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

20

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 121-4870

PLUG

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 126-0042

CABLE-FLOW, SEED

$46.99

$

Usually ships in 3-6 days

0

23

Exmark 116-8252

CABLE-PUSH PULL

$151.99

$

Usually ships in 3-6 days

0

23:1

Exmark 121-2000

CLEVIS

$30.99

$

Usually ships in 3-6 days

0

23:2

Exmark 117-9720

Ball Joint

$19.99

$

In Stock, only 2 left!

0

23:3

Exmark 283-67

Pin-Clevis

$2.99

$

In Stock, only 1 left!

0

23:4

Exmark 3272-5

PIN-COTTER

$1.99

$

Usually ships in 3-6 days

0

25

Exmark 66-8010

SPACER

$4.99

$

In Stock, Qty 11

0

26

Exmark 22-7810

SPACER

$19.99

$

Usually ships in 3-6 days

0

27

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 2412-149

CLAMP-R

$3.99

$

Usually ships in 3-6 days

0

30

Exmark 3296-3

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 142-5428

DECAL-Z-SEED LOGO

$20.99

$

Usually ships in 3-6 days

0

33

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

34

Exmark 126-0205

LATCH-BAIL

$13.99

$

Usually ships in 3-6 days

0

36

Exmark 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 16

0

38

Exmark 112-8876

92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

39

Exmark 116-2690

BUSHING-STEPPED

$14.99

$

In Stock, only 4 left!

0

40

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 4 left!

0

42

Exmark 88-7200

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

43

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 6

0

44

Exmark 95-3805

SPRING

$15.99

$

In Stock, only 2 left!

0
