ZF 2100DKU (7084410) - Snapper Zero-Turn Mower, 21hp Kubota Fender Assembly Parts Diagram

Zero-Turn Mower, 21hp Kubota

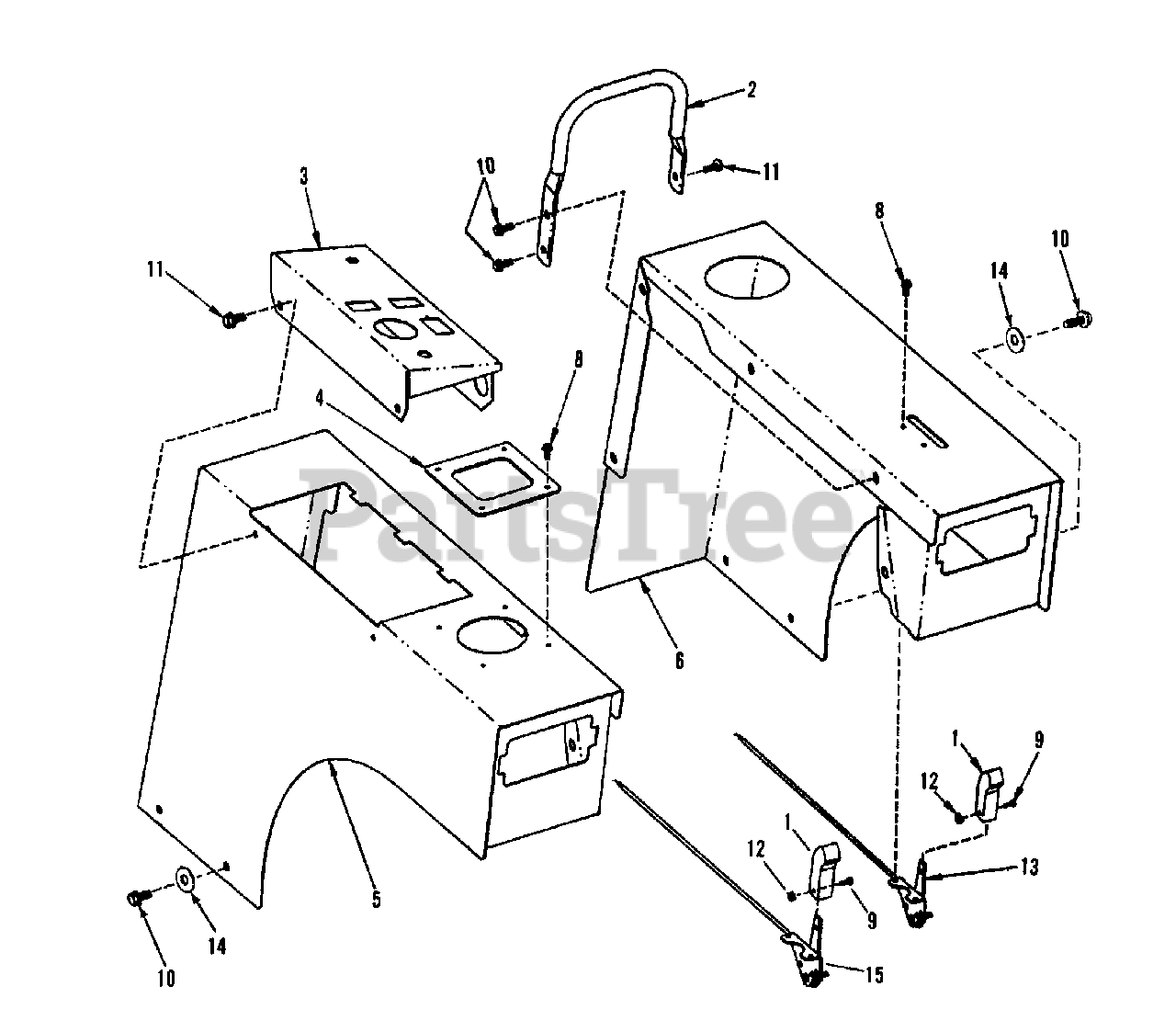

Fender Assembly Parts Diagram

  • Title

1

Snapper Pro 7023655

LEVER, Throttle Control
(Superseded to 7023655YP)

$

$

Not available

2

Snapper Pro 7035548

HANDLE, 5/8" Tubing
(Superseded to 7035548YP)

$

$

Not available

3

Snapper Pro 7041909

PANEL, Instrument
(Superseded to 7041909YP)

$71.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7035940

PLATE, Joystick Control
(Superseded to 7035940YP)

$

$

Not available

5

Snapper Pro 7042642

FENDER, Right Hand

$

$

Not available

6

Snapper Pro 7044933

FENDER, Left Hand (21 HP Diesel Engine)

$

$

Not available

6

Snapper Pro 7042643

FENDER, Left Hand (23 HP Gas Engine)
(Superseded to 7042643YP)

$419.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7024649

WIRE Tie, 11"
(Superseded to 7024649YP)

Note: (Not Shown)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)

$3.99

$

In Stock, Qty 20+

0

9

Snapper Pro 7091017

SCREW, #8-32 x 3/8" Machine
(Superseded to 7091017YP)

$4.49

$

In Stock, only 4 left!

0

10

Snapper Pro 7091523

SCREW, 5/16-18 x 5/8" Hex Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 1 left!

0

11

Snapper Pro 7091787

SCREW, 1/4-20 x 5/8" Hex Flange Lock
(Superseded to 7091787SM)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, only 2 left!

0

13

Snapper Pro 7045213

CONTROL, Engine Speed 62.0" (21 HP Diesel Engine)
(Superseded to 7045213YP)

$62.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7071988

CONTROL, Engine Speed 31.0" (23 HP Gas Engine)

$

$

Not available

14

Snapper Pro 7091130

WASHER, 5/16 I.D. Flat
(Superseded to 7091130SM)

$3.99

$

In Stock, only 2 left!

0

15

Snapper Pro 7072054

CONTROL, Choke 62.87" (23 HP Gas Engine)

$

$

Not available

Snapper Pro 7071989

CABLE, Engine Speed 34.5" (23 HP Gas Engine)(Not shown)
(Superseded to 7071989YP)

$36.99

$

Usually ships in 2-12 days

0
