ZF 2101DKU (84575) - Snapper Zero-Turn Mower, 21hp Kubota Parking Brake Assembly Parts Diagram

Zero-Turn Mower, 21hp Kubota

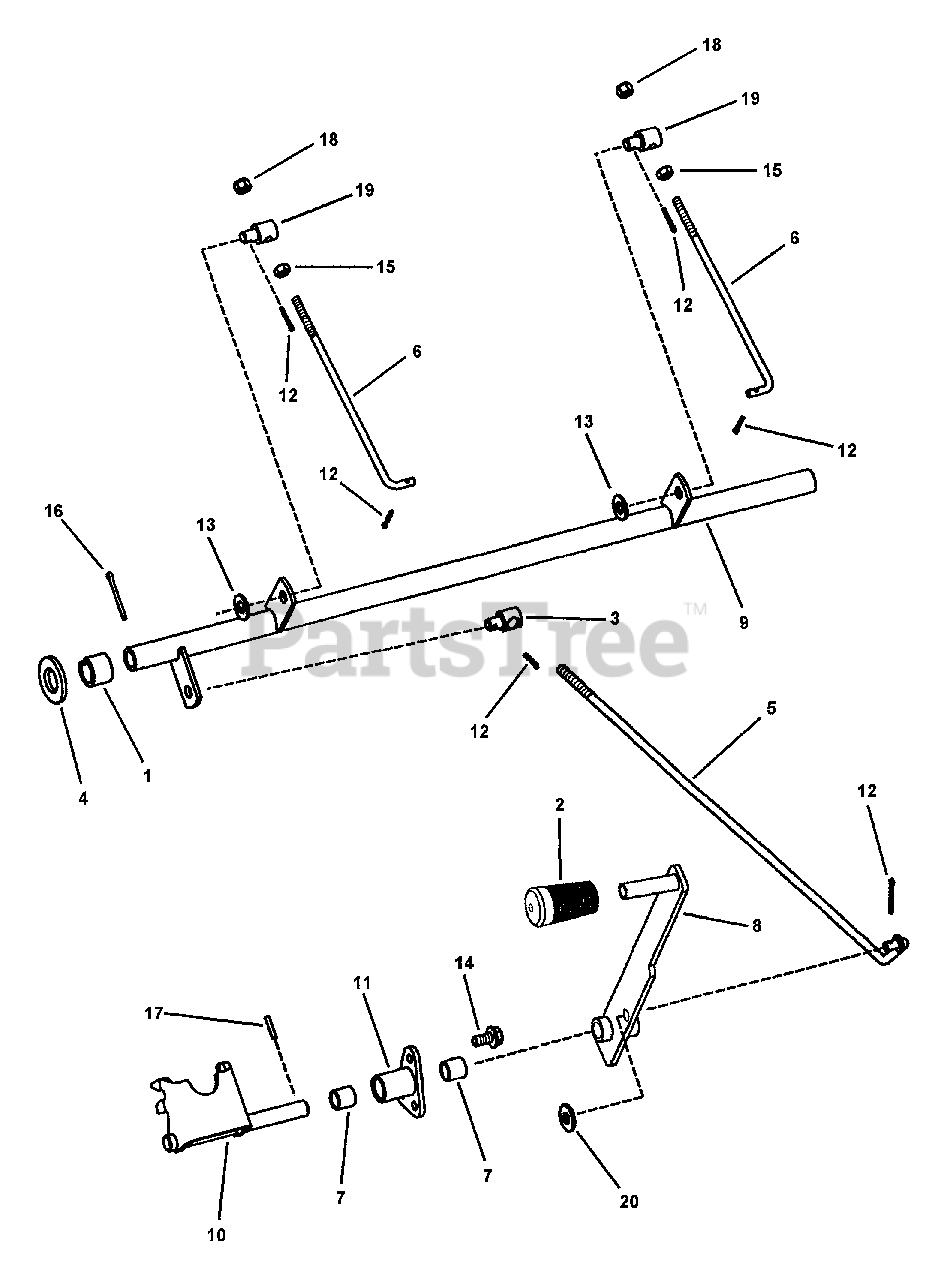

Parking Brake Assembly Parts Diagram

  • Title

1

Snapper 7012068

RING, Rear Lift Arm (Blue)
(Superseded to 7012068YP)

$5.99

$

In Stock, only 1 left!

0

2

Snapper 7072222

GRIP, Round Bar (23 HP Gas Engine)
(Superseded to 7072222YP)

$8.99

$

Usually ships in 2-12 days

0

3

Snapper 7046451

SWIVEL, Adjustable
(Superseded to 7046451YP)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 7034453

WASHER, 3/4 I.D. x 1-1/2 O.D. x 9/64" Flat
(Superseded to 7034453YP)

$6.99

$

In Stock, only 2 left!

0

5

Snapper 7046456

ARM, Brake Lift
(Superseded to 7046456YP)

$15.99

$

Usually ships in 2-12 days

0

6

Snapper 7035888

ROD, Hydrostatic Brake
(Superseded to 7035888YP)

$

$

Not available

7

Snapper 7036399

SLEEVE Bearing, 1/2 I.D. x 5/8
(Superseded to 7036399YP)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7058729

WELDMENT, Parking Brake Arm
(Superseded to 7058729YP)

$76.99

$

Usually ships in 2-12 days

0

9

Snapper 7042635

WELDMENT, Brake Shaft
(Superseded to 7042635YP)

$163.99

$

Usually ships in 2-12 days

0

10

Snapper 7042647

WELDMENT, Joystick Lockout Bracket
(Superseded to 7042647YP)

$132.99

$

Usually ships in 2-12 days

0

11

Snapper 7042648

WELDMENT, Support Plate
(Superseded to 7042648YP)

$33.99

$

Usually ships in 2-12 days

0

12

Snapper 7091597

COTTER PIN, 3/32 x 3/4"
(Superseded to 703312)

$4.49

$

In Stock, Qty 5

0

13

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Face Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 14

0

15

Snapper 7090095

NUT, 1/4-28 Hex, Grade 5 or B
(Superseded to 7090095FS)

Note: Was 91605

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7091809

COTTER PIN, 1/8 x 1-1/4
(Superseded to 7091809YP)

$4.49

$

In Stock, only 2 left!

0

17

Snapper 7014001

PIN, Roll 1/8 x 3/4"
(Superseded to 7014001SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7091812

NUT, 1/4-28 Hex Nyloc
(Superseded to 7091812YP)

$3.49

$

In Stock, Qty 13

0

19

Snapper 7091832

SWIVEL, 1/4" Smooth
(Superseded to 7091832YP)

$28.99

$

Usually ships in 2-12 days

0

20

Snapper 5025337

WASHER, 3/8" I.D. x 7/8" O.D. Flat
(Superseded to 5025337FS)

$4.49

$

In Stock, only 2 left!

0
