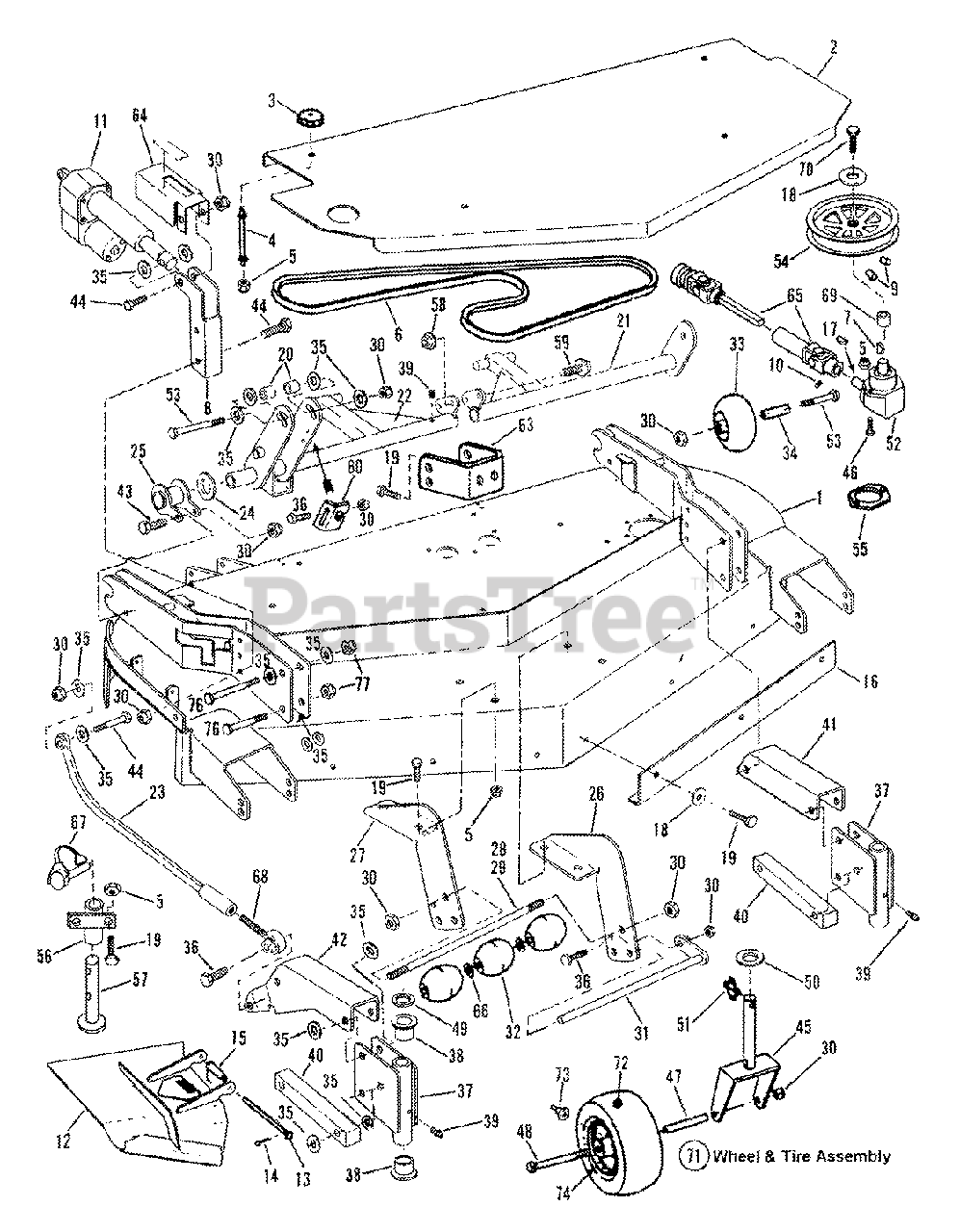

ZF 2200K (7082371) - Snapper Zero-Turn Mower, 22hp 61" Mower Deck Assembly Parts Diagram

Zero-Turn Mower, 22hp

61" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper Pro 7042651

WELDMENT, 61" Deck-Adjustable Height
(Superseded to 7042651YP)

$3077.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7046729

COVER, 61" Deck

$

$

Currently unavailable

3

Snapper Pro 7023735

KNOB

$7.49

$

In Stock, Qty 20+

0

4

Snapper Pro 7029303

STANDOFF, 3-1/2"
(Superseded to 7029303YP)

$51.99

$

In Stock, only 2 left!

0

5

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

6

Snapper Pro 7035542

V-Belt, 61"(134.5") HB
(Superseded to 7035542YP)

$92.99

$

In Stock, only 4 left!

0

7

Snapper Pro 7010008

KEY, 5/32 x 5/8 Woodruff
(Superseded to 7010008YP)

Note: Was 91823

$4.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 7036447

MOUNT, Motor (Front)
(Superseded to 7036447YP)

$39.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7091802

SCREW, 5/16-18 x 5/8" Set Yellow Zinc
(Superseded to 1930540SM)

$4.99

$

In Stock, Qty 6

0

10

Snapper Pro 7090132

SET SCREW, 3/8-16 x 3/8"
(Superseded to 7090132YP)

$3.49

$

In Stock, Qty 8

0

11

Snapper Pro 7036448

SCREWJACK, Warner Electric 1000 lbs.

$1025.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7058291

DEFLECTOR, Chute 61" (Weldment)
(Superseded to 7058291YP)

Note: Was 42656

$453.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7029277

PIN, Chute Hinge
(Superseded to 7029277YP)

$41.99

$

In Stock, only 1 left!

0

14

Snapper Pro 7091313

PIN, 3/32 x 1" Cotter

$

$

Not available

15

Snapper Pro 7027950

SPRING, Chute
(Superseded to 7027950YP)

$13.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7036445

BAFFLE, Front
(Superseded to 7036445YP)

$56.99

$

In Stock, only 1 left!

0

17

Snapper Pro 7010211

KEY. #9 Woodruff
(Superseded to 7010211YP)

$3.99

$

In Stock, Qty 20+

0

18

Snapper Pro 7091331

WASHER, 13/32 x 1-1/2" Flat

$

$

Not available

19

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

20

Snapper Pro 7036453

SPACER, Motor, Rear
(Superseded to 7036453YP)

$33.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7042662

LINK, Weldment L.H.
(Superseded to 7042662YP)

$473.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 7042661

LINK, Weldment R.H.
(Superseded to 7042661YP)

$

$

Not available

23

Snapper Pro 7053437

LINK, Height of Cut
(Superseded to 7053437YP)

Note: Was 42659

$

$

Not available

24

Snapper Pro 7036452

SPACER, Tube
(Superseded to 7036452YP)

$13.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 7042660

HOLDER, Pivot
(Superseded to 7042660YP)

$157.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 7036459

MOUNT, Roller L.H.
(Superseded to 7036459YP)

$72.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 7036458

MOUNT, Roller R.H.
(Superseded to 7036458YP)

$67.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 7036460

TUBE, Roller

$

$

Not available

29

Snapper Pro 7036461

PIN, Roller
(Superseded to 7036461YP)

$9.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 4 left!

0

31

Snapper Pro 7027327

ASSEMBLY, Shaft
(Superseded to 7027327YP)

$85.99

$

In Stock, only 1 left!

0

32

Snapper Pro 7073142

ROLLER, Low Density Polyethylene
(Superseded to 7073142YP)

Note: Was 79226

$17.99

$

In Stock, only 1 left!

0

33

Snapper Pro 7029264

WHEEL, Gage
(Superseded to 7029264YP)

$14.99

$

In Stock, Qty 20+

0

34

Snapper Pro 7036456

SPACER, Gage Wheel

$

$

Not available

35

Snapper Pro 7091587

WASHER, 1/2" Flat

$

$

Not available

36

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 7042652

TUBE, Caster (Weldment)
(Superseded to 7042652YP)

$295.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

39

Snapper Pro 7076998

FITTING, Lube 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 8

0

40

Snapper Pro 7036444

ARM, Lower Caster
(Superseded to 7036444YP)

$90.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 7054523

ARM, Caster Support L.H.

Note: Was 42655

$

$

Not available

42

Snapper Pro 7054522

ARM, Caster Support R.H.

Note: Was 42653

$

$

Not available

43

Snapper Pro 7029355

BOLT, 1/2-13 x 3-3/4", Hex Head, Grade 5
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, Qty 6

0

45

Snapper Pro 7054464

WELDMENT, Caster
(Superseded to 7054464BMYP)

Note: Was 42780

$235.99

$

In Stock, only 2 left!

0

46

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

47

Snapper Pro 7022151

SLEEVE, Axle
(Superseded to 7022151YP)

$46.99

$

In Stock, only 2 left!

0

48

Snapper Pro 5025017X44

BOLT, 1/2-13 X 5-1/2" GD5 YZ
(Superseded to 5025017X44SM)

$8.49

$

In Stock, only 2 left!

0

49

Snapper Pro 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

50

Snapper Pro 7023747

BUSHING, Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 17

0

51

Snapper Pro 7017711

PIN, 7/16" HD Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

52

Snapper Pro 7058342

GEARBOX, Right Angle
(Superseded to 7058342YP)

Note: Was 36451

$563.99

$

In Stock, only 2 left!

0

53

Snapper Pro 5025017X40

BOLT, 1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 20+

0

54

Snapper Pro 7074466

PULLEY, Cast 5.45 O.D.
(Superseded to 7074466YP)

Note: Was 35788

$

$

Not available

55

Snapper Pro 7036455

SHIM, Gearbox
(Superseded to 7036455YP)

$42.99

$

Usually ships in 2-12 days

0

56

Snapper Pro 7042657

TUBE, Jack stand (Weldment)
(Superseded to 7042657YP)

$84.99

$

Usually ships in 2-12 days

0

57

Snapper Pro 7042658

WELDMENT, Jack stand

$43.99

$

Usually ships in 2-12 days

0

58

Snapper Pro 7091544

NUT, 1/2-13 Hex Flange Lock, Grade 5
(Superseded to 7091544SM)

$3.49

$

Usually ships in 2-12 days

0

59

Snapper Pro 7091323

BOLT, 1/2-13 x 1-1/4" Hex Flange Lock, Grade 5

$7.99

$

Usually ships in 2-12 days

0

60

Snapper Pro 7036450

BRACKET, Strain Relief

$11.99

$

Usually ships in 2-12 days

0

?61

Snapper Pro 7035779

RELIEF, Strain
(Superseded to 7035779YP)

Note: (See "73" Mower Deck Assembly")

$4.49

$

Usually ships in 2-12 days

0

?62

Snapper Pro 7042834

HARNESS, Deck Lift
(Superseded to 7042834YP)

Note: (See "73" Mower Deck Assembly")

$15.99

$

Usually ships in 2-12 days

0

63

Snapper Pro 7036457

BRACKET, Gage Wheel
(Superseded to 7036457YP)

$44.99

$

Usually ships in 2-12 days

0

64

Snapper Pro 7036454

INDICATOR, Height-of-Cut

$

$

Not available

65

Snapper Pro 7054104

ASSEMBLY, Telescoping Drive shaft
(Superseded to 7054104YP)

$

$

Not available

66

Snapper Pro 7027344

WASHER, 5/8" Flat
(Superseded to 7027344SM)

$3.99

$

In Stock, only 2 left!

0

67

Snapper Pro 7091824

PIN, 5-16 Lynch

$9.99

$

Usually ships in 2-12 days

0

68

Snapper Pro 7036465

BALLJOINT, 1/2-20
(Superseded to 7036465YP)

$50.99

$

Usually ships in 2-12 days

0

69

Snapper Pro 7035668

SPACER
(Superseded to 7035668YP)

$45.99

$

Usually ships in 2-12 days

0

70

Snapper Pro 7090160

SCREW, 3/8-24 x 1", Gr. 5
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

71

Snapper Pro 7058167

ASSEMBLY, Wheel/Tire
(Superseded to 7058167YP)

Note: Was 29869

$

$

Not available

72

Snapper Pro 7029870

TIRE, 9" x 3.50" -4 Ply
(Superseded to 7029870YP)

$58.99

$

Usually ships in 2-12 days

0

73

Snapper Pro 7012234

VALVE, Air (Snap-In)
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

74

Snapper Pro 7057737

RIM
(Superseded to 7057737YP)

Note: Was 29871

$87.99

$

Usually ships in 2-12 days

0

?75

Snapper Pro 7026107

GREASE, Multi-Purpose

$

$

Currently unavailable

76

Snapper Pro 7090993

SCREW, 1/2-20 x 4-1/2"
(Superseded to 7090993YP)

$7.49

$

In Stock, only 1 left!

0

77

Snapper Pro 7090393

NUT, 1/2-20 Hex Nyloc
(Superseded to 7090393YP)

$4.49

$

In Stock, only 2 left!

0
