ZF 2501KH (7084574) - Snapper Zero-Turn Mower, 25hp Electrical Components (Except Wiring) Parts Diagram

Zero-Turn Mower, 25hp

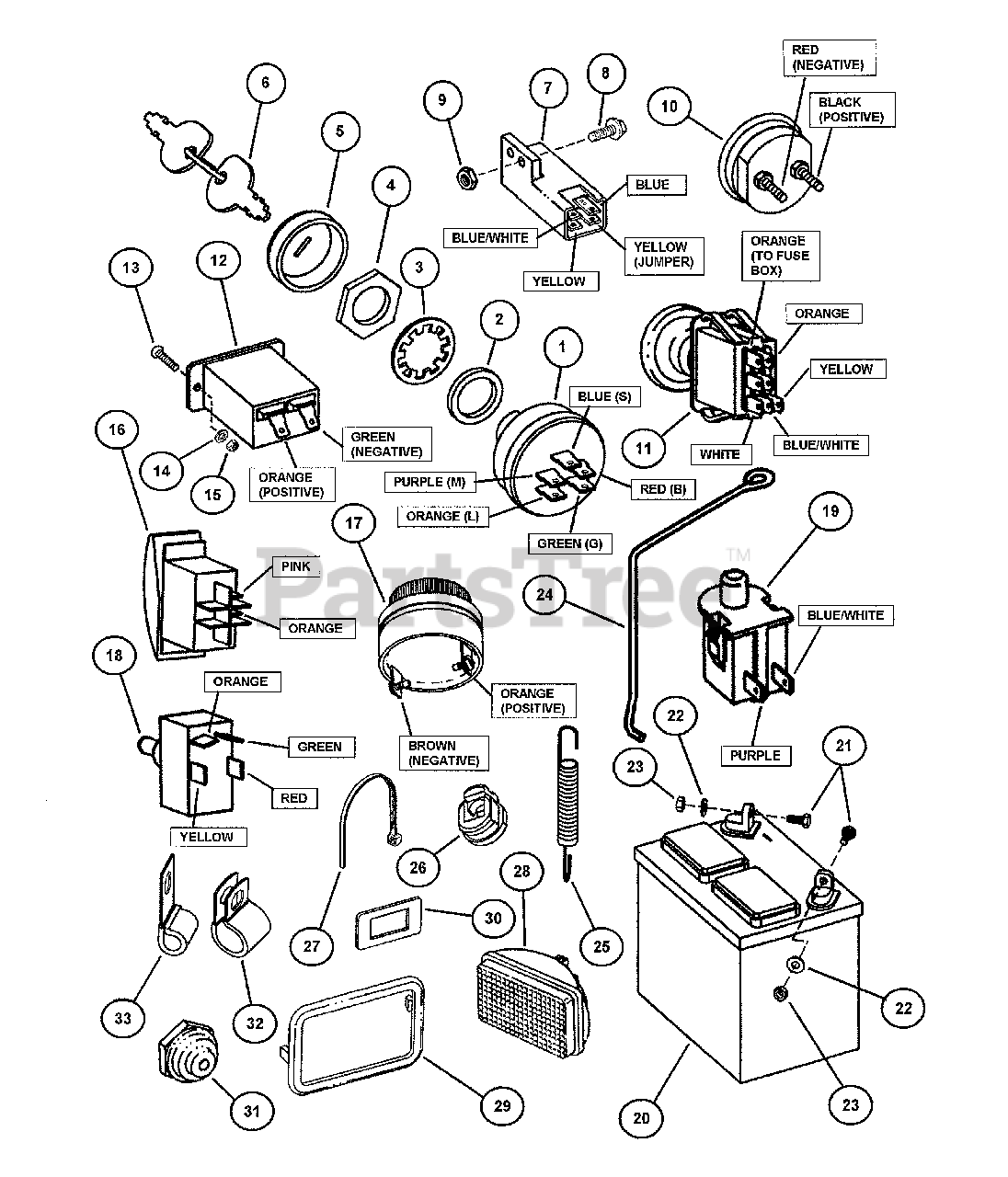

Electrical Components (Except Wiring) Parts Diagram

  • Title

1

Snapper Pro 7026343

KEYSWITCH, Ignition-Afterfire Solenoid
(Superseded to 7026343SM)

$40.99

$

In Stock, Qty 5

0

2

Snapper Pro 7016132

SPACER, 5/8"
(Superseded to 7016132SM)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 7091546

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 8

0

4

Snapper Pro 7012685

NUT, 5/8-32 Hex
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 7011138

KEY, and Ring
(Superseded to 7011138YP)

$7.99

$

In Stock, Qty 8

0

7

Snapper Pro 7023355

SWITCH, DPDT
(Superseded to 7023355YP)

$18.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7091240

SCREW, #10-32 x 5/8" Hex Wash. Hd. Machine, Grade 5
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

9

Snapper Pro 7090376

NUT, #10-32 Hex Nyloc

$3.49

$

In Stock, only 4 left!

0

10

Snapper Pro 7019547

ASSEMBLY, Ammeter and Clamp
(Superseded to 7019547YP)

$96.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7035658

SWITCH, PTO
(Superseded to 7035658YP)

$

$

Not available

12

Snapper Pro 7060788

HOUR METER, D.C. Series 1500

Note: Was 15277

$

$

Not available

13

Snapper Pro 7090927

SCREW, #6-32 Round Head Machine
(Superseded to 7090927YP)

$

$

Not available

14

Snapper Pro 7090926

WASHER, #6 Internal Tooth Lock
(Superseded to 7090926YP)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 7090925

NUT, #6-32 Hex
(Superseded to 7090925YP)

Note: (For Machine Screw)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 7035659

SWITCH, Lights
(Superseded to 7035659YP)

$19.99

$

In Stock, only 1 left!

0

17

Snapper Pro 7079208

BUZZER, Pulsing

$109.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7035700

SWITCH, Self Centering, Deck Lift
(Superseded to 7035700YP)

$70.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7023354

SWITCH, Seat NC
(Superseded to 7023354YP)

Note: (See "Seat Support Assembly" illustration and parts list)

$12.99

$

In Stock, Qty 20+

0

20

Snapper Pro 7035610

BATTERY, 11 Plate-380CCA

$

$

Not available

21

Snapper Pro 7090072

SCREW, 1/4-20 x 5/8", Hex Head Cap, Grade 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 12

0

22

Snapper Pro 7091294

WASHER, .28 I.D. x .63 O.D. x .06 Flat

Note: Was 90055

$

$

Not available

23

Snapper Pro 7090372

NUT, 1/4-20 Hex Center Lock, Grade 5 or B

$

$

Not available

24

Snapper Pro 7022366

BRACKET, Battery
(Superseded to 7022366YP)

$14.99

$

In Stock, only 2 left!

0

25

Snapper Pro 7022696

SPRING, Battery

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 7035779

STRAIN RELIEF, Wire
(Superseded to 7035779YP)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 7018829

HEAD LIGHT
(Superseded to 7018829YP)

$63.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 7035550

BEZEL, Headlight

$

$

Not available

30

Snapper Pro 7035661

SPACER, PTO Switch
(Superseded to 7035661YP)

$4.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 7035702

SEAL, Switch
(Superseded to 7035702YP)

$8.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 7015861

CLIP, Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 7035638

CLIP, Open J, 3/8" Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0
