52" Mower Deck Assembly

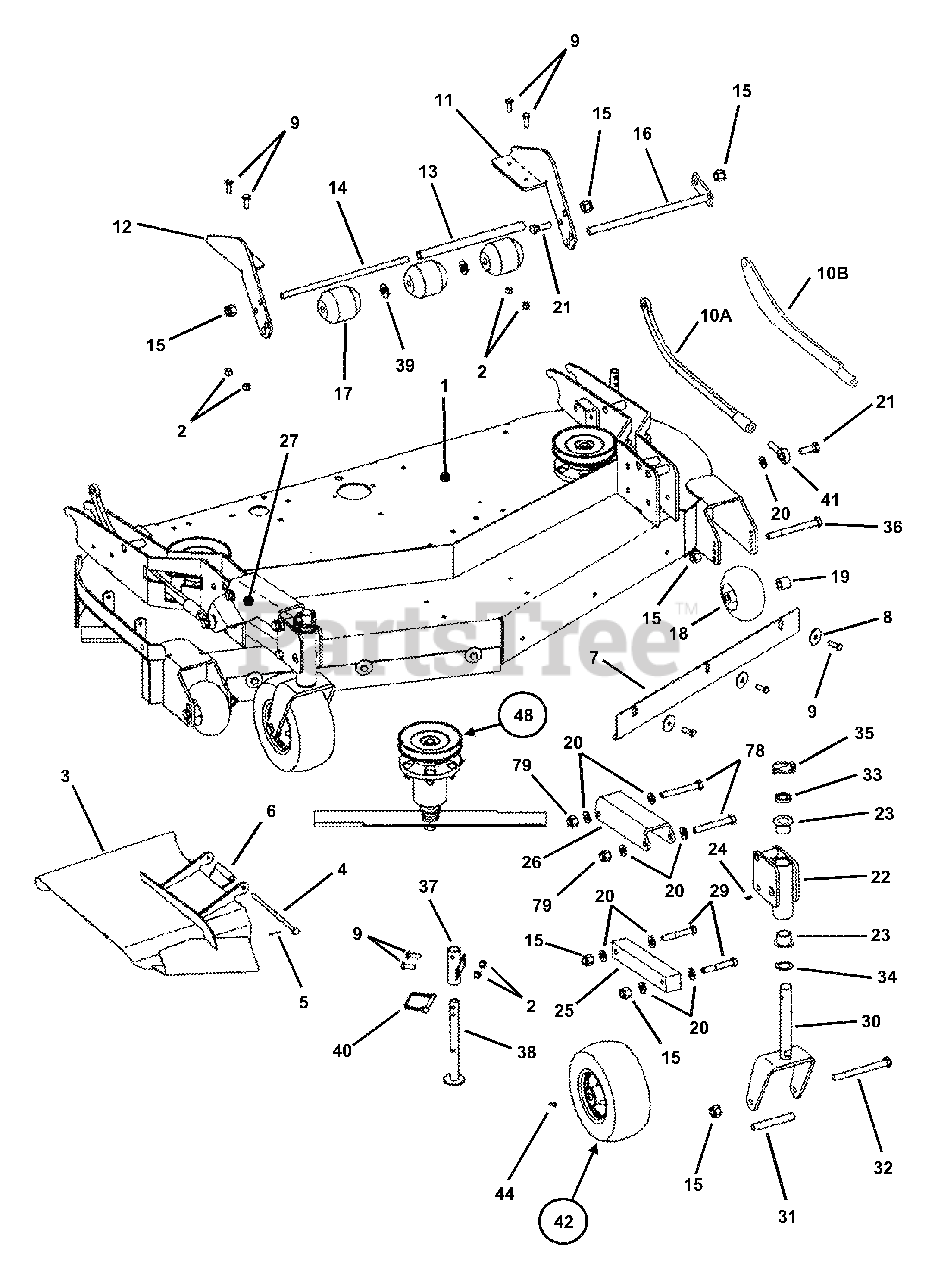

52" Mower Deck Components (Part 1) Parts Diagram

  • Title

1

Snapper 7042898

WELDMENT, 52" Deck- Adjustable Height
(Superseded to 7042898YP)

$2108.99

$

Usually ships in 2-12 days

0

2

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 9

0

3

Snapper 7044806

DEFLECTOR, Chute 52" Euro (Weldment)
(Superseded to 7044806YP)

Note: Was 58285

$311.99

$

Usually ships in 2-12 days

0

4

Snapper 7029277

PIN, Chute Hinge
(Superseded to 7029277YP)

$40.99

$

In Stock, only 2 left!

0

5

Snapper 7091313

PIN, 3/32 x 1" Cotter
(Superseded to 704058)

$3.49

$

In Stock, only 1 left!

0

6

Snapper 7027950

SPRING, Chute
(Superseded to 7027950YP)

$

$

Not available

7

Snapper 7042914

BAFFLE, Front
(Superseded to 7042914YP)

$39.99

$

Usually ships in 2-12 days

0

8

Snapper 7091331

WASHER, 13/32 x 1-1/2" Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 8

0

9

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

10A

Snapper 7053437

LINK, Height of Cut
(Superseded to 7053437YP)

Note: Was 46495

$88.99

$

Usually ships in 2-12 days

0

10B

Snapper 7053437

LINK, Height of Cut, Heavy Duty
(Superseded to 7053437YP)

Note: (May be substituted for 46495)

$88.99

$

Usually ships in 2-12 days

0

11

Snapper 7036459

MOUNT, Roller Left Hand
(Superseded to 7036459YP)

$54.99

$

Usually ships in 2-12 days

0

12

Snapper 7036458

MOUNT, Roller Right Hand
(Superseded to 7036458YP)

$51.99

$

Usually ships in 2-12 days

0

13

Snapper 7036460

TUBE, Roller

$

$

Not available

14

Snapper 7036461

PIN, Roller
(Superseded to 7036461YP)

$8.99

$

Usually ships in 2-12 days

0

15

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 13

0

16

Snapper 7027327

WELDMENT, Shaft
(Superseded to 7027327YP)

$82.99

$

In Stock, only 1 left!

0

17

Snapper 7073142

ROLLER, Low Density Polyethylene
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 11

0

18

Snapper 7029264

WHEEL, Gage
(Superseded to 7029264YP)

$14.99

$

In Stock, Qty 9

0

19

Snapper 7036456

SPACER, Gage Wheel

$

$

Not available

20

Snapper 7091587

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, Qty 17

0

21

Snapper 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

In Stock, only 1 left!

0

22

Snapper 7042652

TUBE, Caster (Weldment)
(Superseded to 7042652YP)

$216.99

$

Usually ships in 2-12 days

0

23

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, only 2 left!

0

24

Snapper 7076998

FITTING, Lube 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, only 3 left!

0

25

Snapper 7036444

ARM, Lower Caster
(Superseded to 7036444YP)

$68.99

$

Usually ships in 2-12 days

0

26

Snapper 7054523

ARM, Caster Support Left Hand

Note: Was 42655

$

$

Not available

27

Snapper 7054522

ARM, Caster Support Right Hand

Note: Was 42653

$

$

Not available

29

Snapper 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

30

Snapper 7054464

WELDMENT, Caster
(Superseded to 7054464BMYP)

Note: Was 42780

$222.99

$

In Stock, only 2 left!

0

31

Snapper 7022151

SLEEVE, Axle
(Superseded to 7022151YP)

$43.99

$

In Stock, only 4 left!

0

32

Snapper 5025017X44

BOLT, 1/2-13 X 5-1/2" GD5 YZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

33

Snapper 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

34

Snapper 7023747

BUSHING, Machine
(Superseded to 7023747YP)

$5.49

$

Usually ships in 2-12 days

0

35

Snapper 7017711

PIN, 7/16" HD Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, Qty 6

0

36

Snapper 5025017X40

BOLT, 1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 8

0

37

Snapper 7042657

TUBE, Jack Stand (Weldment)
(Superseded to 7042657YP)

$63.99

$

Usually ships in 2-12 days

0

38

Snapper 7042658

WELDMENT, Jack Stand
(Superseded to 7042658YP)

$44.99

$

Usually ships in 2-12 days

0

39

Snapper 7027344

WASHER, 5/8" Flat
(Superseded to 7027344SM)

$3.99

$

Usually ships in 2-12 days

0

40

Snapper 7091824

PIN, 5/16" Lynch
(Superseded to 7091824YP)

$9.99

$

Usually ships in 2-12 days

0

41

Snapper 7036465

BALLJOINT, 1/2-20
(Superseded to 7036465YP)

$50.99

$

Usually ships in 2-12 days

0

42

Snapper 7059065

ASSEMBLY, Wheel/Tire
(Superseded to 7059065YP)

Note: (Includes items 43 Thru 47)

$225.99

$

In Stock, only 1 left!

0

44

Snapper 7046430

FITTING, Grease 1/4"
(Superseded to 7046430YP)

$9.99

$

Usually ships in 2-12 days

0

48

Snapper 7054477

GROUP, Spindle

Note: (See "Cutter Housing Assembly" for parts breakdown)

$

$

Currently unavailable

78

Snapper 7090993

SCREW, 1/2-20 x 4-1/2" Hex Head Cap, Grade 5
(Superseded to 7090993YP)

$5.49

$

In Stock, only 1 left!

0

79

Snapper 7090393

NUT, 1/2-20 Hex Nyloc
(Superseded to 7090393YP)

$3.49

$

Usually ships in 2-12 days

0

Snapper 7057735

Height of Cut Linkage Assembly

Note: Comprised of items 10A & 41

$

$

Currently unavailable
