ZF 7302M (7084605) - Snapper 73" Mower Deck Assembly Spring - Loaded Idler Group Parts Diagram

73" Mower Deck Assembly

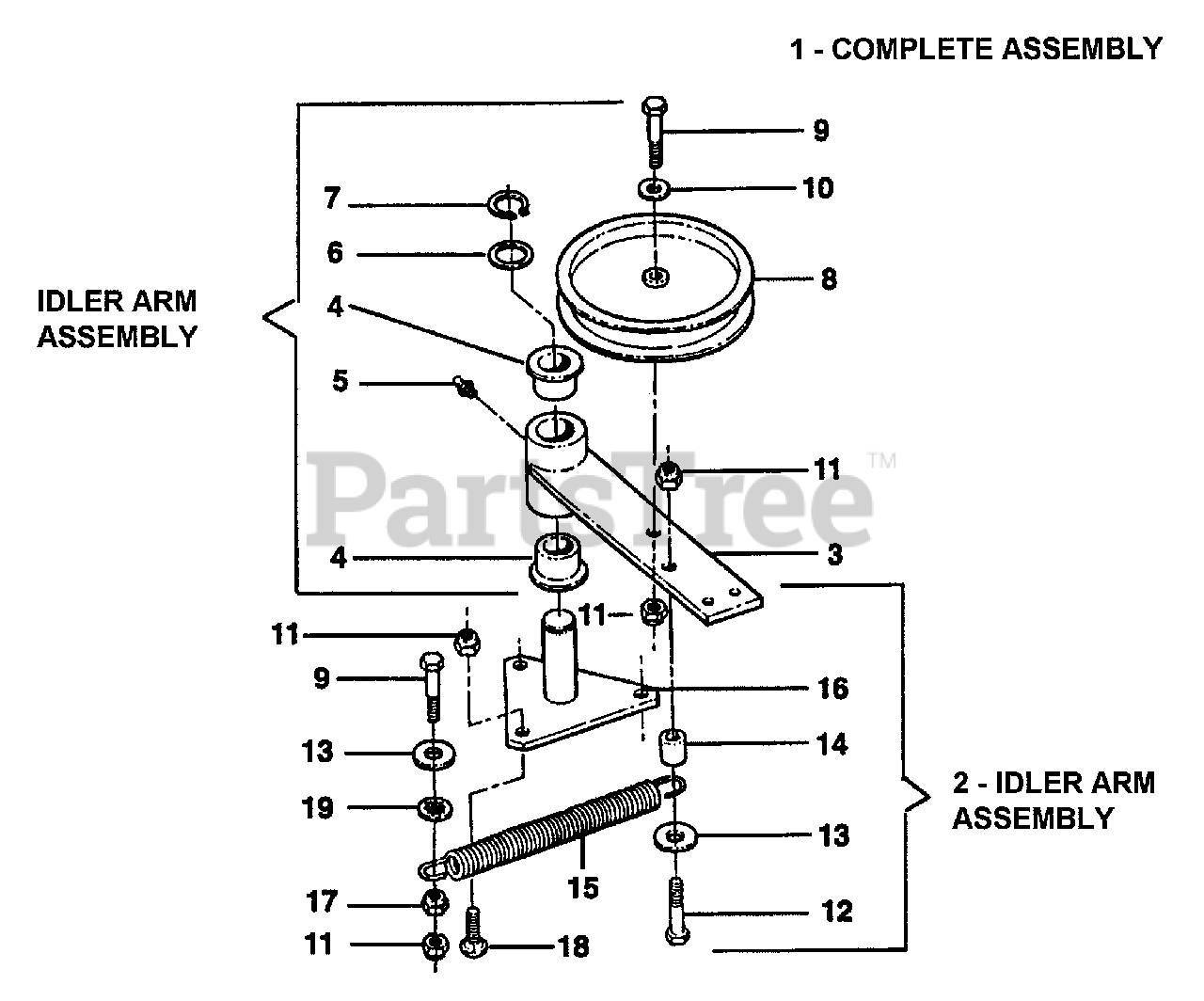

Spring - Loaded Idler Group Parts Diagram

  • Title

1

Snapper Pro 7054356

ASSEMBLY, Spring-Loaded Idler Group

Note: (Includes items 1 thru 18)

$

$

Currently unavailable

2

Snapper Pro 7054248

ASSEMBLY, Idler Arm

Note: (Includes items 3 thru 14)

$

$

Currently unavailable

3

Snapper Pro 7042619

ARM, Idler (Weldment)
(Superseded to 7042619YP)

$334.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7023556

BUSHING
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 16

0

5

Snapper Pro 7076998

FITTING, 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 5

0

6

Snapper Pro 7032031

WASHER, 1.031 x 1.25 x .03" Flat

$5.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7012709

E-RING, 1"
(Superseded to 703993)

$3.49

$

In Stock, Qty 20+

0

8

Snapper Pro 7035789

PULLEY, 5 1/2" O.D.
(Superseded to 7035789YP)

$61.99

$

In Stock, Qty 8

0

9

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 5

0

10

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Was 91300

$4.49

$

In Stock, Qty 5

0

11

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 7

0

12

Snapper Pro 7091553

SCREW, 3/8-16 x 1 3/4" Hex Head Cap, Grade 5

$

$

Not available

13

Snapper Pro 7091331

WASHER, .406 x 1.5 x .120" (YZ)

$

$

Not available

14

Snapper Pro 7035858

SPACER, .50 I.D. x .75 O.D. x .83"

$29.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7035667

SPRING, Extension
(Superseded to 7035667YP)

$34.99

$

In Stock, only 3 left!

0

16

Snapper Pro 7041295

PIVOT, Idler (Weldment)
(Superseded to 7041295YP)

$

$

Not available

17

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 10

0

18

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

In Stock, Qty 17

0
