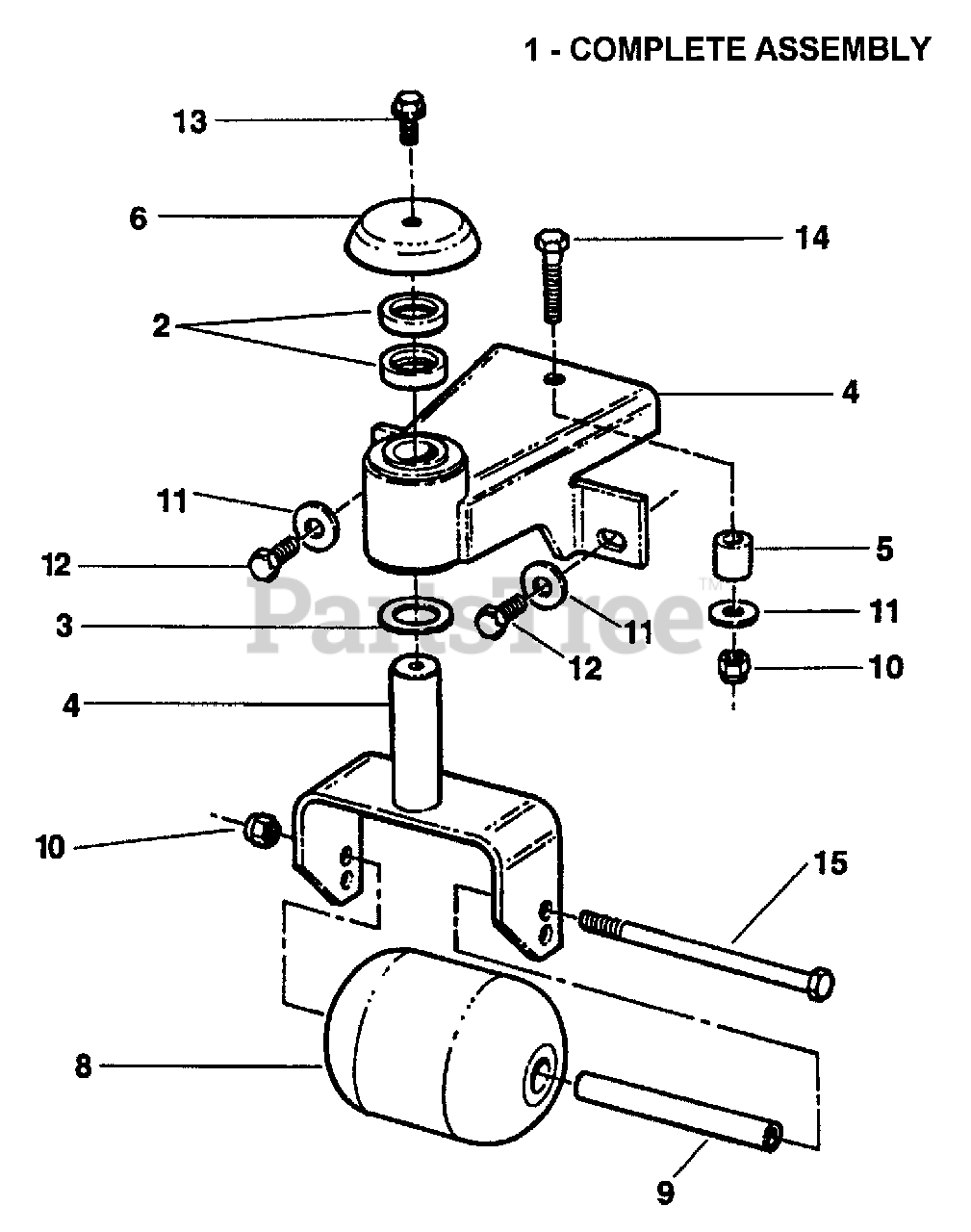

ZF 7302M (84605) - Snapper 73" Mower Deck Assembly Roller Assembly Parts Diagram

73" Mower Deck Assembly

Roller Assembly Parts Diagram

  • Title

1

Snapper 7054695

ASSEMBLY, Roller

Note: (Includes items 2 thru 15)

$

$

Currently unavailable

2

Snapper 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

3

Snapper 7023747

BUSHING, 1" Machine
(Superseded to 7023747YP)

$5.49

$

Usually ships in 2-12 days

0

4

Snapper 7044646

CASTER, Gage Wheel (Weldment)
(Superseded to 7044646YP)

$173.99

$

Usually ships in 2-12 days

0

5

Snapper 7044752

SPACER, 3/8 x .75"
(Superseded to 7044752YP)

$23.99

$

Usually ships in 2-12 days

0

6

Snapper 7036578

CAP, Caster Shaft
(Superseded to 7036578YP)

Note: Was 44839

$30.99

$

In Stock, only 1 left!

0

?7

Snapper 7054702

ASSEMBLY, Gage Wheel Caster (Weldment)

$

$

Currently unavailable

8

Snapper 7079868

ROLLER, 3 3/4 x 4 13/16" Nylon
(Superseded to 7079868YP)

$63.99

$

In Stock, only 3 left!

0

9

Snapper 7079882

TUBE, Axle
(Superseded to 7079882YP)

$32.99

$

Usually ships in 2-12 days

0

10

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 6

0

11

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Was 91300

$3.99

$

In Stock, only 3 left!

0

12

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

13

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Head, Self-Tapping
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7091553

SCREW, 3/8-16 x 1 3/4" Hex Head Cap
(Superseded to 704289)

$4.99

$

In Stock, Qty 15

0

15

Snapper 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

Usually ships in 2-12 days

0
