ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 411294212 - 413950473) (Rev A) (2022) Spray System Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

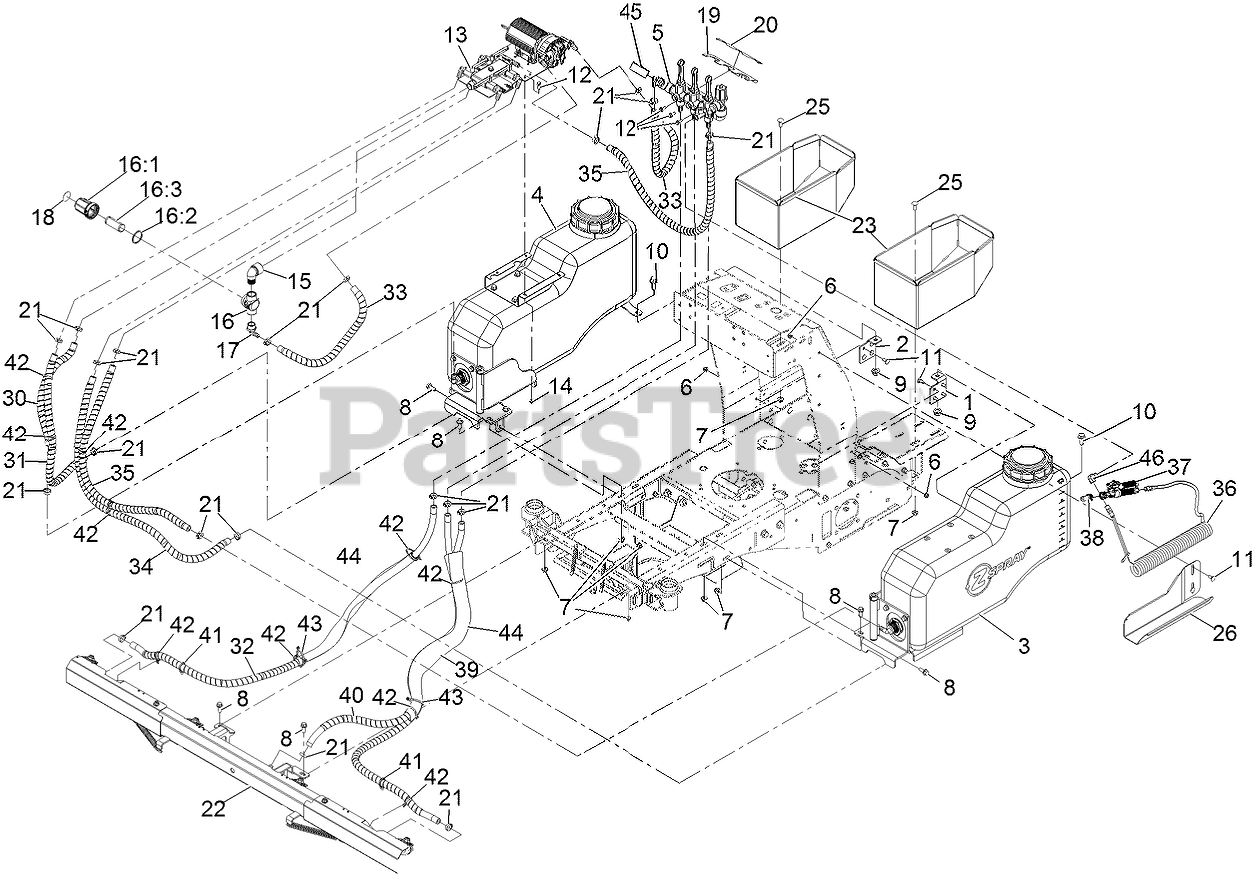

Spray System Assembly Parts Diagram

  • Title

1

Exmark 142-0722

PIN, SUPPORT, JR36

$17.99

$

Usually ships in 3-6 days

0

2

Exmark 142-0723

PIN, SUPPORT, JR36, SS, 0.188

$17.99

$

Usually ships in 3-6 days

0

3

Exmark 142-3073

ASM-TANK, LT

$786.99

$

Usually ships in 3-6 days

0

4

Exmark 142-3074

ASM-TANK, RT

$786.99

$

Usually ships in 3-6 days

0

5

ASM-Manifold

Note: Not serviced separately

$

$

Not available

6

Exmark 135-6109

Nut-Hex Flange

$1.49

$

In Stock, Qty 11

0

7

Exmark 135-6110

Nut-Hex Flange

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 135-6208

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 135-6111

NUT-HEX FLANGE

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 135-6207

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

11

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 135-6221

Screw-HHF

$1.49

$

In Stock, Qty 10

0

13

ASM, Liquid Valve

Note: Not serviced separately

$

$

Not available

14

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

15

Exmark 132-7706

ELBOW-90DEG

Note: Apply pipe sealant to all pipe threads.

$11.99

$

Usually ships in 3-6 days

0

16

Exmark 135-5765

STRAINER-INLINE

$28.99

$

In Stock, only 3 left!

0

16:1

Exmark 126-7195

BOWL-STRAINER

$26.99

$

In Stock, only 1 left!

0

16:2

Exmark 126-2272

GASKET-HEAD, LINE STRAINE

$9.99

$

In Stock, Qty 9

0

16:3

Exmark 135-5766

Screen-Strainer, 50 Mesh

$19.99

$

In Stock, only 2 left!

0

17

Exmark 135-5744

FITTING-ELBOW, 90

Note: Apply pipe sealant to all pipe threads.

$1.99

$

In Stock, only 2 left!

0

18

Exmark 135-6424

DECAL-CAP, STRAINER

$1.99

$

Usually ships in 3-6 days

0

19

Exmark 135-5570-05

Bracket-Manifold

$16.99

$

Usually ships in 3-6 days

0

20

Exmark 142-4366

Decal-Valve, Boom

$5.99

$

Usually ships in 3-6 days

0

21

Exmark 135-5692

CLAMP-OETIKER, 167

$1.99

$

In Stock, only 2 left!

0

22

ASM-Boom, Spray

Note: Not serviced separately

$

$

Not available

23

Exmark 142-2446

BOX-FERT

$212.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

26

Exmark 142-0749

TRAY, GUN, JR36

$60.99

$

Usually ships in 3-6 days

0

30

Exmark 142-0042

Hose-Spray, Wrapped

$19.99

$

In Stock, only 1 left!

0

31

Exmark 142-0039

Hose-Spray, Wrapped

$33.99

$

In Stock, only 2 left!

0

32

Exmark 142-0014

HOSE ASM-65,1/2,EPDM,WRAP

$17.99

$

Usually ships in 3-6 days

0

33

Exmark 142-0041

HOSE-SPRAY, WRAPPED

$27.99

$

Usually ships in 3-6 days

0

34

Exmark 142-0036

Hose-Spray, Wrapped

$39.99

$

Usually ships in 3-6 days

0

35

Exmark 142-0037

Hose-Spray, Wrapped

$38.99

$

Usually ships in 3-6 days

0

36

Exmark 135-6612

HOSE-COILED, 15 FT

$95.99

$

Usually ships in 3-6 days

0

37

Exmark 135-5773

GUN-SPRAY, SPOT

$64.99

$

In Stock, only 3 left!

0

38

Exmark 135-5778

TIP-SPRAY, #12 SPOT

$23.99

$

In Stock, Qty 10

0

39

Exmark 142-0013

HOSE ASM-63,1/2,EPDM,WRAP

$17.99

$

Usually ships in 3-6 days

0

40

Exmark 135-5294

HOSE-SPRAY, WRAPPED

$13.99

$

Usually ships in 3-6 days

0

41

Exmark 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

42

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

43

Exmark 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

44

Exmark 135-6484

Guard-Mesh

$19.99

$

In Stock, only 3 left!

0

45

Exmark 135-5740

GAUGE
(Superseded to 142-3437)

$33.99

$

In Stock, only 1 left!

0

46

Exmark 125-9088

FITTING-ELBOW, 90

$17.99

$

Usually ships in 3-6 days

0
