ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 411294212 - 413950473) (Rev B) (2022) Hydraulic Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

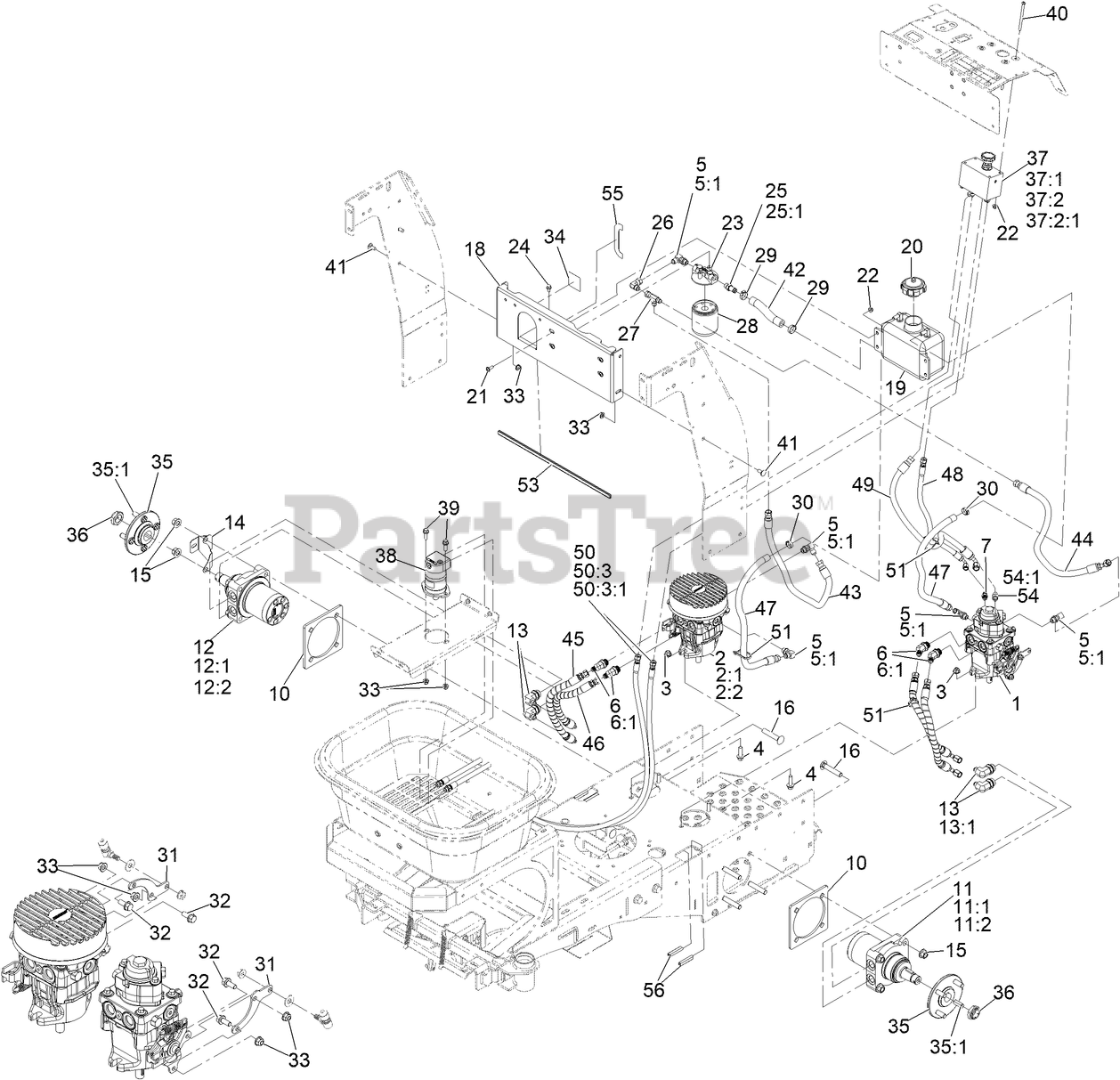

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 135-5250

PUMP-HYDRO, PG WITH AUX

$1076.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5251

PUMP-HYDRO, PG

$845.99

$

Usually ships in 3-6 days

0

2:1

Exmark 135-9175

HYDRO PUMP FAN

$59.99

$

Usually ships in 3-6 days

0

2:2

Exmark 103-7489

GUARD-PUMP

$96.99

$

In Stock, Qty 5

0

3

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 17

0

4

Exmark 135-6211

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 2 left!

0

5:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

6

Exmark 131-1308

FITTING

$26.99

$

Usually ships in 3-6 days

0

6:1

Exmark 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

7

Exmark 353-545

FITTING-STRAIGHT

$27.99

$

Usually ships in 3-6 days

0

10

Exmark 142-0709

BACKPLATE, WHEEL, JR36

$41.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6689

MOTOR-WHEEL,LT

$955.99

$

Usually ships in 3-6 days

0

11:1

Exmark 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 14

0

11:2

Exmark 135-7497

KIT-SEAL, TJ MOTOR

$172.99

$

In Stock, only 1 left!

0

12

Exmark 135-6688

MOTOR-WHEEL,RT

$1078.99

$

Usually ships in 3-6 days

0

12:1

Exmark 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 14

0

12:2

Exmark 135-7497

KIT-SEAL, TJ MOTOR

$172.99

$

In Stock, only 1 left!

0

13

Exmark AU218-5281

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

13:1

Exmark 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

14

Exmark 135-5574

BRACKET-HOPPER, SPEEDOMET

$5.99

$

Usually ships in 3-6 days

0

15

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

16

Exmark 126-0095

SCREW-CARR

$2.99

$

In Stock, Qty 11

0

18

Exmark 135-9773

MOUNT, HYDRAULIC FILTER,

$68.99

$

Usually ships in 3-6 days

0

19

Exmark 135-9056

2 QT FLAMBEAU HYDRO TANK

$55.99

$

Usually ships in 3-6 days

0

20

Exmark 135-5713

Cap-Vented

$23.99

$

In Stock, only 1 left!

0

21

Exmark 135-7080

Screw-Hsbhf

$3.49

$

In Stock, Qty 8

0

22

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

23

Exmark 104-7836

HEAD-FILTER

$19.99

$

In Stock, only 1 left!

0

24

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

25

Exmark 109-3278

ADAPTER-STRAIGHT

$143.99

$

Usually ships in 3-6 days

0

25:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

26

Exmark AU218-980

ELBOW-SWIVEL, 90 DEG

$10.99

$

Usually ships in 3-6 days

0

27

Exmark 353-877

FITTING-HYD, TEE

$23.99

$

Usually ships in 3-6 days

0

28

Exmark 109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$52.99

$

In Stock, Qty 8

0

29

Exmark 135-5692

CLAMP-OETIKER, 167

$2.49

$

In Stock, Qty 20+

0

30

Exmark 135-5757

CLAMP-OETIKER, 167

$2.49

$

Usually ships in 3-6 days

0

31

Exmark 135-8846

EXTENSION, HYDRO-PUMP, JR

$6.99

$

Usually ships in 3-6 days

0

32

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, only 4 left!

0

33

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

34

Exmark 135-6398

DECAL-OIL

$3.49

$

Usually ships in 3-6 days

0

35

Exmark 135-7525

HUB-WHEEL

$111.99

$

In Stock, only 1 left!

0

35:1

Exmark 135-7526

STUD-1/2-20 X 1.55

$5.49

$

Usually ships in 3-6 days

0

36

Exmark 116-1399

LOCKNUT

$15.99

$

In Stock, Qty 5

0

37

Exmark 142-4324

Manifold-Flow Control, Hopper
(Superseded to 142-8082)

$433.99

$

Usually ships in 3-6 days

0

37:1

Exmark 01-201-0780

DISCONTINUED

$7.49

$

Usually ships in 3-6 days

0

37:2

Exmark 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

37:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

38

Exmark 135-5243

MOTOR-HYDRAULIC, SPREADER

$570.99

$

Usually ships in 3-6 days

0

39

Exmark 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 8

0

40

Exmark 135-6385

Screw-HSBH

$1.99

$

Usually ships in 3-6 days

0

41

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 109-5577

HOSE-HYDRAULIC

$6.99

$

In Stock, only 4 left!

0

43

Exmark 135-9977

HOSE ASM, HYD LP

$30.99

$

Usually ships in 3-6 days

0

44

Exmark 135-7822

HOSE ASM, HYD LP

$75.99

$

Usually ships in 3-6 days

0

45

Exmark 142-3121

HOSE ASM-HYD HP

$75.99

$

Usually ships in 3-6 days

0

46

Exmark 142-3122

HOSE ASM-HYD HP

$75.99

$

Usually ships in 3-6 days

0

47

Exmark 135-9978

HOSE ASM, HYD LP

$26.99

$

Usually ships in 3-6 days

0

48

Exmark 142-3119

Hose ASM-HYD HP

$73.99

$

Usually ships in 3-6 days

0

49

Exmark 135-7821

HOSE ASM, HYD LP

$75.99

$

Usually ships in 3-6 days

0

50

Exmark 142-6167

HOSE ASM-HYD HP

$96.99

$

Usually ships in 3-6 days

0

50:3

Fitting-Straight, Rigid

Note: Not serviced separately

$

$

Not available

50:3:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

51

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

53

Exmark 135-7494

STRIP-TRIM, 17.88""

$5.49

$

Usually ships in 3-6 days

0

54

Exmark AU218-5352

Adapter-Straight

$7.49

$

Usually ships in 3-6 days

0

54:1

Exmark 237-78

O-RING

$4.49

$

In Stock, Qty 13

0

55

Exmark 135-7911

DECAL-HYDRO LEVEL

$7.49

$

Usually ships in 3-6 days

0

56

Exmark 135-7948

STRIP-TRIM, 2.0""

$3.49

$

Usually ships in 3-6 days

0
