ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 411294212 - 413950473) (Rev B) (2022) Manifold Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

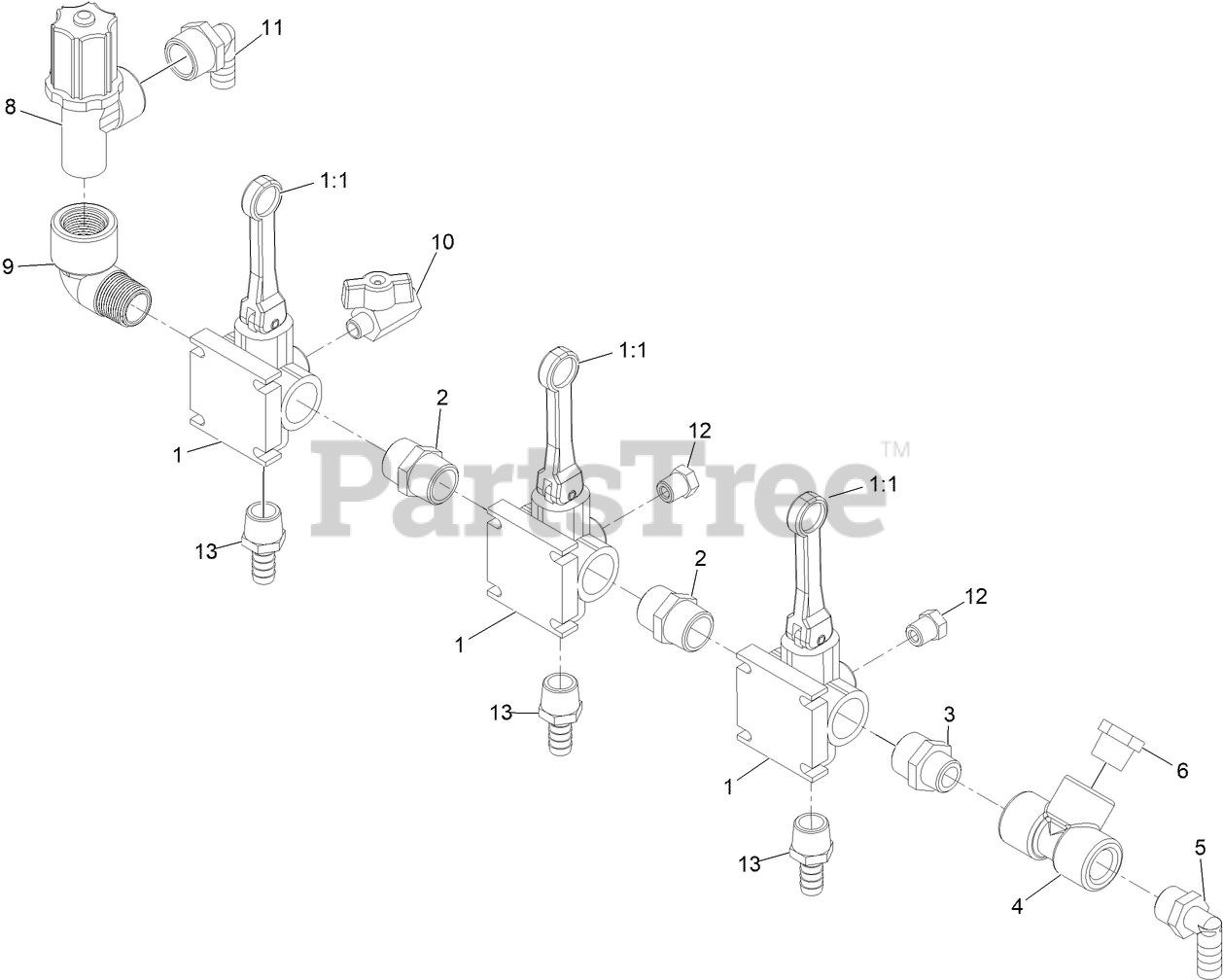

Manifold Assembly Parts Diagram

  • Title

1

Exmark 135-5721

VALVE-DIRECTO

$81.99

$

In Stock, only 3 left!

0

1:1

Exmark 142-1463

VALVE HANDLE ONLY AA6B

$10.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5741

FITTING-NIPPLE

Note: Apply pipe sealant to all pipe threads.

$1.99

$

In Stock, only 3 left!

0

3

Exmark 135-5742

FITTING-NIPPLE

Note: Apply pipe sealant to all pipe threads.

$1.99

$

In Stock, Qty 5

0

4

Exmark 94-7100

TEE

$10.99

$

In Stock, only 1 left!

0

5

Exmark 120-8673

FITTING-ELBOW, HOSEBARB

Note: Apply pipe sealant to all pipe threads.

$3.49

$

In Stock, only 3 left!

0

6

Exmark 135-5743

FITTING-REDUCER

Note: Apply pipe sealant to all pipe threads.

$3.49

$

Usually ships in 3-6 days

0

8

Exmark 135-5736

VALVE-THROTTLE

Note: Apply pipe sealant to all pipe threads.

$64.99

$

Usually ships in 3-6 days

0

9

Exmark 132-7706

ELBOW-90DEG

Note: Apply pipe sealant to all pipe threads.

$13.99

$

Usually ships in 3-6 days

0

10

Exmark 135-5737

VALVE-CHROME, 1/4

Note: Apply pipe sealant to all pipe threads.

$22.99

$

In Stock, only 2 left!

0

11

Exmark 135-5744

FITTING-ELBOW, 90

Note: Apply pipe sealant to all pipe threads.

$2.49

$

In Stock, only 3 left!

0

12

Exmark 135-5735

PLUG-VALVE

Note: Apply pipe sealant to all pipe threads.

$0.99

$

In Stock, only 1 left!

0

13

Exmark 120-8671

FITTING-HOSEBARB

Note: Apply pipe sealant to all pipe threads.

$2.49

$

Usually ships in 3-6 days

0
