ZS3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5 GPM Pump (SN: 411294212 - 413950473) (Rev B) (2022) Spray System Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5 GPM Pump

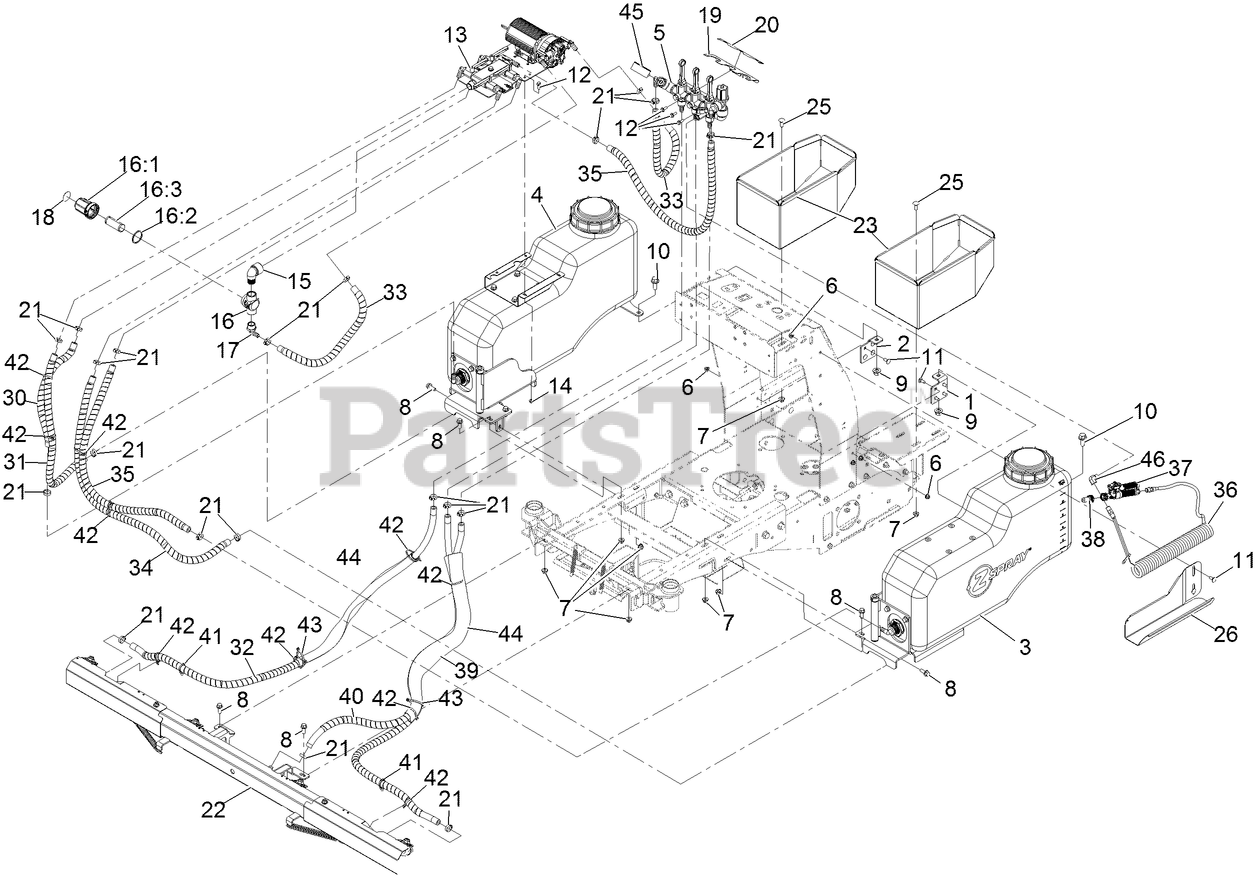

Spray System Assembly Parts Diagram

  • Title

1

Exmark 142-0722

PIN, SUPPORT, JR36

$22.99

$

Usually ships in 3-6 days

0

2

Exmark 142-0723

PIN, SUPPORT, JR36, SS, 0.188

$22.99

$

Usually ships in 3-6 days

0

3

Exmark 142-3073

ASM-TANK, LT

$855.99

$

Usually ships in 3-6 days

0

4

Exmark 142-3074

ASM-TANK, RT

$855.99

$

Usually ships in 3-6 days

0

5

ASM-Manifold

Note: Not serviced separately

$

$

Not available

6

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

7

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 17

0

8

Exmark 135-6208

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

9

Exmark 135-6111

NUT-HEX FLANGE

$7.49

$

In Stock, only 1 left!

0

10

Exmark 135-6207

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 10

0

13

ASM, Liquid Valve

Note: Not serviced separately

$

$

Not available

14

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

15

Exmark 132-7706

ELBOW-90DEG

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 135-5765

STRAINER-INLINE

$33.99

$

In Stock, Qty 5

0

16:1

Exmark 126-7195

BOWL-STRAINER

$29.99

$

In Stock, only 3 left!

0

16:2

Exmark 126-2272

GASKET-HEAD, LINE STRAINE

$10.99

$

In Stock, Qty 8

0

16:3

Exmark 135-5766

Screen-Strainer, 50 Mesh

$23.99

$

In Stock, only 2 left!

0

17

Exmark 135-5744

FITTING-ELBOW, 90

Note: Apply pipe sealant to all pipe threads.

$2.49

$

In Stock, only 3 left!

0

18

Exmark 135-6424

DECAL-CAP, STRAINER

$2.49

$

Usually ships in 3-6 days

0

19

Exmark 135-5570-05

Bracket-Manifold

$20.99

$

Usually ships in 3-6 days

0

20

Exmark 142-4366

Decal-Valve, Boom

$7.49

$

Usually ships in 3-6 days

0

21

Exmark 135-5692

CLAMP-OETIKER, 167

$2.49

$

In Stock, Qty 20+

0

22

ASM-Boom, Spray

Note: Not serviced separately

$

$

Not available

23

Exmark 142-2446

BOX-FERT

$230.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0980

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

26

Exmark 142-0749

TRAY, GUN, JR36

$74.99

$

Usually ships in 3-6 days

0

30

Exmark 142-0042

Hose-Spray, Wrapped

$24.99

$

Usually ships in 3-6 days

0

31

Exmark 142-0039

Hose-Spray, Wrapped

$42.99

$

In Stock, only 1 left!

0

32

Exmark 142-0014

HOSE ASM-65,1/2,EPDM,WRAP

$41.99

$

Usually ships in 3-6 days

0

33

Exmark 142-0041

HOSE-SPRAY, WRAPPED

$31.99

$

Usually ships in 3-6 days

0

34

Exmark 142-0036

Hose-Spray, Wrapped

$49.99

$

Usually ships in 3-6 days

0

35

Exmark 142-0037

Hose-Spray, Wrapped

$48.99

$

Usually ships in 3-6 days

0

36

Exmark 135-6612

HOSE-COILED, 15 FT

$107.99

$

In Stock, only 2 left!

0

37

Exmark 135-5773

GUN-SPRAY, SPOT

$71.99

$

In Stock, only 2 left!

0

38

Exmark 135-5778

TIP-SPRAY, #12 SPOT

$27.99

$

In Stock, only 2 left!

0

39

Exmark 142-0013

HOSE ASM-63,1/2,EPDM,WRAP

$41.99

$

Usually ships in 3-6 days

0

40

Exmark 135-5294

HOSE-SPRAY, WRAPPED

$30.99

$

Usually ships in 3-6 days

0

41

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 5

0

42

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

43

Exmark 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

44

Exmark 135-6484

Guard-Mesh

$23.99

$

In Stock, only 3 left!

0

45

Exmark 135-5740

GAUGE
(Superseded to 142-3437)

$42.99

$

In Stock, only 2 left!

0

46

Exmark 125-9088

FITTING-ELBOW, 90

$18.99

$

In Stock, only 2 left!

0
