ZS4230XL - Exmark Z-Spray Junior Stand-on Sprayer, 7 GPM Pump (SN: 404314159 - 406294344) (2019) Main Frame Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 7 GPM Pump

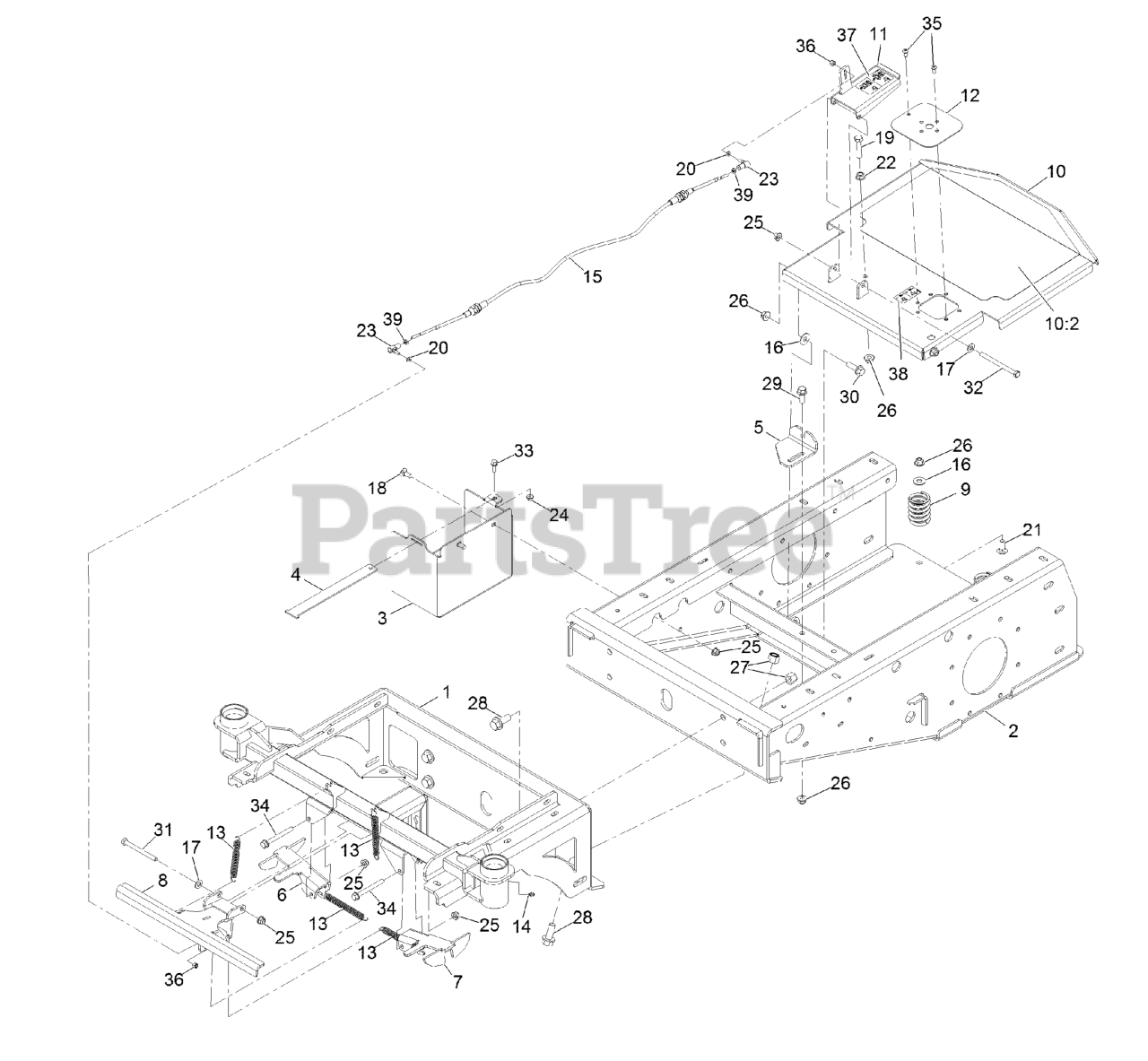

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 135-5179

Frame-Front

$1620.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5171

FRAME-REAR

$1457.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5199

Box-Battery

$111.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5493

STRAP-BATTERY

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 135-5494

Bracket, Lower Cable

$16.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5195

Wing-Capture, Rt

$38.99

$

In Stock, only 1 left!

0

7

Exmark 135-5194

Wing-Capture, Lt

$38.99

$

Usually ships in 3-6 days

0

8

Exmark 135-5369

Capture-Lcs

$81.99

$

Usually ships in 3-6 days

0

9

Exmark 135-5654

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

10

Exmark 135-5656

Plate-Foot
(Superseded to 135-7502)

$347.99

$

Usually ships in 3-6 days

0

10:2

Exmark 135-5655

PAD-GRIP

$36.99

$

Usually ships in 3-6 days

0

11

Exmark 135-5191

Pedal-Foot

$33.99

$

Usually ships in 3-6 days

0

12

Exmark 135-5561

Panel, Foot Switch

$9.49

$

Usually ships in 3-6 days

0

13

Exmark 135-5652

SPRING-EXTENSION

$3.99

$

In Stock, only 4 left!

0

14

Exmark 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 20+

0

15

Exmark 135-5644

CABLE-CASTER, LOCKING

$110.99

$

Usually ships in 3-6 days

0

16

Exmark 1126

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

17

Exmark 107-0279

WASHER

$1.99

$

In Stock, only 1 left!

0

18

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 126-0710

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

20

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

21

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

22

Exmark 135-6806

Nut-Hex Flange

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 135-5682

BALL JOINT-SS

$47.99

$

In Stock, only 2 left!

0

24

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

25

Exmark 135-6109

Nut-Hex Flange

$1.49

$

In Stock, Qty 13

0

26

Exmark 135-6110

Nut-Hex Flange

$1.49

$

Usually ships in 3-6 days

0

27

Exmark HDW14426

Nut,1/2-13,NYL INS,ST/ST,18-8

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 135-6207

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

29

Exmark 135-6208

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 135-6211

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

31

Exmark 135-6217

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

32

Exmark 135-6218

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

33

Exmark 135-6221

Screw-HHF

$1.49

$

In Stock, Qty 10

0

34

Exmark 135-6222

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

35

Exmark 135-6367

Screw-HSBH

$0.99

$

Usually ships in 3-6 days

0

36

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, Qty 6

0

37

Exmark 135-6430

Decal-Lock, Caster

$3.99

$

Usually ships in 3-6 days

0

38

Exmark 135-6728

Decal-Spray Foot Button

$2.99

$

Usually ships in 3-6 days

0

39

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

In Stock, only 1 left!

0
