ZS4630 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Spray Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump

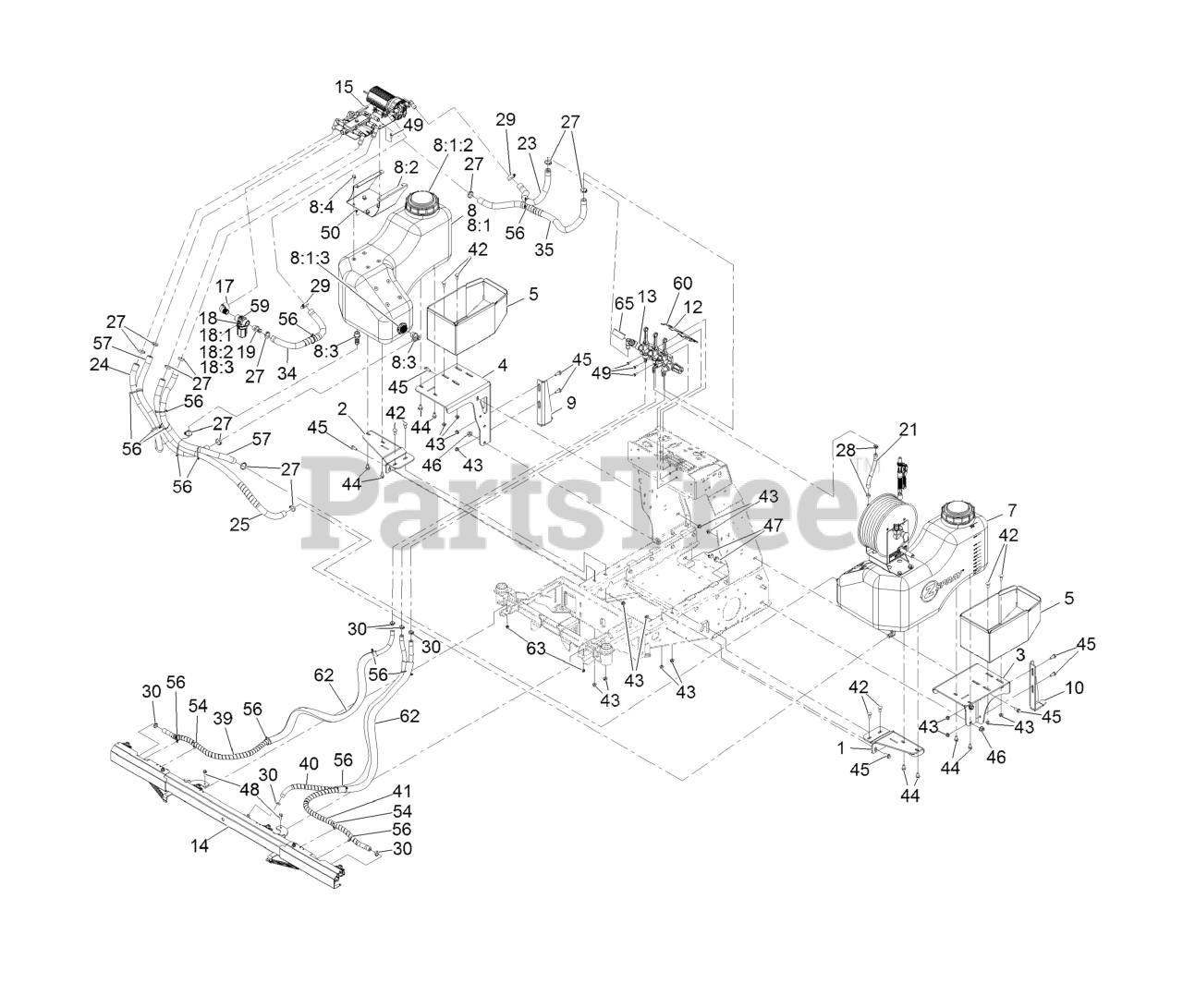

Spray Assembly Parts Diagram

  • Title

1

Exmark 135-5507

Mount-Tank, LH Wing

$113.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5508

Mount-Tank, RH Wing

$113.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5466

Mount-Box, Lt Fert

$332.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5468

Mount-Box, Rt Fert

$355.99

$

Usually ships in 3-6 days

0

5

Exmark 142-2446

BOX-FERT

$226.99

$

Usually ships in 3-6 days

0

7

ASM-Tank, Hose Reel

Note: Not serviced separately

$

$

Not available

8

ASM-Tank, Rt

Note: Not serviced separately

$

$

Not available

8:1

Exmark 142-3061

ASM-TANK, RT

$529.99

$

Usually ships in 3-6 days

0

8:1:2

Exmark 135-5916

CAP-TANK, SPRAY

$11.99

$

In Stock, only 4 left!

0

8:1:3

Exmark 126-4393

FITTING-BULKHEAD

$19.99

$

In Stock, only 3 left!

0

8:2

Exmark 135-5772

FITTING-ELBOW, 90

$2.49

$

In Stock, Qty 20+

0

8:3

Exmark 135-5545

PLATFORM, LIQUID VALVE MO

$41.99

$

Usually ships in 3-6 days

0

8:4

Exmark 135-7096

Screw-HHF

$4.49

$

Usually ships in 3-6 days

0

9

Exmark 135-5479

Bracket-Anti-Tip, Rt

$51.99

$

Usually ships in 3-6 days

0

10

Exmark 135-5477

Bracket-Anti-Tip, Lt

$51.99

$

Usually ships in 3-6 days

0

12

Exmark 135-5570-05

Bracket-Manifold

$19.99

$

Usually ships in 3-6 days

0

13

ASM-Manifold

Note: Not serviced separately

$

$

Not available

14

ASM-Boom, Spray

Note: Not serviced separately

$

$

Not available

15

ASM, Liquid Valve

Note: Not serviced separately

$

$

Not available

17

Exmark 132-7706

ELBOW-90DEG

$12.99

$

Usually ships in 3-6 days

0

18

Exmark 135-5765

STRAINER-INLINE

$31.99

$

In Stock, Qty 8

0

18:1

Exmark 126-7195

BOWL-STRAINER

$28.99

$

In Stock, Qty 8

0

18:2

Exmark 126-2272

GASKET-HEAD, LINE STRAINE

$10.99

$

In Stock, Qty 20+

0

18:3

Exmark 135-5766

Screen-Strainer, 50 Mesh

$22.99

$

In Stock, only 3 left!

0

19

Exmark 41257

HOSEBARB

$3.49

$

Usually ships in 3-6 days

0

21

Exmark 135-6162

Hose-Spray

$10.99

$

Usually ships in 3-6 days

0

23

Exmark 135-5324

Hose-Spray

$16.99

$

In Stock, only 2 left!

0

24

Exmark 135-5326

Hose-Spray

$17.99

$

Usually ships in 3-6 days

0

25

Exmark 135-5327

Hose-Spray, Wrapped

$44.99

$

Usually ships in 3-6 days

0

27

Exmark 135-5890

Clamp-Oetiker, 167

$3.49

$

In Stock, Qty 5

0

28

Exmark 135-5757

CLAMP-OETIKER, 167

$2.49

$

Usually ships in 3-6 days

0

29

Exmark 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

30

Exmark 135-5692

CLAMP-OETIKER, 167

$2.49

$

Usually ships in 3-6 days

0

34

Exmark 135-6481

Hose-Spray, Wrapped

$19.99

$

Usually ships in 3-6 days

0

35

Exmark 135-6480

Hose-Spray, Wrapped

$31.99

$

In Stock, only 1 left!

0

39

Exmark 135-5270

Hose-Spray, Wrapped

$63.99

$

Usually ships in 3-6 days

0

40

Exmark 135-5268

Hose-Spray, Wrapped

$42.99

$

Usually ships in 3-6 days

0

41

Exmark 135-5269

Hose-Spray, Wrapped

$63.99

$

Usually ships in 3-6 days

0

42

Exmark 126-0980

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

43

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

44

Exmark 135-6274

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

45

Exmark 135-6208

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

46

Exmark 135-6111

NUT-HEX FLANGE

$6.99

$

Usually ships in 3-6 days

0

47

Exmark 135-6207

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

48

Exmark 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 8

0

49

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 10

0

50

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

54

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

56

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

57

Exmark 135-6441

Hose-Spray

$19.99

$

Usually ships in 3-6 days

0

59

Exmark 135-6424

DECAL-CAP, STRAINER

$2.49

$

Usually ships in 3-6 days

0

60

Exmark 142-4366

Decal-Valve, Boom

$6.99

$

Usually ships in 3-6 days

0

62

Exmark 135-6484

Guard-Mesh

$22.99

$

In Stock, only 3 left!

0

63

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

65

Exmark 135-5740

GAUGE
(Superseded to 142-3437)

$39.99

$

Usually ships in 3-6 days

0

99

Exmark 3290-379

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, only 3 left!

0
