ZS4630 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump (SN: 411294212 - 413950473) (Rev A) (2022) Motion Control Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5 GPM Pump

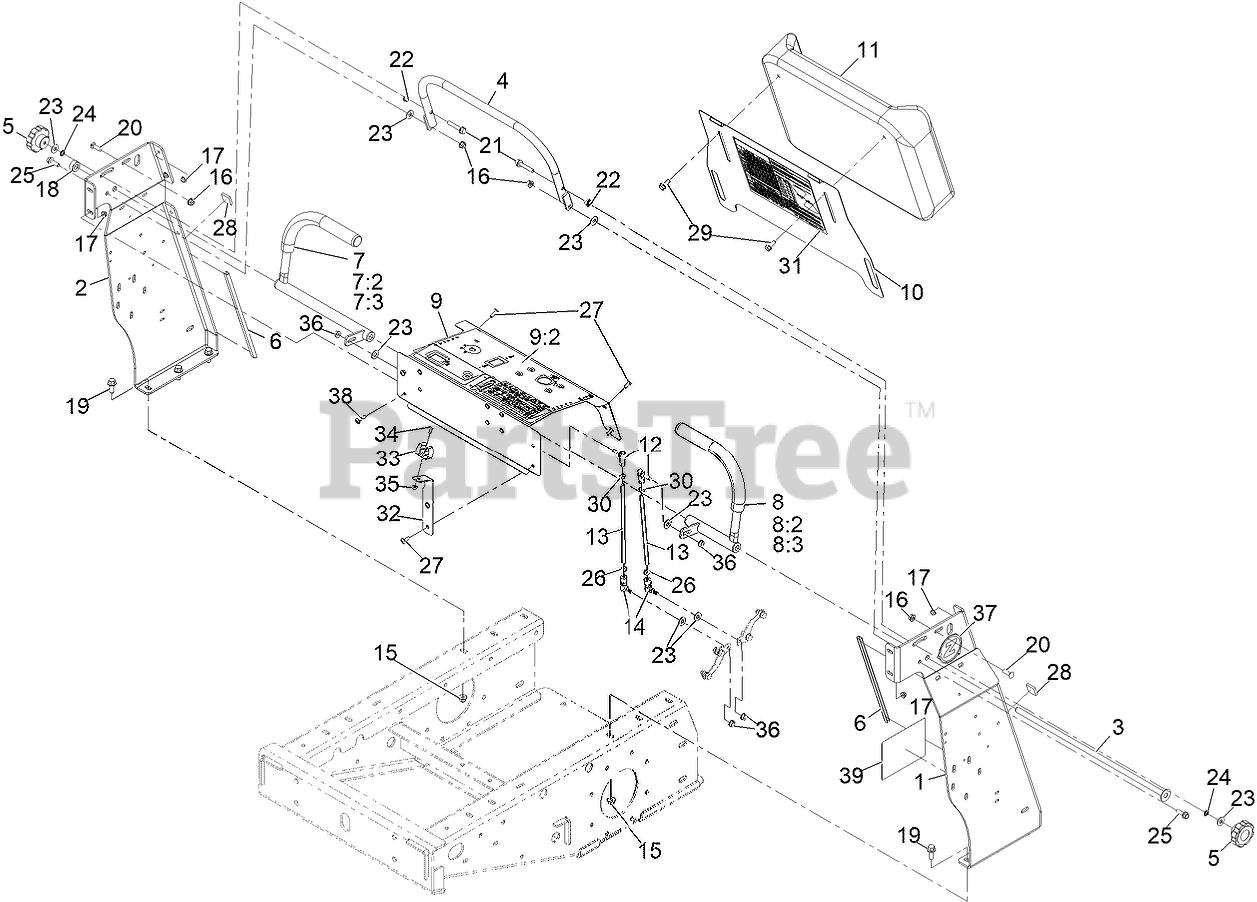

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 135-5423-05

Upright-Tower, Lt [blk-Txt]

$412.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5425-05

Upright-Tower, Rt [blk-Txt]

$412.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5430

Rod-Pivot, Joy Stick

$31.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5427-05

Bar-Speed [blk-Txt]

$73.99

$

Usually ships in 3-6 days

0

5

Exmark 135-5689

KNOB-FLUTED

$11.99

$

In Stock, only 2 left!

0

6

Exmark 135-5336

STRIP-TRIM, 12.0"

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 135-5738

Stick-Joy, Rt

$135.99

$

In Stock, only 1 left!

0

7:2

Exmark 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 4 left!

0

7:3

Exmark 143-0889

Bushing,Flange,0.50 ID,0.75 OD

$2.49

$

Usually ships in 3-6 days

0

8

Exmark 135-5739

Stick-Joy, Lt

$128.99

$

Usually ships in 3-6 days

0

8:2

Exmark 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 4 left!

0

8:3

Exmark 143-0889

Bushing,Flange,0.50 ID,0.75 OD

$2.49

$

Usually ships in 3-6 days

0

9

Exmark 142-3142

ASM-PANEL, CONTROL

$153.99

$

Usually ships in 3-6 days

0

9:2

Exmark 142-4183

Decal-Control Panel

$33.99

$

Usually ships in 3-6 days

0

10

Exmark 135-5498-05

PLATE-PAD, KNEE

$100.99

$

In Stock, only 2 left!

0

11

Exmark 142-3165

PAD-KNEE, Z-LOGO

$113.99

$

Usually ships in 3-6 days

0

12

Exmark 135-5257

Balljoint-SS

$20.99

$

Usually ships in 3-6 days

0

13

Exmark 135-5681

ROD-CONTROL, MOTION

$41.99

$

Usually ships in 3-6 days

0

14

Exmark 135-5718

Ball Joint-Quick Disconnect, SS

$17.99

$

Usually ships in 3-6 days

0

15

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

16

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

17

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

18

Exmark 135-6192

Collar

$35.99

$

Usually ships in 3-6 days

0

19

Exmark 135-6208

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

20

Exmark HDW17294

Bolt,Carriage,5/16-18X1,ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 135-5779

Screw-HHF

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 118-1722

Nut,Hex Flange,5/16-18,Sst, Rie2006

$0.99

$

Usually ships in 3-6 days

0

23

Exmark HDW14535

FLAT WASHER, 5/16 NOM,ST

$1.49

$

In Stock, only 3 left!

0

24

Exmark 135-6286

Washer-Lock

$0.99

$

Usually ships in 3-6 days

0

25

Exmark 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 8

0

26

Exmark 107-0282

Nut-Hex

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 135-7080

Screw-Hsbhf

$3.49

$

In Stock, Qty 8

0

28

Exmark 93-9155

Velcro

$1.99

$

Usually ships in 3-6 days

0

29

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, only 4 left!

0

30

Exmark 135-6512

Nut-Hex

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 142-8036

DECAL-SPRAY CHART

$16.99

$

Usually ships in 3-6 days

0

32

Exmark 135-5506-05

Mount-Gun

$17.99

$

Usually ships in 3-6 days

0

33

Exmark 135-5661

Holder-Tool, Clip

$4.99

$

Usually ships in 3-6 days

0

34

Exmark 135-6374

Screw-HSBH

$0.99

$

Usually ships in 3-6 days

0

35

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, Qty 8

0

36

Exmark 107-0380

Nut-HHF

$5.99

$

Usually ships in 3-6 days

0

37

Exmark 142-3051

Decal-Z-Logo

$4.99

$

Usually ships in 3-6 days

0

38

Exmark 135-7081

Screw-Hsbhf

$3.49

$

Usually ships in 3-6 days

0

39

Exmark 142-3911

Decal-Service Aid

$8.99

$

Usually ships in 3-6 days

0
