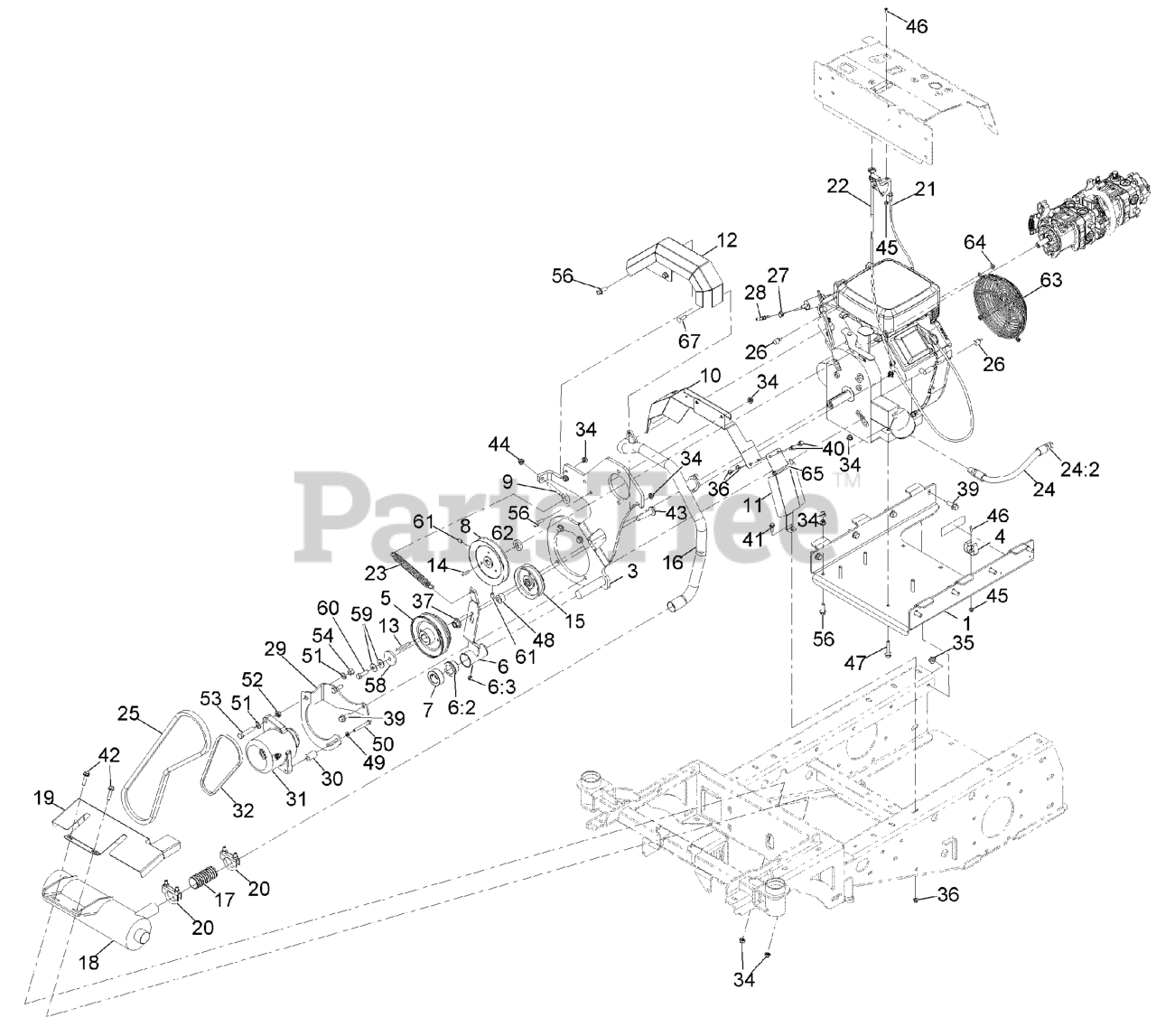

ZS4630XL - Exmark Z-Spray Intermediate Stand-on Sprayer, 7 GPM Pump (SN: 404314159 - 406294344) (2019) Engine Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 7 GPM Pump

Engine Assembly Parts Diagram

  • Title

1

Exmark 135-5492

Tray-Engine

$376.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5453-03

Bracket-Engine, Pump [black]

$199.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5661

Holder-Tool, Clip

$4.49

$

Usually ships in 3-6 days

0

5

Exmark 135-6394

Pulley-Double

$107.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5669

Arm-Tension, ASM

$53.99

$

Usually ships in 3-6 days

0

6:2

Exmark 256-132

BUSHING-FLANGE

$8.49

$

In Stock, only 2 left!

0

6:3

Exmark 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 20+

0

7

Exmark 135-5382

Collar

$7.99

$

Usually ships in 3-6 days

0

8

Exmark 135-5663

PULLEY-DRIVE, PUMP

$37.99

$

Usually ships in 3-6 days

0

9

Exmark 135-5667

Bolt-Eye

$4.49

$

Usually ships in 3-6 days

0

10

Exmark 135-5565

Guard, Lower Muffler

$51.99

$

Usually ships in 3-6 days

0

11

Exmark 135-5566

Guard, Lower Muffler

$28.99

$

Usually ships in 3-6 days

0

12

Exmark 135-5552

Guard-Pulley

$57.99

$

Usually ships in 3-6 days

0

13

Exmark 103-4177

KEY

$5.49

$

In Stock, only 1 left!

0

14

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 10

0

15

Exmark 135-5662

PULLEY-IDLER, FLAT

$28.99

$

Usually ships in 3-6 days

0

16

Exmark 135-5670

Manifold-Exhaust

$156.99

$

In Stock, only 1 left!

0

17

Exmark 135-5658

TUBE-EXHAUST, FLEX

$27.99

$

In Stock, only 1 left!

0

18

Exmark 135-5685

MUFFLER

$315.99

$

In Stock, only 1 left!

0

19

Exmark 135-5568

SHIELD-HEAT, MUFFLER

$32.99

$

In Stock, Qty 5

0

20

Exmark 2112-11

Clamp-Muffler

$7.99

$

In Stock, Qty 5

0

21

Exmark 135-5260

CABLE-THROTTLE

$47.99

$

In Stock, Qty 5

0

22

Exmark 135-5707

CABLE-CHOKE

$47.99

$

In Stock, only 1 left!

0

23

Exmark 135-5780

SPRING-EXTENSION

$25.99

$

In Stock, only 1 left!

0

24

Exmark 135-5365

ASM, Oil Drain Hose W/Plug

$36.99

$

In Stock, only 4 left!

0

24:2

Exmark AU218-774

Plug

$

$

Not available

25

Exmark 135-5664

BELT-V

$42.99

$

In Stock, Qty 5

0

26

Exmark 135-5677

Tube-Heat Shrink, 1/2

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

28

Exmark 135-5678

BARB-FUEL

$1.49

$

Usually ships in 3-6 days

0

29

Exmark 135-5929

Bracket-Alternator

$50.99

$

Usually ships in 3-6 days

0

30

Exmark 135-5930

TUBE-SUPPORT, ALTERNATOR

$3.49

$

Usually ships in 3-6 days

0

31

Exmark 135-6057

ALTERNATOR

$345.99

$

Usually ships in 3-6 days

0

32

Exmark 135-6613

Belt-V, 3L240

$15.99

$

In Stock, Qty 5

0

34

Exmark 135-6109

Nut-Hex Flange

$1.49

$

In Stock, Qty 11

0

35

Exmark 135-6110

Nut-Hex Flange

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

37

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

39

Exmark 135-6208

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

40

Exmark 135-6280

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

41

Exmark 135-6221

Screw-HHF

$1.49

$

In Stock, Qty 10

0

42

Exmark 135-6261

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

43

Exmark 3234-46

Screw-HHF

$14.99

$

Usually ships in 3-6 days

0

44

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

45

Exmark 135-6342

Nut-Hex Flange

$1.99

$

In Stock, Qty 16

0

46

Exmark 135-6374

Screw-HSBH

$0.99

$

Usually ships in 3-6 days

0

47

Exmark 135-5779

Screw-HHF

$2.99

$

Usually ships in 3-6 days

0

48

Exmark 116-2959

Spacer

$6.99

$

Usually ships in 3-6 days

0

49

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

50

Exmark 120-9642

Screw-HH

$3.99

$

Usually ships in 3-6 days

0

51

Exmark 33095-00

Washer-Flat

$0.99

$

Usually ships in 3-6 days

0

52

Exmark 110-9346

Nut-Hex

$1.49

$

Usually ships in 3-6 days

0

53

Exmark 33115-050

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

54

Exmark 33025-00

Nut-Lock, NI

$1.49

$

Usually ships in 3-6 days

0

56

Exmark 135-6272

SCREW-HHF

$2.99

$

In Stock, Qty 10

0

58

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

In Stock, Qty 20+

0

59

Exmark 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

60

Exmark 3211-5

Screw-HH

$3.49

$

In Stock, Qty 5

0

61

Exmark 3246-17

Setscrew-HSH

$1.49

$

In Stock, only 2 left!

0

62

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

63

Exmark 135-6554

GUARD-WIRE, VANGUARD

$63.99

$

In Stock, only 1 left!

0

64

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

65

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

67

Exmark HDW17294

Bolt,Carriage,5/16-18X1,ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0
