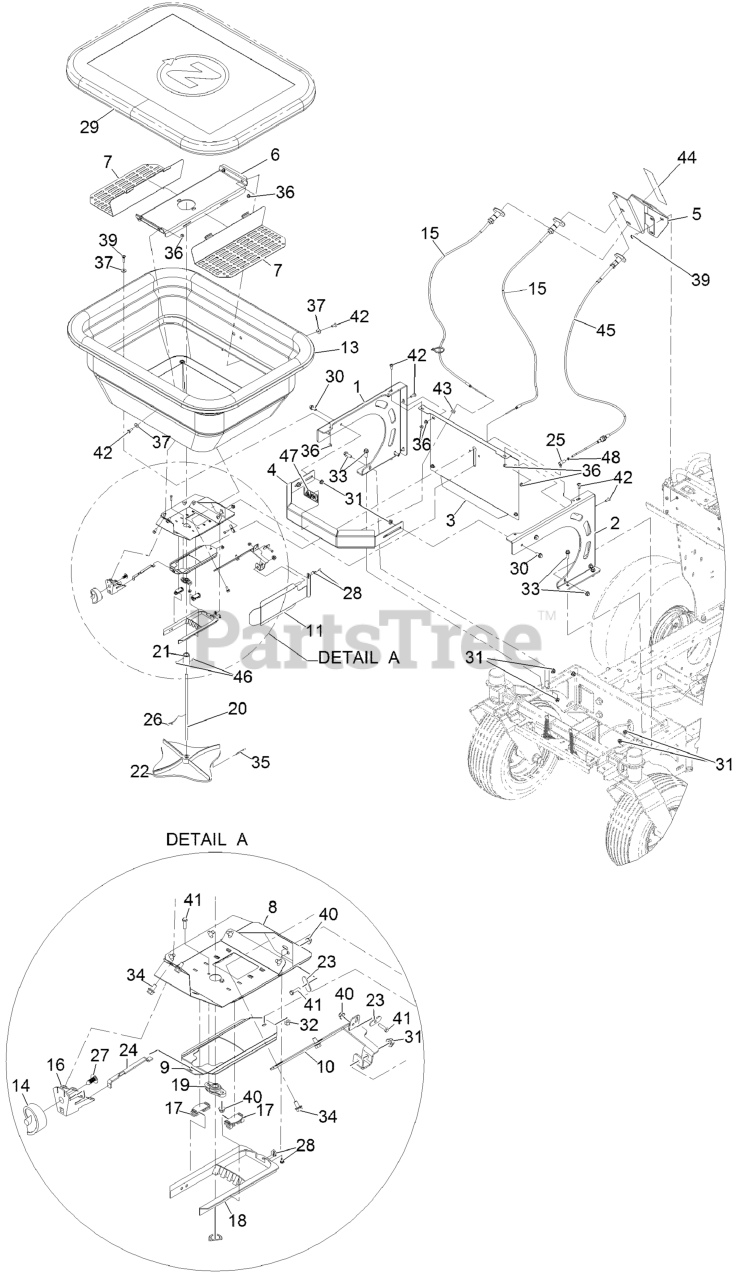

ZS5260 - Exmark Z-Spray Z-Max Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Hopper Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 5 GPM Pump

Hopper Assembly Parts Diagram

  • Title

1

Exmark 135-5391

Side-Hopper, Rt

$215.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5393

Side-Hopper, Lt

$234.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5571

Backshield-Hopper

$86.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5567

BUMPER-FRONT, HOPPER

$63.99

$

In Stock, only 1 left!

0

5

Exmark 142-3283-05

MOUNT-SPEEDOMETER

$81.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5542

PAN-HOPPER, 220

$82.99

$

Usually ships in 3-6 days

0

7

Exmark 135-5544

SCREEN-HOPPER, 220

$48.99

$

In Stock, only 1 left!

0

8

Exmark 135-5572

PLATE-BASE, HOPPER

$39.99

$

In Stock, only 2 left!

0

9

Exmark 135-5573

Slide-Door, Hopper

$13.99

$

In Stock, only 2 left!

0

10

Exmark 135-5388

Mount-Deflector, Side

$42.99

$

Usually ships in 3-6 days

0

11

Exmark 135-5589

Deflector-Side, Spreader

$66.99

$

Usually ships in 3-6 days

0

13

Exmark 135-5985

HOPPER-220LB

$462.99

$

Usually ships in 3-6 days

0

14

Exmark 126-0988

DIAL
(Superseded to 142-3359)

$13.99

$

In Stock, Qty 16

0

15

Exmark 135-5931

CABLE-PUSH/PULL

$63.99

$

In Stock, only 1 left!

0

16

Exmark 126-0985

MOUNT-DIAL
(Superseded to 142-3319)

$3.49

$

In Stock, Qty 20+

0

17

Exmark 126-0990

GUIDE-RATE, GATE
(Superseded to 142-3316)

$2.49

$

In Stock, Qty 20+

0

18

Exmark 126-0991

DIFFUSER

$39.99

$

In Stock, only 4 left!

0

19

Exmark 135-5943

BEARING-FLANGE

$6.49

$

In Stock, Qty 16

0

20

Exmark 135-5936

SHAFT-HOPPER, 220

$48.99

$

In Stock, only 2 left!

0

21

Exmark 135-5937

COUPLER-SS

$33.99

$

Usually ships in 3-6 days

0

22

Exmark 135-5954

SPINNER-SPREADER
(Superseded to 142-3506)

$47.99

$

In Stock, only 4 left!

0

23

Exmark 135-5569

RETAINER, CABLE

$2.49

$

In Stock, Qty 5

0

24

Exmark 135-5965

LINKAGE-GATE, RATE

$31.99

$

In Stock, Qty 12

0

25

Exmark 135-5682

BALL JOINT-SS

$57.99

$

In Stock, only 2 left!

0

26

Exmark 135-5957

WIRE-AGITATOR
(Superseded to 142-3666)

$4.99

$

In Stock, Qty 15

0

27

Exmark 126-0986

CLIP
(Superseded to 88-1080)

$9.99

$

In Stock, only 2 left!

0

28

Exmark 135-5961

RETAINER-CABLE, WIRE

$5.49

$

In Stock, only 3 left!

0

29

Exmark 142-3082

COVER-HOPPER, LARGE

$74.99

$

In Stock, only 2 left!

0

30

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, only 4 left!

0

31

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

32

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, only 4 left!

0

33

Exmark 135-6272

SCREW-HHF

$3.49

$

In Stock, Qty 8

0

34

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

35

Exmark 135-6340

PIN-COTTER

$2.49

$

In Stock, Qty 9

0

36

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

37

Exmark 135-6341

Washer

$1.99

$

Usually ships in 3-6 days

0

39

Exmark 135-7081

Screw-Hsbhf

$3.99

$

Usually ships in 3-6 days

0

40

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, only 4 left!

0

41

Exmark 135-6356

SCREW-HH

$1.99

$

In Stock, Qty 6

0

42

Exmark 135-7080

Screw-Hsbhf

$3.49

$

In Stock, Qty 8

0

43

Exmark 135-5988

Grommet-Rubber

$2.49

$

Usually ships in 3-6 days

0

44

Exmark 142-4365

Decal-Hopper Control

$7.49

$

Usually ships in 3-6 days

0

45

Exmark 135-5935

CABLE-PUSH/PULL

$127.99

$

In Stock, only 2 left!

0

46

Exmark 3241-7

Screw-SQH

$3.99

$

In Stock, only 3 left!

0

47

Exmark 135-6725

Decal-Dismemberment Hazard

$4.99

$

Usually ships in 3-6 days

0

48

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

Usually ships in 3-6 days

0

50

Exmark 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 10

0
