ZS5260 - Exmark Z-Spray Z-Max Stand-on Sprayer, 5 GPM Pump (SN: 406294345 - 408644345) (Rev A) (2020) Tire and Wheel Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 5 GPM Pump

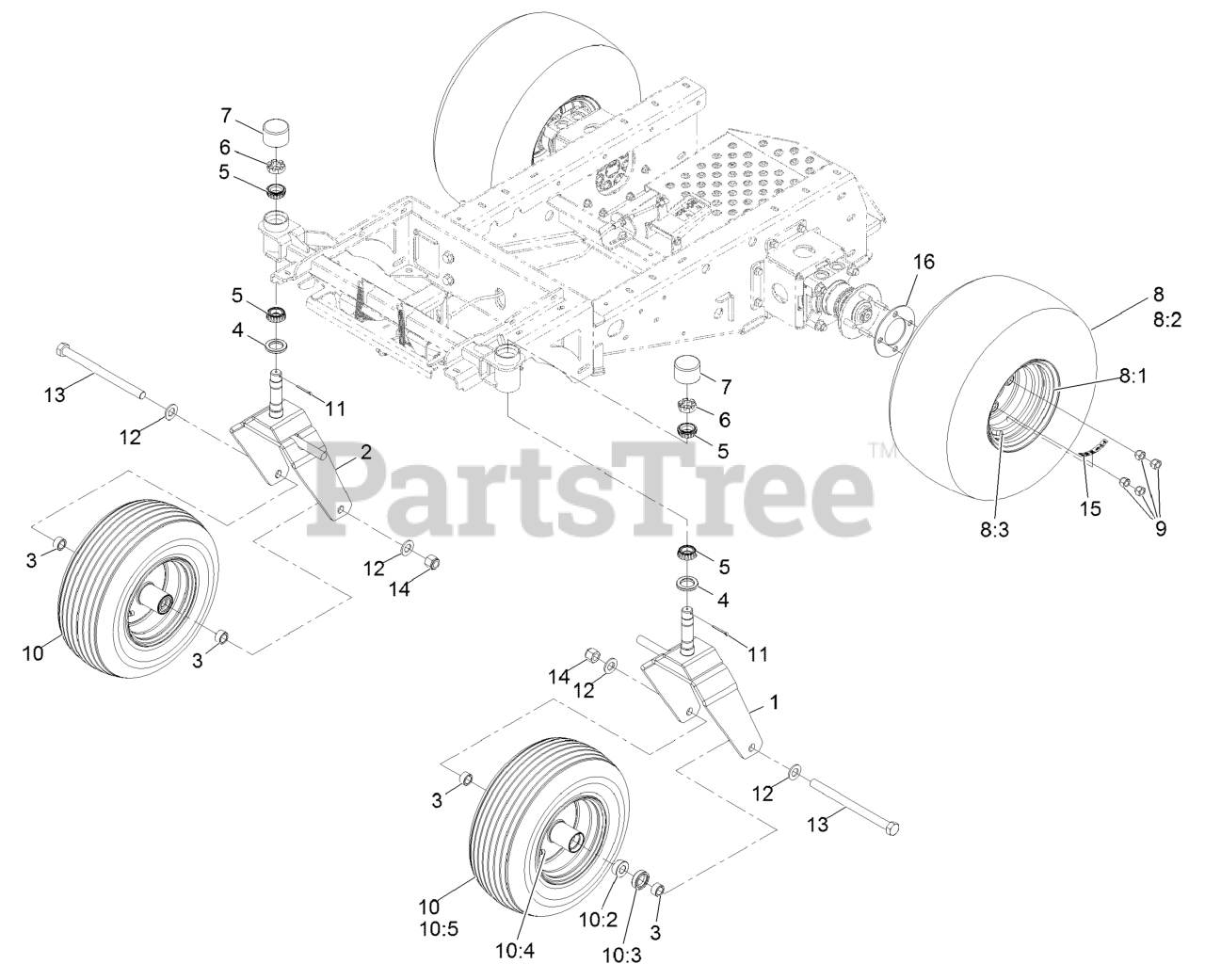

Tire and Wheel Assembly Parts Diagram

  • Title

1

Exmark 135-5441-01

X-REF TO 135-5441-03

$227.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5446-01

X-REF TO 135-5446-03

$227.99

$

Usually ships in 3-6 days

0

3

Exmark 135-5683

SPACER-AXLE

$3.49

$

In Stock, Qty 8

0

4

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 6

0

5

Exmark 254-92

CONE-BEARING, OUTER

$20.99

$

In Stock, only 3 left!

0

6

Exmark 1-809082

NUT-SHH

$15.99

$

In Stock, only 2 left!

0

7

Exmark 135-5756

CAP-DUST, RUBBER

$3.99

$

In Stock, only 2 left!

0

8

Exmark 135-5968

WHEEL AND TIRE ASM
(Superseded to 142-5507)

$215.99

$

Usually ships in 3-6 days

0

8:1

Exmark 135-5969

Rim-8 X 7, Black

$88.99

$

In Stock, only 1 left!

0

8:2

Exmark 120-6466

TIRE

$139.99

$

Usually ships in 3-6 days

0

8:3

Exmark 232-27

Stem-Valve

$

$

Not available

9

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

10

Exmark 135-5974

WHEEL AND TIRE

$128.99

$

Usually ships in 3-6 days

0

10:2

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$23.99

$

In Stock, Qty 17

0

10:3

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, only 3 left!

0

10:4

Exmark 5108

VALVE

$7.99

$

In Stock, Qty 6

0

10:5

Exmark 135-5976

Tire-Rib

$99.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6292

Pin-Cotter

$1.99

$

In Stock, Qty 5

0

12

Exmark 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

13

Exmark 135-6300

SCREW-HH

$17.99

$

In Stock, only 2 left!

0

14

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

15

Exmark 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.99

$

In Stock, Qty 11

0

16

Exmark 116-5362

SPACER-WHEEL

$18.99

$

Usually ships in 3-6 days

0
