ZSL3620 - Exmark Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump (SN: 416150475 - 417930745) (Rev A) (2024) Spreader Hopper Assembly Parts Diagram

Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump

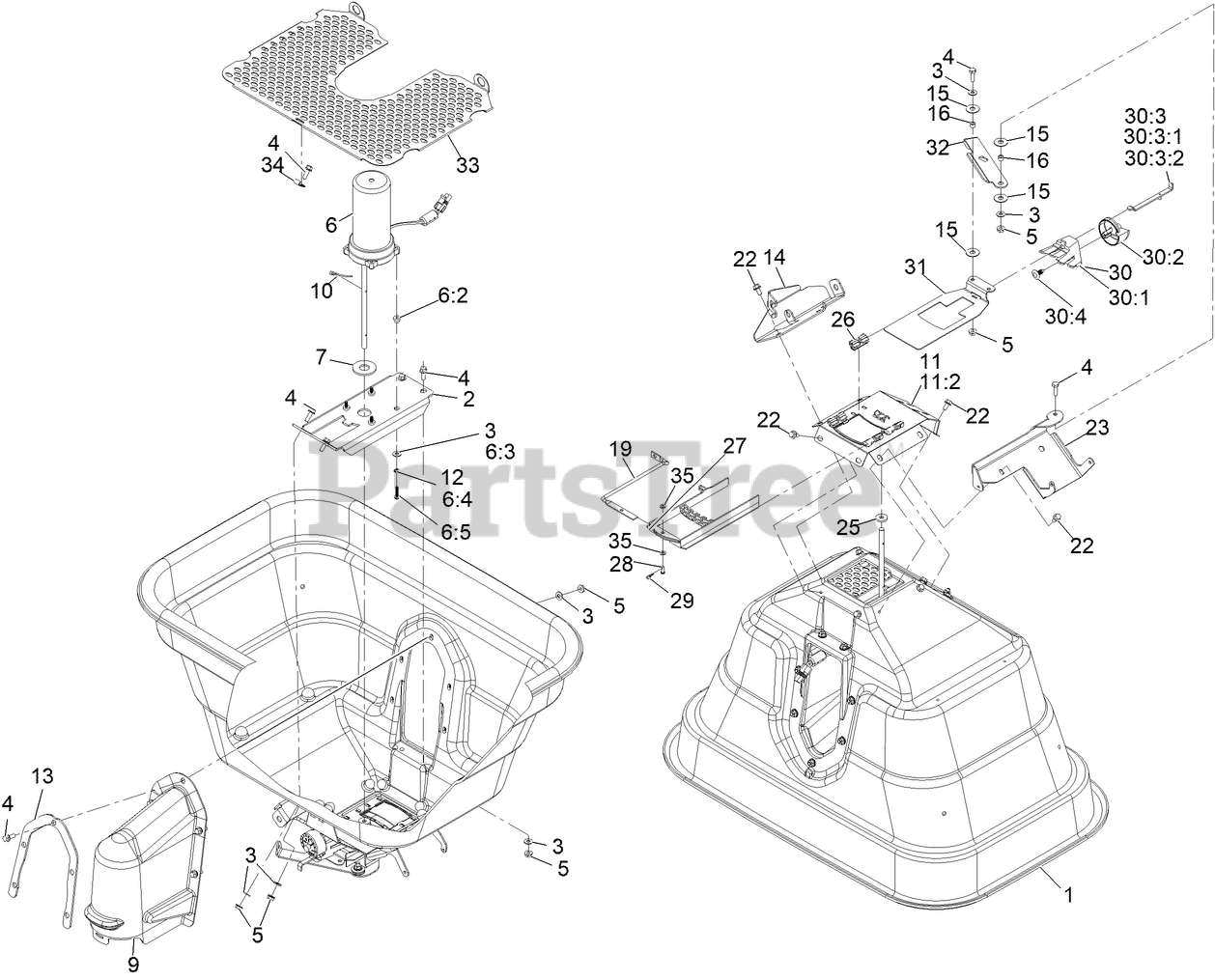

Spreader Hopper Assembly Parts Diagram

  • Title

1

Exmark 142-2734

Hopper-Spreader, 175 Lb

$456.99

$

Usually ships in 3-6 days

0

2

Exmark 126-4245

BRACKET-MOUNT, MOTOR

$84.99

$

Usually ships in 3-6 days

0

3

Exmark 360-0140

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Exmark 126-0498

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

5

Exmark 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

6

Exmark 126-6231

SPREADER MOTOR ASM

$701.99

$

Usually ships in 3-6 days

0

6:2

Exmark 135-3989

SPACER-FLANGED

$5.49

$

Usually ships in 3-6 days

0

6:3

Exmark 360-0140

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6:4

Exmark 363-8641

WASHER-LOCK, INT

$0.99

$

In Stock, Qty 10

0

6:5

Exmark 739001

SCREW-SHWH

$1.49

$

In Stock, Qty 6

0

7

Exmark 83-2400

SPACER

$7.99

$

In Stock, only 3 left!

0

9

Exmark 126-1348

COVER-MOTOR

$149.99

$

Usually ships in 3-6 days

0

10

Exmark 142-3666

WIRE-AGITATOR

$4.99

$

In Stock, Qty 17

0

11

Exmark 142-4040

HOPPER PLATE W/ BEARING ASM

$68.99

$

Usually ships in 3-6 days

0

11:2

Exmark 142-4042

HOPPER BOTTOM BEARING

$1.99

$

In Stock, only 4 left!

0

12

Exmark 363-8641

WASHER-LOCK, INT

$0.99

$

In Stock, Qty 10

0

13

Exmark 126-6334

FLANGE-COVER, MOTOR

$30.99

$

Usually ships in 3-6 days

0

14

Exmark 126-4650

BRACKET-HOPPER, GATE CONT

$64.99

$

Usually ships in 3-6 days

0

15

Exmark 93-1633

WASHER

$3.49

$

In Stock, Qty 10

0

16

Exmark 126-3684

SPACER

$6.99

$

In Stock, only 3 left!

0

19

Exmark 126-1646

ROD-CONTROL, DIFFUSER

$37.99

$

Usually ships in 3-6 days

0

22

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

23

Exmark 142-3602

BRACKET-LEVER, HOPPER GATE

$51.99

$

Usually ships in 3-6 days

0

25

Exmark 142-3665

WASHER-FELT

$2.49

$

Usually ships in 3-6 days

0

26

Exmark 142-3316

GUIDE-RATE, GATE

$2.49

$

In Stock, Qty 20+

0

27

Exmark 142-3406

DIFFUSER

$9.49

$

In Stock, only 3 left!

0

28

Exmark 126-3729

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

29

Exmark 126-1631

PIN-COTTER, HAIR

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 142-3821

RATE DIAL ASM

$71.99

$

In Stock, only 1 left!

0

30:1

Exmark 142-3319

MOUNT-DIAL

$3.49

$

In Stock, Qty 20+

0

30:2

Exmark 142-3359

Dial

$13.99

$

In Stock, Qty 17

0

30:3

Rate Gate Link ASM

Note: Not serviced separately

$

$

Not available

30:3:1

Exmark 126-0987

LINK-GATE, RATE

$37.99

$

Usually ships in 3-6 days

0

30:3:2

Exmark 126-4196

SCREW-SHOULDER, SLOTTED

$12.99

$

In Stock, only 1 left!

0

30:4

Exmark 88-1080

Footpad Fastener

$9.99

$

In Stock, only 2 left!

0

31

Exmark 142-4342

RATE GATE

$19.99

$

Usually ships in 3-6 days

0

32

Exmark 126-4112

LEVER-GATE

$21.99

$

Usually ships in 3-6 days

0

33

Exmark 126-3143

SCREEN-HOPPER, LARGE HOLE

$275.99

$

Usually ships in 3-6 days

0

33

Exmark 126-3240

SCREEN-HOPPER, MEDIUM HOL

$249.99

$

Usually ships in 3-6 days

0

33

Exmark 126-3242

SCREEN-HOPPER, SMALL HOLE

$275.99

$

Usually ships in 3-6 days

0

34

Exmark 126-1624

CLAMP-LOOP

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0
