ZSL3620 - Exmark Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump (SN: 417930746 & Above) (Rev A) (2025) Engine Assembly Parts Diagram

Z-Spray LTS Stand-on Sprayer, 3.8 GPM Pump

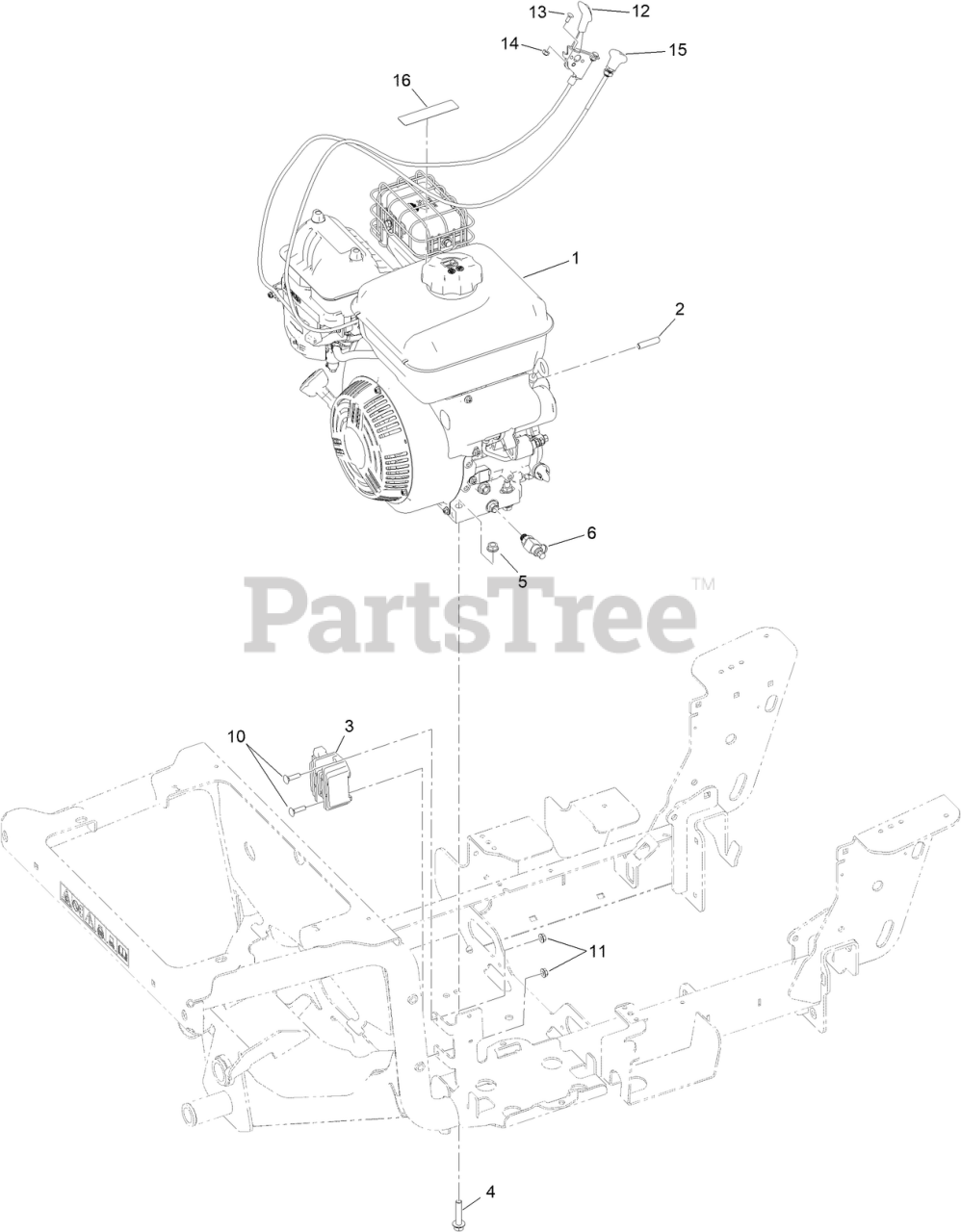

Engine Assembly Parts Diagram

  • Title

1

Exmark 146-5936

Engine-Briggs, Bv307

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

2

Exmark 135-3980

KEY-SQUARE, 7MM

$6.49

$

Usually ships in 3-6 days

0

3

Exmark 135-7026

REGULATOR-TROMBETTA, 18A

$129.99

$

Usually ships in 3-6 days

0

4

Exmark 126-2710

SCREW-HHF

$13.99

$

Usually ships in 3-6 days

0

5

Exmark 135-2882

NUT-HF

$2.99

$

In Stock, only 4 left!

0

6

Exmark 126-9978

Valve-Drain, Oil

$50.99

$

Usually ships in 3-6 days

0

10

Exmark 126-1455

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 135-2880

NUT-HF

$1.49

$

In Stock, only 1 left!

0

12

Exmark 116-4919

CONTROL,THROTTLE

$45.99

$

In Stock, only 2 left!

0

13

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

14

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

15

Exmark 146-4961

Cable-Choke, Push/Pull

$

$

Currently unavailable

16

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0
