ZSX3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump (SN: 416150475 - 417930745) (Rev B) (2024) Engine Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump

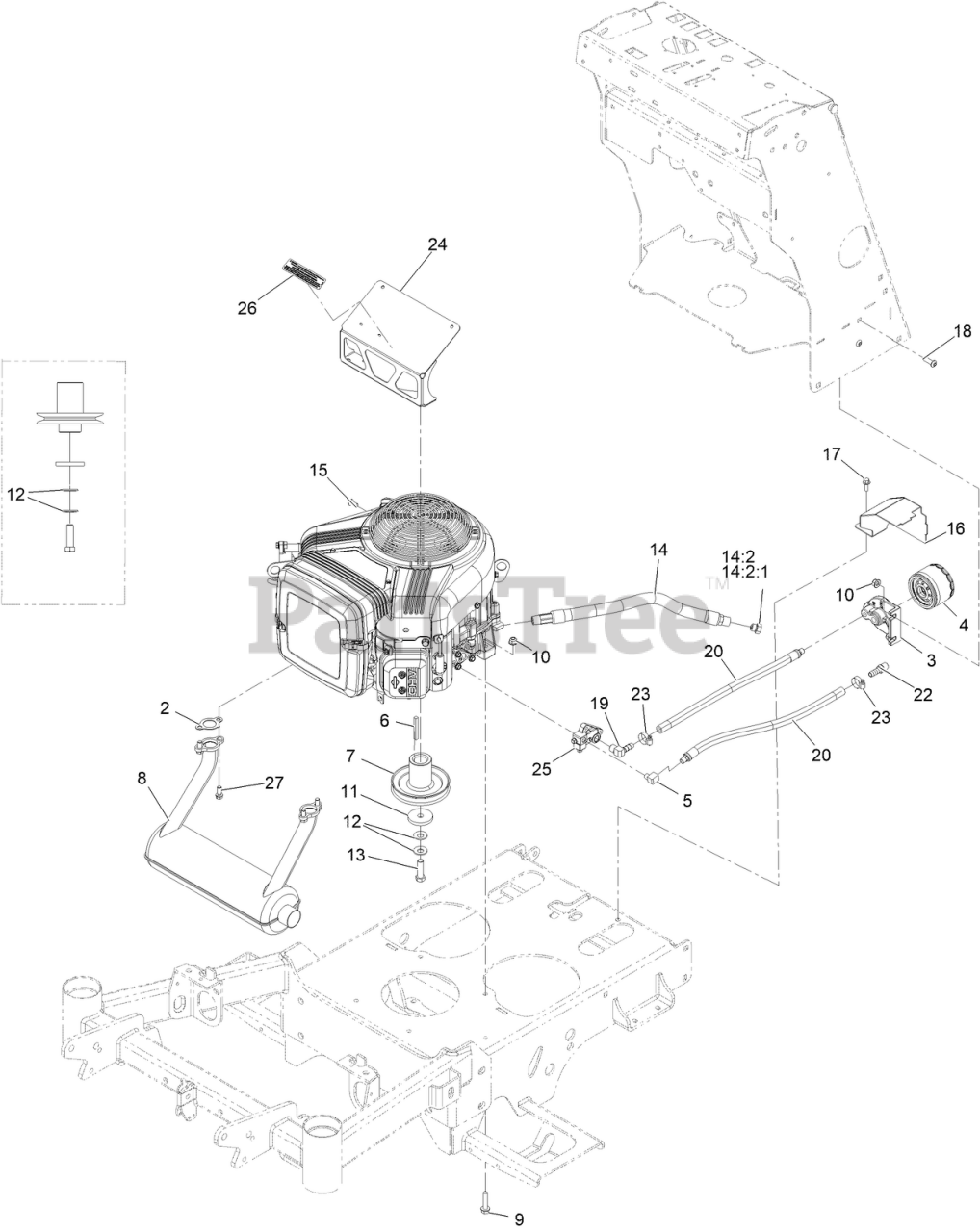

Engine Assembly Parts Diagram

  • Title

2

Exmark 94-3449

USE 94-5844
(Superseded to 94-5844)

$15.99

$

In Stock, only 2 left!

0

3

Exmark 142-7348

MOUNT-FILTER, REMOTE

$31.99

$

Usually ships in 3-6 days

0

4

Exmark 142-7347

FILTER-OIL

$12.99

$

Usually ships in 0 days

0

5

Exmark 142-7351

ELBOW-PIPE, 90

$3.49

$

Usually ships in 0 days

0

6

Exmark 103-4177

KEY

$5.49

$

In Stock, only 2 left!

0

7

Exmark 142-9341

PULLEY-ENGINE

$38.99

$

Usually ships in 0 days

0

8

Exmark 135-9245

BRIGGS 16/18 HP MUFFLER

$187.99

$

Usually ships in 3-6 days

0

9

Exmark 142-0559

5/16-18X 1-1/2 HEX FLANGE
(Superseded to 323-43)

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

11

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 5

0

12

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 7

0

13

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, only 1 left!

0

14

Exmark 116-5316

OIL DRAIN HOSE ASM

$60.99

$

In Stock, Qty 15

0

14:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

14:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

15

Exmark 110-0032

SCREW-BHTORX

$3.49

$

Usually ships in 0 days

0

16

Exmark 142-7608

COVER-FILTER

$42.99

$

Usually ships in 3-6 days

0

17

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 10

0

18

Exmark 119-6903

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

19

Exmark 354-93

FITTING-ELBOW, 90

$27.99

$

Usually ships in 3-6 days

0

20

Exmark 142-7865

HOSE AM, HYD LP

$33.99

$

Usually ships in 3-6 days

0

22

Exmark 146-0645

FITTING-STRAIGHT

$5.49

$

Usually ships in 0 days

0

23

Exmark 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 8

0

24

Exmark 142-7880

BRACKET-ENGINE

$122.99

$

Usually ships in 3-6 days

0

25

Exmark 142-7350

ADAPTER-ASM, SERVICE

$110.99

$

Usually ships in 3-6 days

0

26

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

27

Exmark 3274-96

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0
