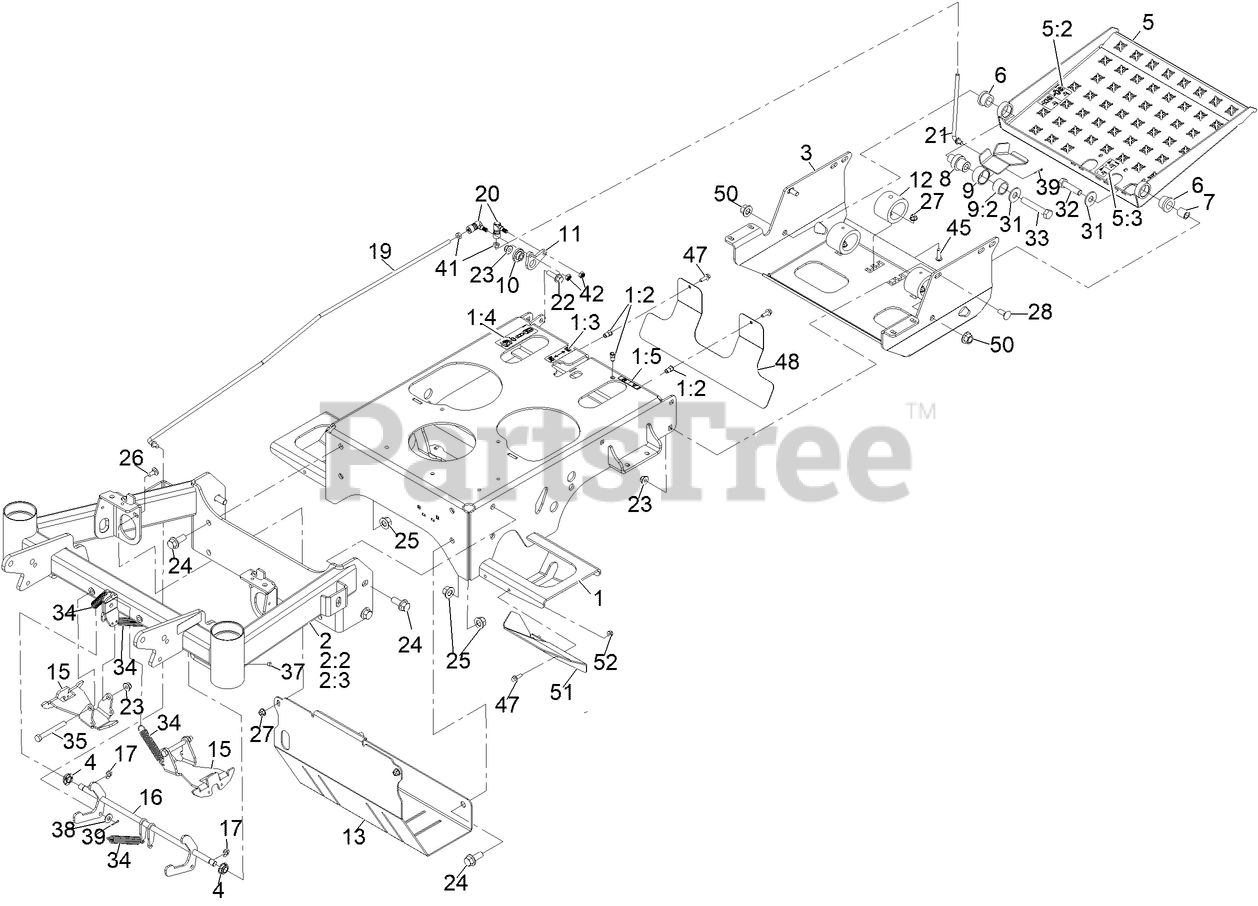

ZSX3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump (SN: 416150475 - 417930745) (Rev B) (2024) Main Frame Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-7607

FRAME-REAR, JR36

$2525.99

$

Usually ships in 0 days

0

1:2

Exmark 138-2758

NUT-CLINCH,HEX

$1.99

$

In Stock, only 1 left!

0

1:3

Exmark 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

1:4

Exmark 142-8173

DECAL-STRAINER

$8.99

$

Usually ships in 3-6 days

0

1:5

Exmark 144-6742

Decal-Hot Surface

$

$

Currently unavailable

2

Exmark 142-7894

FRAME-FRONT, JR36

$2525.99

$

Usually ships in 0 days

0

2:2

Exmark 137-2374

BUSHING-FLANGE

$

$

Currently unavailable

2:3

Exmark 120-0625

DECAL-WARNING, PINCH POIN

$4.99

$

Usually ships in 3-6 days

0

3

Exmark 142-8954

MOUNT-FOOTPLATE, JR36

$641.99

$

Usually ships in 0 days

0

4

Exmark 126-5820

BEARING-SPHERICAL

$8.99

$

Usually ships in 3-6 days

0

5

Exmark 142-6884

FOOT PLATE W/DECALS

$575.99

$

Usually ships in 0 days

0

5:2

Exmark 135-6430

Decal-Lock, Caster

$4.99

$

Usually ships in 3-6 days

0

5:3

Exmark 135-6728

Decal-Spray Foot Button

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 142-6033

BUSHING-RUBBER

$1.99

$

Usually ships in 3-6 days

0

7

Exmark 142-6034

SPACER

$4.49

$

Usually ships in 3-6 days

0

8

Exmark 142-6878

PIVOT-PEDAL, CASTER

$56.99

$

Usually ships in 3-6 days

0

9

Exmark 142-4222

PEDAL-LOCK, CASTER

$92.99

$

Usually ships in 0 days

0

9:2

Exmark 116-9538

BUSHING

$17.99

$

Usually ships in 3-6 days

0

10

Exmark 126-5989

PIVOT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 142-3960

CRANK-DEFLECTOR

$20.99

$

Usually ships in 3-6 days

0

12

Exmark 135-2548

BUMPER-ISOLATOR

$21.99

$

Usually ships in 3-6 days

0

13

Exmark 142-8930

GUARD-MUFFLER

$199.99

$

Usually ships in 3-6 days

0

15

Exmark 142-4431

ARM-LOCK, CASTER

$77.99

$

Usually ships in 3-6 days

0

16

Exmark 142-5594

CRANK-LOCK, CASTER

$148.99

$

Usually ships in 3-6 days

0

17

Exmark 142-4698

RING-E

$2.49

$

Usually ships in 3-6 days

0

19

Exmark 142-8931

LINKAGE-LOCK, CASTER

$77.99

$

Usually ships in 3-6 days

0

20

Exmark 135-5718

Ball Joint-Quick Disconnect, SS

$19.99

$

Usually ships in 3-6 days

0

21

Exmark 142-6885

LINKAGE-PEDAL, CASTER

$46.99

$

Usually ships in 0 days

0

22

Exmark 135-6211

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 17

0

24

Exmark 135-6207

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 135-6111

NUT-HEX FLANGE

$7.49

$

In Stock, only 1 left!

0

26

Exmark 126-0695

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

27

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

28

Exmark 126-0980

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

31

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

32

Exmark 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

33

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, Qty 10

0

34

Exmark 126-2127

SPRING-EXTENSION

$8.49

$

In Stock, only 1 left!

0

35

Exmark 126-2661

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

37

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0

38

Exmark HDW14535

FLAT WASHER, 5/16 NOM,ST

$1.49

$

In Stock, only 3 left!

0

39

Exmark HDW14430

COTTER PIN 5/64X3/4 18-8

$

$

Currently unavailable

41

Exmark 107-0282

Nut-Hex

$0.99

$

In Stock, Qty 10

0

42

Exmark 142-5498

NUT-LOCK, NI

$1.99

$

Usually ships in 3-6 days

0

45

Exmark 119-6903

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

47

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 10

0

48

Exmark 142-7335

DEFLECTOR-HEAT

$51.99

$

Usually ships in 3-6 days

0

50

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

51

Exmark 146-1148

SHIELD-TANK HEAT

$63.99

$

Usually ships in 0 days

0

52

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8
