ZSX3624 - Exmark Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump (SN: 417930746 & Above) (Rev B) (2025) Hydraulic Transmission Assembly Parts Diagram

Z-Spray Junior Stand-on Sprayer, 5.3 GPM Pump

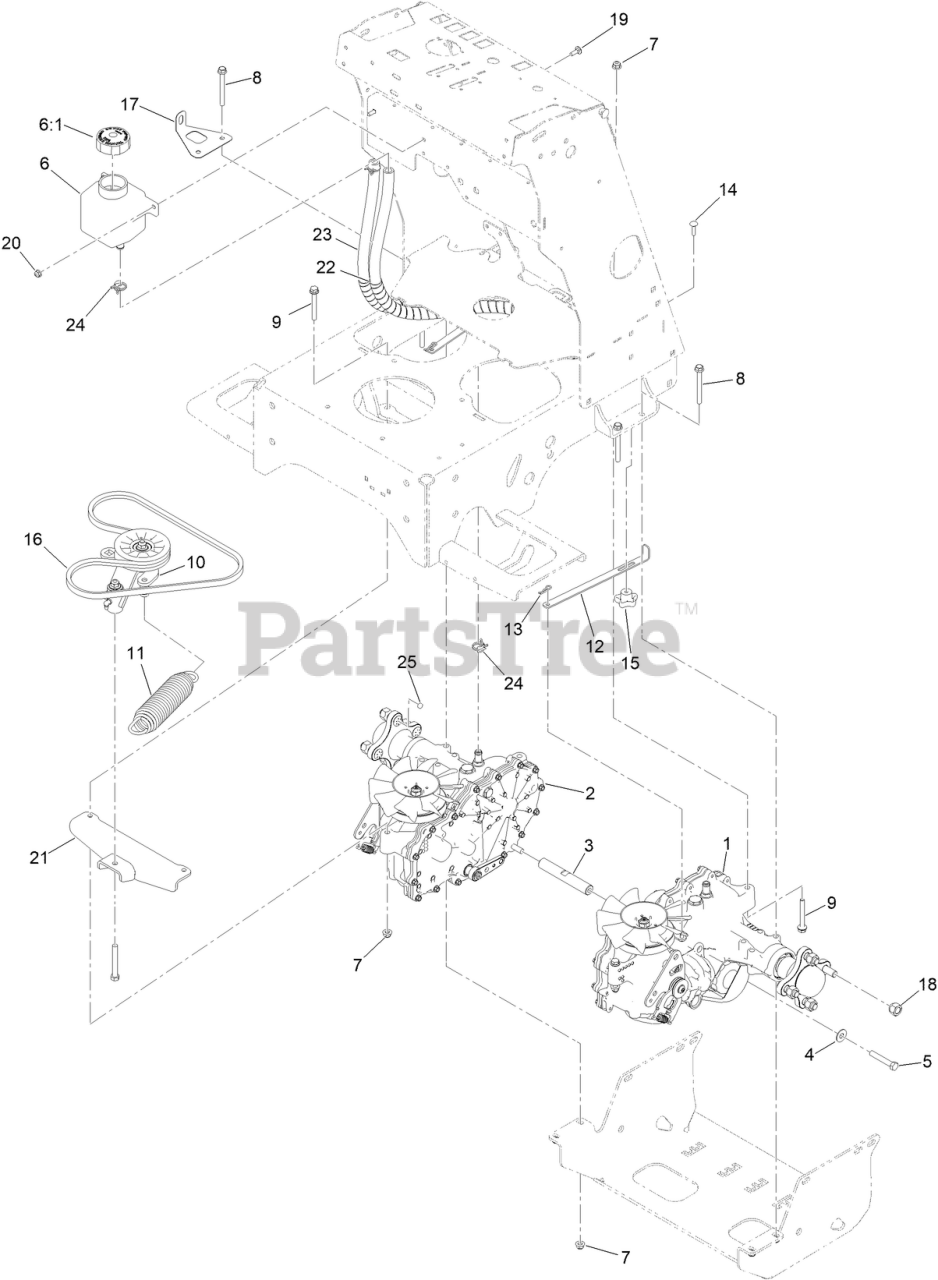

Hydraulic Transmission Assembly Parts Diagram

  • Title

1

Exmark 142-5596

ZT3400-LEFT

$1684.99

$

Usually ships in 0 days

0

2

Exmark 142-5595

ZT3400-RIGHT

$1684.99

$

Usually ships in 0 days

0

3

Exmark 142-4644

SHAFT-SPACER

$153.99

$

Usually ships in 3-6 days

0

4

Exmark 1126

WASHER-FLAT

$1.49

$

In Stock, Qty 15

0

5

Exmark HDW05862

HHCS,3/8-16X2-1/4ST/ST 18-8

$2.99

$

Usually ships in 0 days

0

6

Exmark 109-2250

TANK-HYD

$71.99

$

In Stock, only 2 left!

0

6:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$30.99

$

In Stock, only 2 left!

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

8

Exmark 126-4687

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

9

Exmark 138-9270

Screw-HHF

$

$

Currently unavailable

10

Exmark 142-9334

ASM-ARM, IDLER

$186.99

$

Usually ships in 0 days

0

11

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 16

0

12

Exmark 142-6344

ARM-HYDRO, BYPASS

$68.99

$

Usually ships in 3-6 days

0

13

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

14

Exmark 126-1455

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 108-6402

KNOB-HANDLE

$1.99

$

In Stock, Qty 14

0

16

Exmark 109-1057

USE 109-1057-SL
(Superseded to 109-1057-SL)

$39.99

$

In Stock, Qty 6

0

17

Exmark 142-6352

BRACKET-SENSOR, SPEED

$17.99

$

Usually ships in 3-6 days

0

18

Exmark 139-2564

NUT-LUG

$1.49

$

In Stock, Qty 20+

0

19

Exmark HDW20143

BOLT,CARRIAGE,1/4-20X3/4,ST/ST

$0.99

$

Usually ships in 0 days

0

20

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

21

Exmark 142-6377

MOUNT-IDLER

$111.99

$

Usually ships in 3-6 days

0

22

Exmark 142-7310

HOSE-EXPANSION

$31.99

$

Usually ships in 3-6 days

0

23

Exmark 142-7311

HOSE-EXPANSION

$27.99

$

Usually ships in 0 days

0

24

Exmark 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

25

Exmark 135-8903

MAGNET, SPEEDOMETER

$4.99

$

Usually ships in 3-6 days

0
