ZSX4640 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 & Above) (Rev C) (2023) Hopper Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump

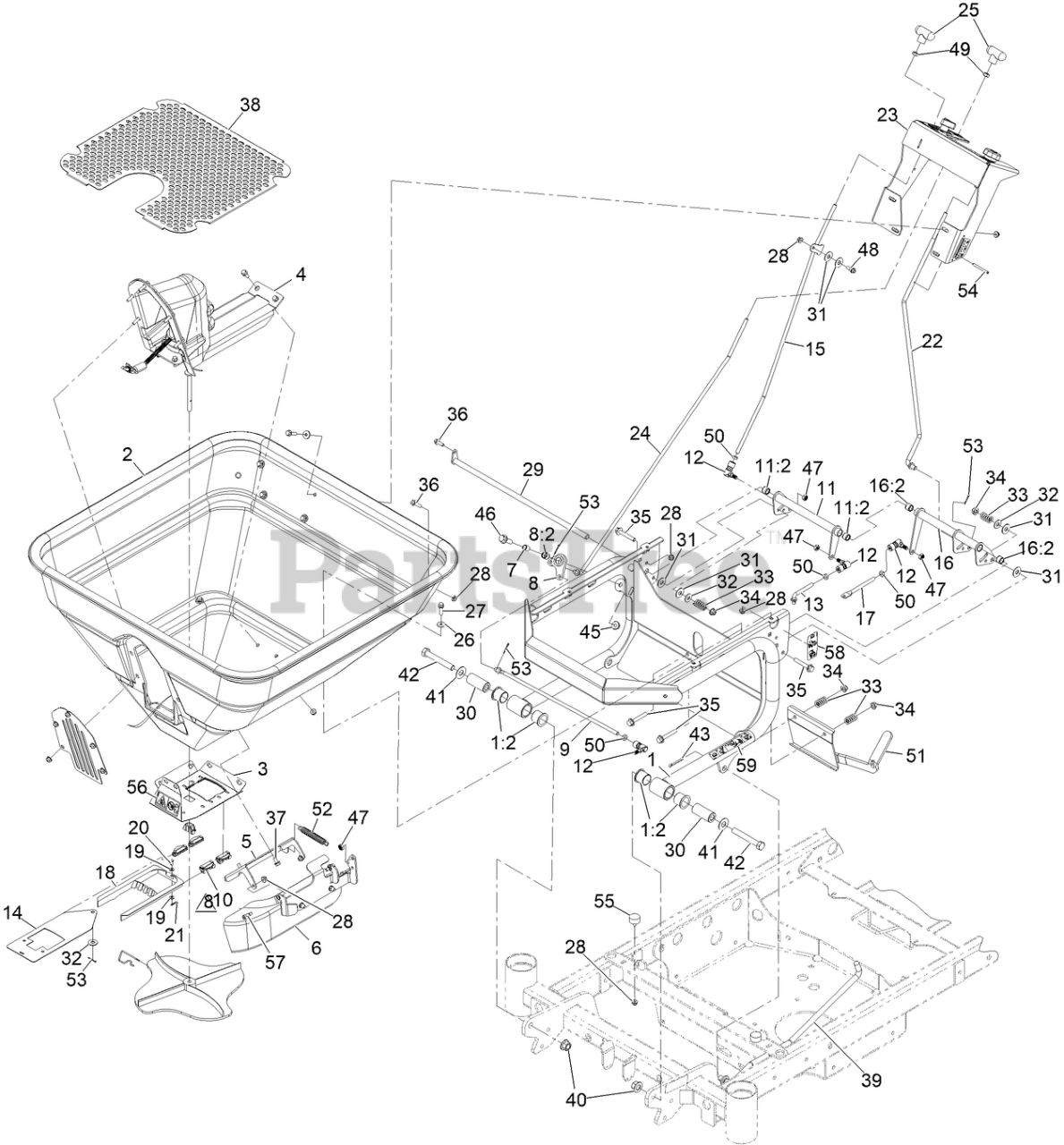

Hopper Assembly Parts Diagram

  • Title

1

Exmark 142-7344

FRAME-HOPPER

$1257.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-1963

BUSHING-PIVOT

$7.99

$

In Stock, Qty 20+

0

2

Exmark 142-4648

HOPPER-250 LB.

$420.99

$

Usually ships in 0 days

0

3

Exmark 142-3991

PLATE-HOPPER, BOTTOM

$135.99

$

Usually ships in 3-6 days

0

4

ASM-Motor, Hopper

Note: Not serviced separately

$

$

Not available

5

Exmark 142-7872

BRACKET-HOPPER DEFLECTOR

$46.99

$

Usually ships in 3-6 days

0

6

ASM-Deflector, Side

Note: Not serviced separately

$

$

Not available

7

Exmark 142-7618

BUSHING-PIVOT, DEFLECTOR

$11.99

$

Usually ships in 3-6 days

0

8

Exmark 142-7614

CRANK-DEFELCTOR

$55.99

$

Usually ships in 3-6 days

0

8:2

Exmark 142-3932

BUSHING

$2.49

$

Usually ships in 3-6 days

0

9

Exmark 142-3961

LINKAGE-DEFLECTOR, LOWER

$55.99

$

Usually ships in 3-6 days

0

10

Exmark 142-3316

GUIDE-RATE, GATE

$2.49

$

In Stock, Qty 20+

0

11

Exmark 142-3927

CRANK-GATE, HOPPER

$157.99

$

Usually ships in 0 days

0

11:2

Exmark 142-3932

BUSHING

$2.49

$

Usually ships in 3-6 days

0

12

Exmark 135-5718

Ball Joint-Quick Disconnect, SS

$17.99

$

Usually ships in 3-6 days

0

13

Exmark 142-3933

LINKAGE-GATE, LOWER

$23.99

$

Usually ships in 3-6 days

0

14

Exmark 142-3942

RATE-GATE

$20.99

$

Usually ships in 3-6 days

0

15

Exmark 142-5504

LINKAGE-GATE, UPPER

$64.99

$

Usually ships in 3-6 days

0

16

Exmark 142-3946

CRANK-DIFFUSER

$113.99

$

Usually ships in 0 days

0

16:2

Exmark 142-3932

BUSHING

$2.49

$

Usually ships in 3-6 days

0

17

Exmark 142-3949

LINKAGE-DIFFUSER, LOWER

$16.99

$

Usually ships in 0 days

0

18

Exmark 142-3406

DIFFUSER

$8.49

$

In Stock, only 2 left!

0

19

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

20

Exmark 126-3729

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 126-1631

PIN-COTTER, HAIR

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 142-3950

LINKAGE-DIFFUSER, UPPER

$56.99

$

Usually ships in 3-6 days

0

23

ASM-Console, Hopper

Note: Not serviced separately

$

$

Not available

24

Exmark 142-3962

LINKAGE-DEFLECTOR, UPPER

$42.99

$

Usually ships in 3-6 days

0

25

Exmark 142-5558

KNOB-T

$6.49

$

Usually ships in 0 days

0

26

Exmark 135-6341

Washer

$1.99

$

Usually ships in 3-6 days

0

27

Exmark HDW27147

SCREW-HHF

$3.99

$

Usually ships in 0 days

0

28

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

29

Exmark 142-4031

SHAFT-CONTROL, HOPPER

$55.99

$

Usually ships in 3-6 days

0

30

Exmark 142-4293

SPACER-PIVOT, HOPPER

$34.99

$

Usually ships in 0 days

0

31

Exmark 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

32

Exmark HDW14535

FLAT WASHER, 5/16 NOM,ST

$1.49

$

In Stock, only 3 left!

0

33

Exmark 142-6894

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

34

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

35

Exmark 126-2711

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

36

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 10

0

37

Exmark 142-5490

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

38

Exmark 142-4696

SCREEN-HOPPER, MEDIUM

$260.99

$

Usually ships in 3-6 days

0

39

Exmark 142-6888

ROD-PROP, HOPPER

$55.99

$

Usually ships in 3-6 days

0

40

Exmark 135-6111

NUT-HEX FLANGE

$6.99

$

Usually ships in 3-6 days

0

41

Exmark HDW14428

WASHER

$1.49

$

In Stock, only 1 left!

0

42

Exmark 142-7326

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

43

Exmark 135-6292

Pin-Cotter

$1.99

$

In Stock, only 4 left!

0

45

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

46

Exmark 135-6211

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

47

Exmark 142-5498

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

48

Exmark 42-3560

BOLT-SHOULDER

$6.49

$

In Stock, Qty 9

0

49

Exmark 363-1684

NUT-HEX

$1.49

$

Usually ships in 0 days

0

50

Exmark 107-0282

Nut-Hex

$0.99

$

Usually ships in 3-6 days

0

51

Exmark 142-7495-05

LATCH-HOPPER

$78.99

$

Usually ships in 3-6 days

0

52

Exmark 142-8921

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0

53

Exmark HDW14430

COTTER PIN 5/64X3/4 18-8

$

$

Currently unavailable

54

Exmark 142-7053

PIN-ROLL, 3/16 X 2.0

$11.99

$

Usually ships in 3-6 days

0

55

Exmark 240-14

BUMPER-RUBBER

$16.99

$

Usually ships in 3-6 days

0

56

Exmark 135-6725

Decal-Dismemberment Hazard

$4.49

$

Usually ships in 3-6 days

0

57

Exmark 119-4881

BOLT-SHOULDER

$

$

Currently unavailable

58

Exmark 146-0725

DECAL-HOPPER ROTATE

$3.49

$

Usually ships in 3-6 days

0

59

Exmark 146-1356

DECAL-HOPPER LATCH

$6.49

$

Usually ships in 0 days

0
