ZSX4640 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 & Above) (Rev C) (2023) Hopper Console Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump

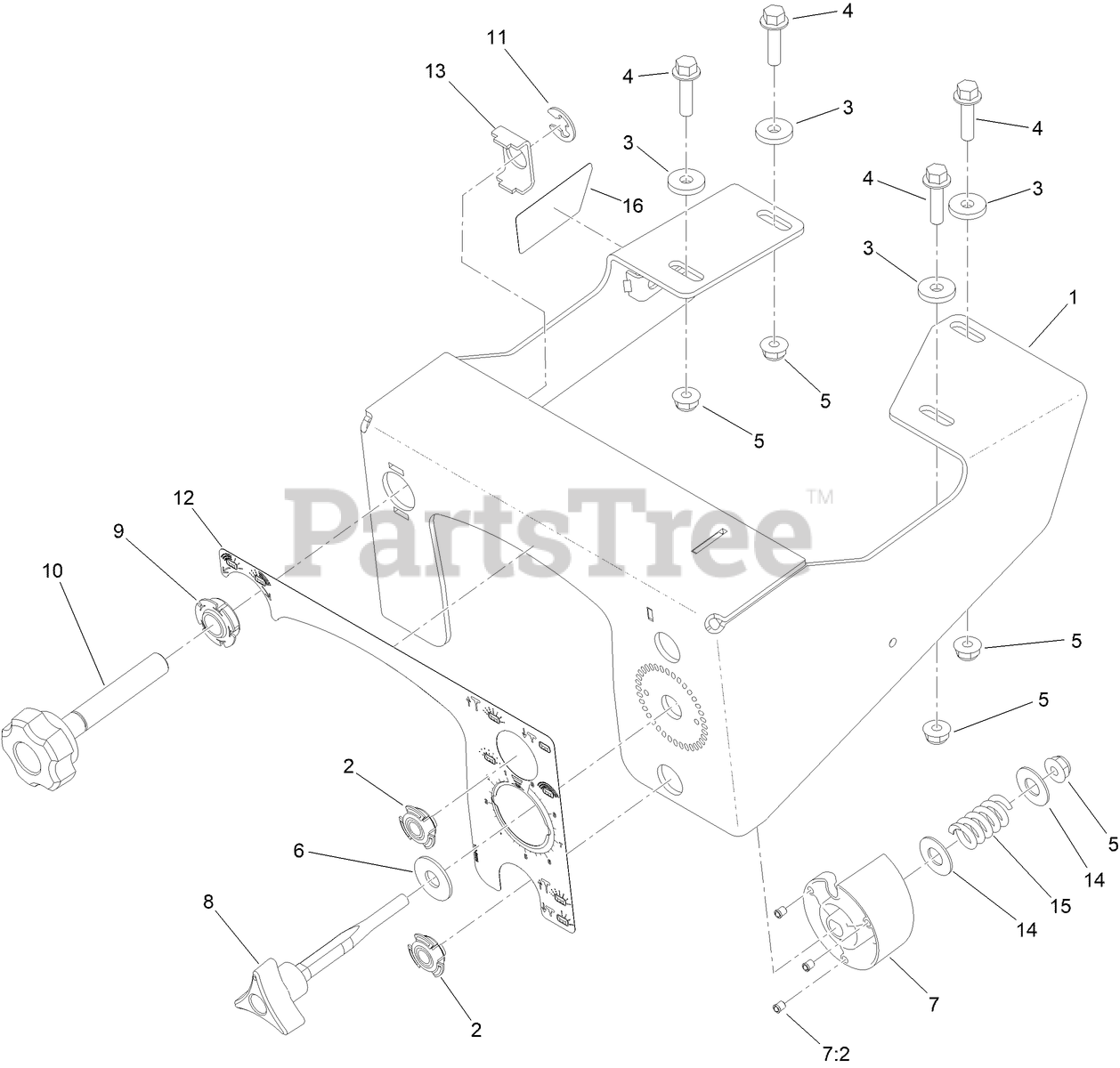

Hopper Console Assembly Parts Diagram

  • Title

1

Exmark 142-5560

CONSOLE-HOPPER

$267.99

$

Usually ships in 3-6 days

0

2

Exmark 142-3955

BEARING-SPHERICAL

$11.99

$

In Stock, only 4 left!

0

3

Exmark 135-6341

Washer

$1.99

$

Usually ships in 3-6 days

0

4

Exmark HDW27147

SCREW-HHF

$3.99

$

Usually ships in 0 days

0

5

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

6

Exmark 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

7

Exmark 142-4642

DIAL-RATE

$30.99

$

In Stock, only 2 left!

0

7:2

Exmark 142-4641

PLUNGER-SPRING, BALL

$6.49

$

Usually ships in 0 days

0

8

Exmark 142-7035

KNOB-RATE

$26.99

$

In Stock, only 2 left!

0

9

Exmark 126-5820

BEARING-SPHERICAL

$8.49

$

In Stock, only 1 left!

0

10

Exmark 142-7037

KNOB-DIFFUSER

$26.99

$

In Stock, only 1 left!

0

11

Exmark 142-4698

RING-E

$2.49

$

Usually ships in 3-6 days

0

12

Exmark 142-5588

DECAL-HOPPER

$11.99

$

Usually ships in 3-6 days

0

13

Exmark 142-7054

STOP-DIFFUSER

$4.99

$

Usually ships in 3-6 days

0

14

Exmark HDW05859

WASHER,FLAT,3/8ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 142-6894

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 142-9684

DECAL-PATTERN INDICATOR

$3.49

$

Usually ships in 3-6 days

0
