ZSX4640 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 & Above) (Rev C) (2023) Hopper Motor Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump

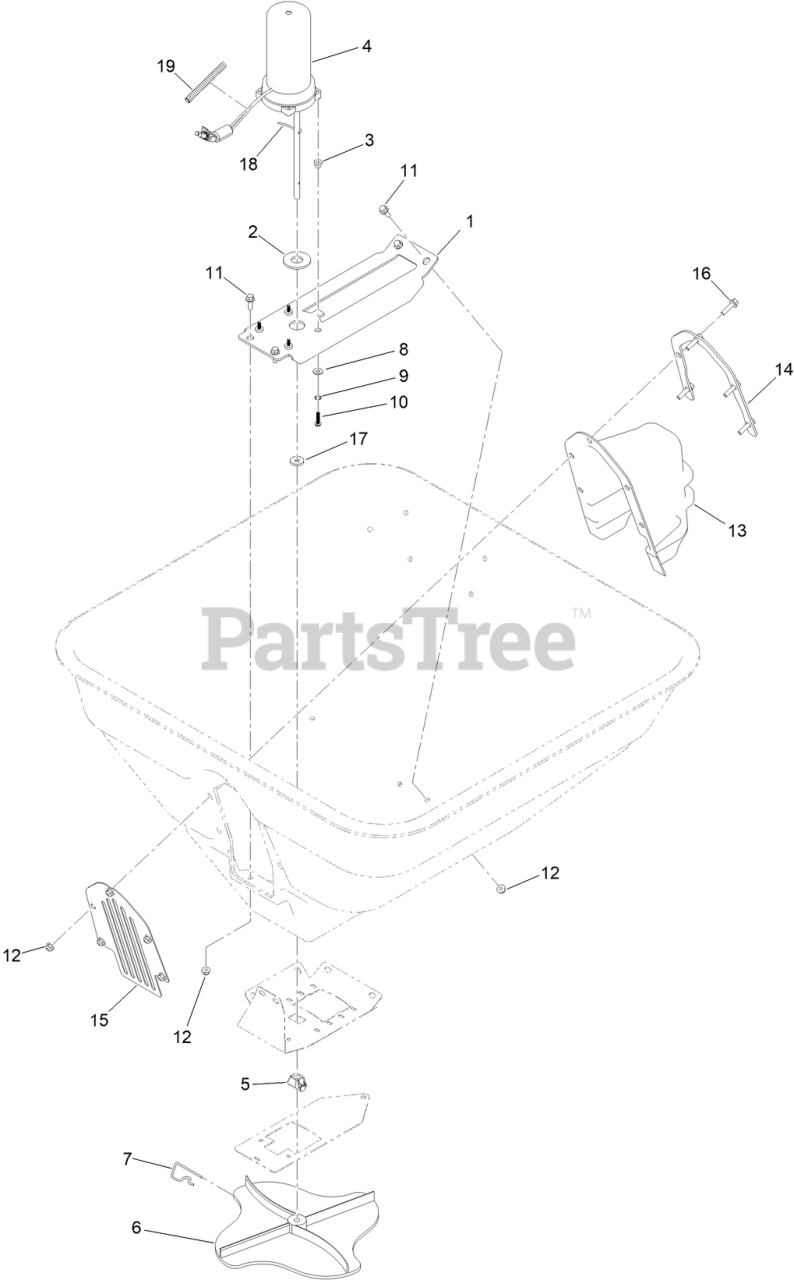

Hopper Motor Assembly Parts Diagram

  • Title

1

Exmark 142-4686

BRACKET-MOUNT, MOTOR

$104.99

$

Usually ships in 3-6 days

0

2

Exmark 83-2400

SPACER

$7.99

$

In Stock, only 3 left!

0

3

Exmark 135-3989

SPACER-FLANGED

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 126-0379

MOTOR-SPREADER

$704.99

$

In Stock, only 1 left!

0

5

Exmark 142-4042

HOPPER BOTTOM BEARING

$1.99

$

Usually ships in 3-6 days

0

6

Exmark 142-3506

Spinner-Spreader

$46.99

$

In Stock, only 2 left!

0

7

Exmark 142-3541

Clip-Spinner

$12.99

$

In Stock, Qty 10

0

8

Exmark 360-0140

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

9

Exmark 363-8641

WASHER-LOCK, INT

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 739001

SCREW-SHWH

$1.49

$

In Stock, Qty 6

0

11

Exmark 135-6221

Screw-HHF

$1.99

$

In Stock, Qty 10

0

12

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

13

Exmark 142-8924

COVER-MOTOR

$75.99

$

Usually ships in 3-6 days

0

14

Exmark 126-6334

FLANGE-COVER, MOTOR

$29.99

$

Usually ships in 3-6 days

0

15

Exmark 142-4721

COVER-FRONT, MOTOR

$38.99

$

Usually ships in 3-6 days

0

16

Exmark HDW27147

SCREW-HHF

$3.99

$

Usually ships in 0 days

0

17

Exmark 142-3665

WASHER-FELT

$2.49

$

Usually ships in 3-6 days

0

18

Exmark 142-3666

WIRE-AGITATOR

$4.49

$

In Stock, Qty 20+

0

19

Exmark 142-6683

LOOM-SPLIT

$1.49

$

Usually ships in 0 days

0
