ZSX4640 - Exmark Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 & Above) (Rev C) (2023) Spray System Assembly Parts Diagram

Z-Spray Intermediate Stand-on Sprayer, 5.3 GPM Pump

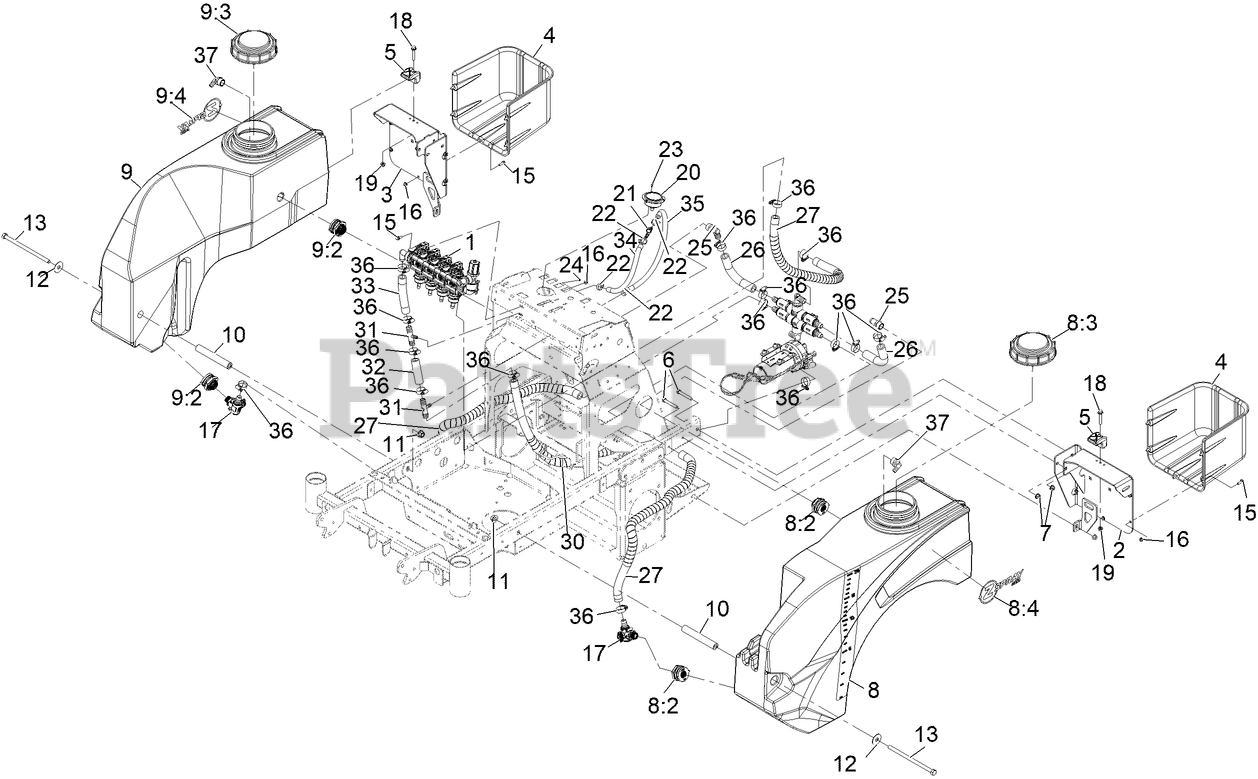

Spray System Assembly Parts Diagram

  • Title

1

Exmark 142-7050

ASM-MANIFOLD, SPRAY

$356.99

$

Usually ships in 3-6 days

0

2

Exmark 142-7320

MOUNT-TANK, LT INT

$259.99

$

Usually ships in 3-6 days

0

3

Exmark 142-7322

MOUNT-TANK, RT INT

$259.99

$

Usually ships in 3-6 days

0

4

Exmark 142-4718

BOX-FERTILZER, MID

$68.99

$

0

5

Exmark 107-4543

CLAMP

$13.99

$

Usually ships in 3-6 days

0

6

Exmark HDW05849

HHCS,3/8-16X2-1/2,ST/ST 18-8

$1.49

$

0

7

Exmark 135-6110

Nut-Hex Flange

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 142-6381

TANK-20GAL, LT

$521.99

$

0

8:2

Exmark 126-4393

FITTING-BULKHEAD

$17.99

$

In Stock, only 4 left!

0

8:3

Exmark 135-5916

CAP-TANK, SPRAY

$10.99

$

In Stock, only 4 left!

0

8:4

Exmark 142-7946

DECAL-Z-SPRAY MID LOGO

$33.99

$

0

9

Exmark 142-6383

TANK-20GAL, RT

$521.99

$

0

9:2

Exmark 126-4393

FITTING-BULKHEAD

$17.99

$

In Stock, only 4 left!

0

9:3

Exmark 135-5916

CAP-TANK, SPRAY

$10.99

$

In Stock, only 4 left!

0

9:4

Exmark 142-7946

DECAL-Z-SPRAY MID LOGO

$33.99

$

0

10

Exmark 142-5501

SPACER-TANK

$33.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6111

NUT-HEX FLANGE

$5.99

$

Usually ships in 3-6 days

0

12

Exmark 142-7591

WASHER-FLAT, 1/2, SS

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 142-5502

SCREW-HHCS

$8.49

$

Usually ships in 3-6 days

0

15

Exmark 135-6221

Screw-HHF

$1.49

$

In Stock, Qty 10

0

16

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

17

Exmark 142-4468

VALVE-3 WAY

$73.99

$

In Stock, only 2 left!

0

18

Exmark 126-2711

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

19

Exmark 135-6109

Nut-Hex Flange

$1.49

$

In Stock, Qty 13

0

20

Exmark 126-4110

GAUGE-PRESSURE

$174.99

$

In Stock, Qty 5

0

21

Exmark 126-2348

FITTING-TEE

$17.99

$

Usually ships in 3-6 days

0

22

Exmark 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

23

Exmark 363-6518

SCR,MCH,6-32X3/8,PHPH,SST,ROHS

$

$

Currently unavailable

24

Exmark 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 8

0

25

Exmark 135-5772

FITTING-ELBOW, 90

$1.99

$

In Stock, only 1 left!

0

26

Exmark 142-6912

HOSE-SPRAY, FORMED

$9.99

$

Usually ships in 3-6 days

0

27

Exmark 142-7613

HOSE-SPRAY, WRAPPED

$28.99

$

Usually ships in 3-6 days

0

30

Exmark 142-7610

HOSE-SPRAY, WRAPPED

$25.99

$

Usually ships in 3-6 days

0

31

Exmark 142-4450

TEE-HOSE BARB

$4.49

$

0

32

Exmark 142-6907

HOSE-SPRAY

$4.99

$

0

33

Exmark 142-7611

HOSE-SPRAY

$9.49

$

Usually ships in 3-6 days

0

34

Exmark 142-7612

HOSE-SPRAY

$8.49

$

Usually ships in 3-6 days

0

35

Exmark 142-7062

HOSE-SPRAY

$10.99

$

Usually ships in 3-6 days

0

36

Exmark 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

37

Exmark 135-5744

FITTING-ELBOW, 90

$1.99

$

In Stock, only 2 left!

0
