ZSX5260 - Exmark Z-Spray Z-Max Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 - 416150474) (Rev D) (2023) Caster Wheel and Tire Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 5.3 GPM Pump

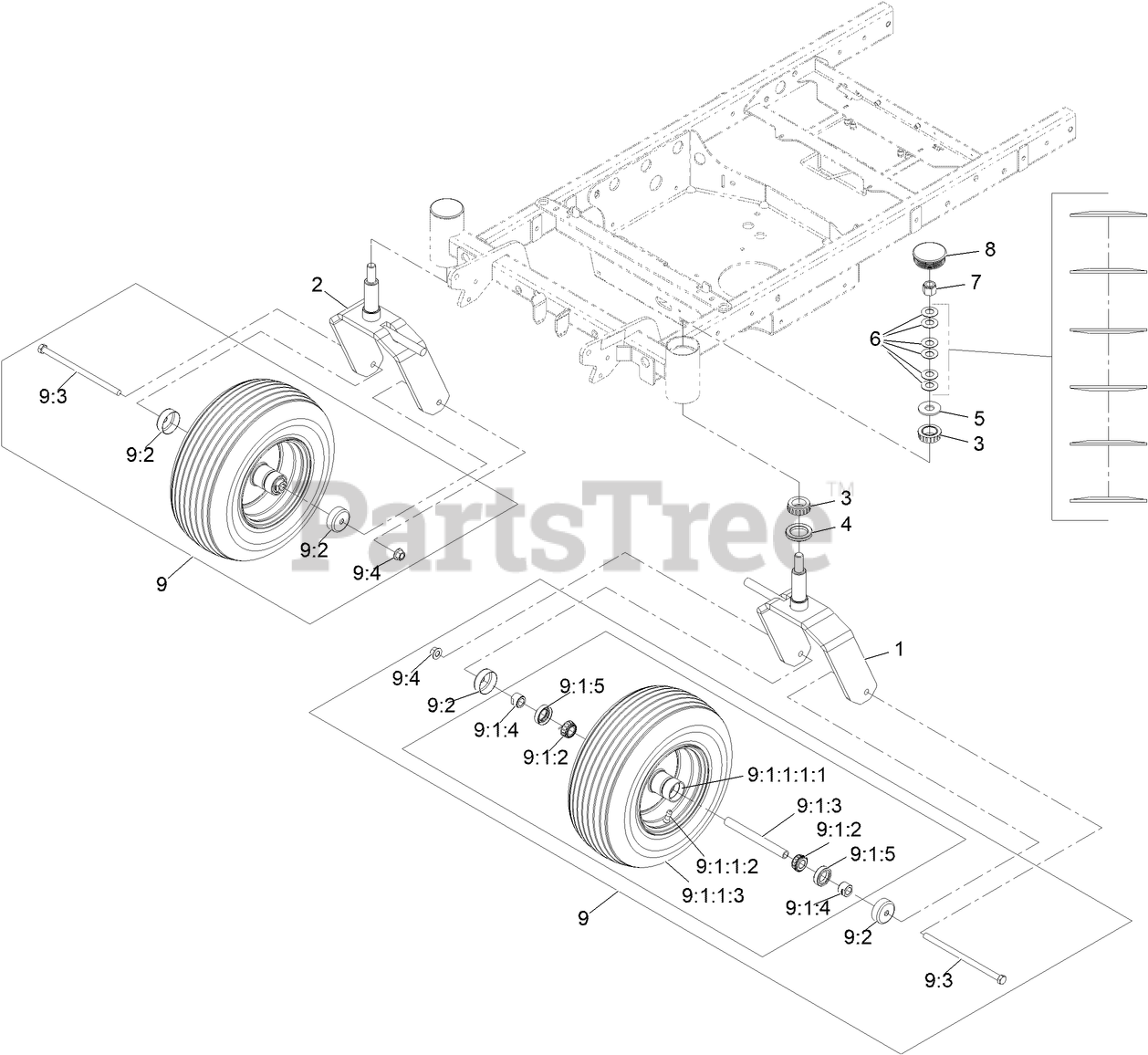

Caster Wheel and Tire Assembly Parts Diagram

  • Title

1

Exmark 142-4545-01

WELD-CASTER, LH

$263.99

$

In Stock, only 2 left!

0

2

Exmark 142-4547-01

WELD-CASTER, RH

$263.99

$

In Stock, only 1 left!

0

3

Exmark 103-9028

BEARING-ROLLER, CONE TAPE

$33.99

$

In Stock, only 2 left!

0

4

Exmark 135-0355

SEAL-GREASE

$8.99

$

In Stock, Qty 11

0

5

Exmark 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 14

0

6

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

7

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, only 2 left!

0

8

Exmark 142-7588

CAP-TUBE, CASTER

$6.99

$

In Stock, Qty 8

0

9

Exmark 142-5556

ASM-WHL AND TIRE W/AXLE

$286.99

$

In Stock, Qty 5

0

9:1:1:1:1

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 6

0

9:1:1:2

Exmark 232-27

Stem-Valve

$

$

Not available

9:1:1:3

Exmark 135-5976

Tire-Rib

$99.99

$

Usually ships in 3-6 days

0

9:1:2

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$23.99

$

In Stock, Qty 17

0

9:1:3

Exmark 126-5361

AXLE CASTER ASM

$20.99

$

In Stock, Qty 9

0

9:1:4

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, only 2 left!

0

9:1:5

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, only 3 left!

0

9:2

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 6

0

9:3

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 9

0

9:4

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0
