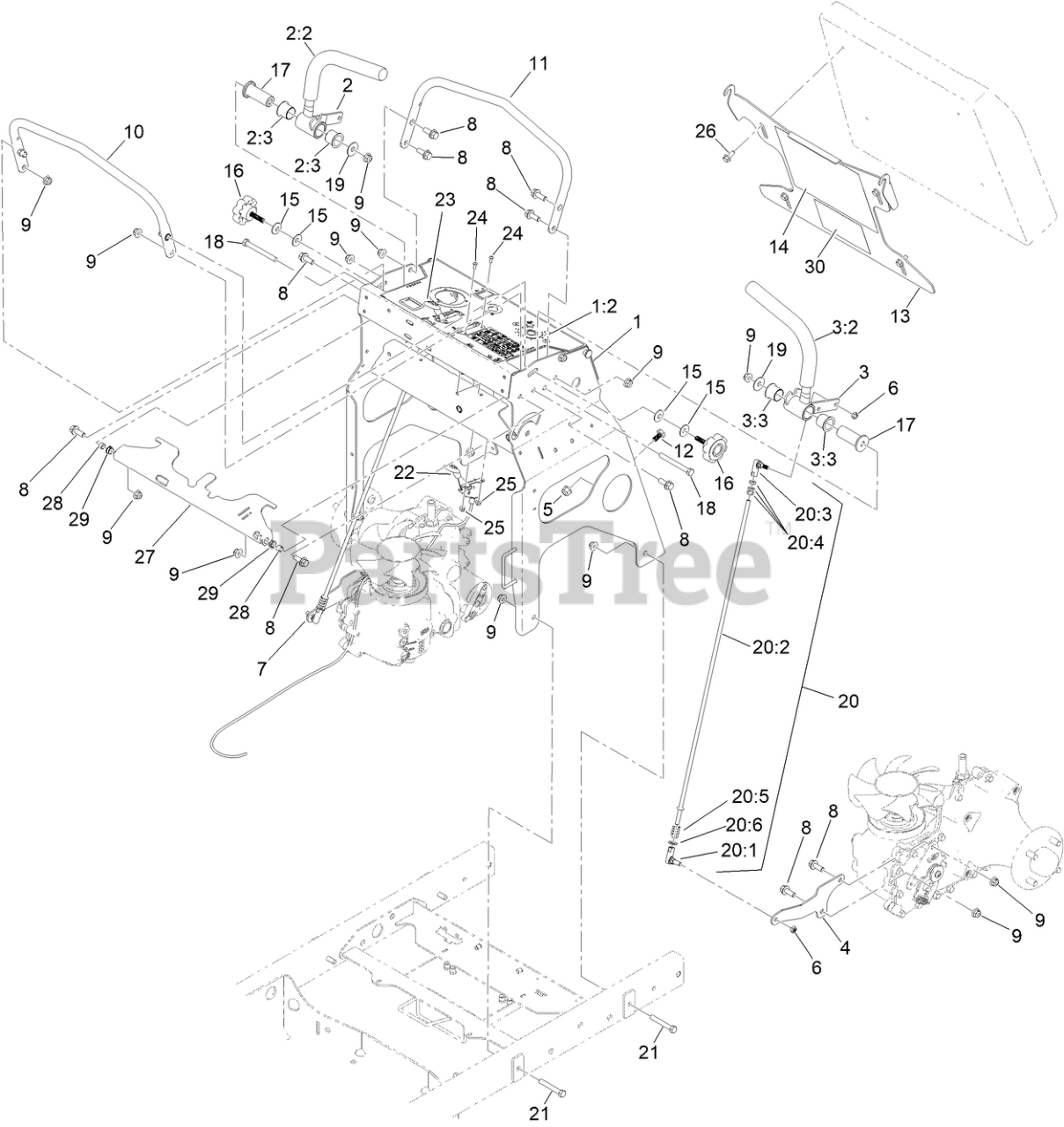

ZSX5260 - Exmark Z-Spray Z-Max Stand-on Sprayer, 5.3 GPM Pump (SN: 413950474 & Above) (Rev C) (2023) Controls Assembly Parts Diagram

Z-Spray Z-Max Stand-on Sprayer, 5.3 GPM Pump

Controls Assembly Parts Diagram

  • Title

1

Exmark 142-7511

TOWER-ASM W/DECAL

$1100.99

$

Usually ships in 0 days

0

1:2

Exmark 146-0162

DECAL-CONTROL PANEL

$30.99

$

Usually ships in 3-6 days

0

2

Exmark 142-3696

HANDLE-CONTROL, RH ASM

$195.99

$

Usually ships in 0 days

0

2:2

Exmark 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 4 left!

0

2:3

Exmark 126-1963

BUSHING-PIVOT

$7.99

$

In Stock, Qty 20+

0

3

Exmark 142-3697

HANDLE-CONTROL, LH ASM

$204.99

$

Usually ships in 0 days

0

3:2

Exmark 1-633257

GRIP-CONTROL, MOTION

$15.99

$

In Stock, only 4 left!

0

3:3

Exmark 126-1963

BUSHING-PIVOT

$7.99

$

In Stock, Qty 20+

0

4

Exmark 142-3704

PLATE-CONTROL, LH RTN

$23.99

$

Usually ships in 3-6 days

0

5

Exmark 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

6

Exmark 142-5498

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 142-3733

PLATE-CONTROL, RH RTN

$23.99

$

Usually ships in 3-6 days

0

8

Exmark 135-6208

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

9

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

10

Exmark 142-7601

BAR-SPEED, ASM

$79.99

$

Usually ships in 0 days

0

11

Exmark 142-7600-05

BAR-REFERENCE

$79.99

$

Usually ships in 3-6 days

0

12

Exmark 142-7585

MAGNET-STUD, THREADED

$11.99

$

Usually ships in 0 days

0

13

Exmark 142-9348-05

PLATE-KNEE PAD

$79.99

$

Usually ships in 3-6 days

0

14

Exmark 146-0776

DECAL-SPRAY CHART

$16.99

$

Usually ships in 3-6 days

0

15

Exmark 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

16

Exmark 142-5494

KNOB-FLUTED

$15.99

$

Usually ships in 3-6 days

0

17

Exmark 142-4200

PIVOT-CONTROL, HANDLE

$42.99

$

Usually ships in 3-6 days

0

18

Exmark HDW17725

HHCS,3/8-16X3-1/2,ST/ST 18-8

$4.99

$

Usually ships in 0 days

0

19

Exmark HDW19385

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 142-4622

LINKAGE-CONTROL ASM

$102.99

$

Usually ships in 0 days

0

20:1

Exmark 135-5257

Balljoint-SS

$20.99

$

Usually ships in 3-6 days

0

20:2

Exmark 142-3703

ROD-CONTROL, MOTION

$63.99

$

Usually ships in 3-6 days

0

20:3

Exmark 135-9812

3/8-24 SS BALL JOINT\N367

$20.99

$

In Stock, only 2 left!

0

20:4

Exmark 107-0282

Nut-Hex

$0.99

$

Usually ships in 3-6 days

0

20:5

Exmark 142-6894

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

20:6

Exmark 107-0279

WASHER

$1.99

$

Usually ships in 3-6 days

0

21

Exmark HDW05849

HHCS,3/8-16X2-1/2,ST/ST 18-8

$1.99

$

Usually ships in 0 days

0

22

Exmark 109-9147

CONTROL-CHOKE

$41.99

$

Usually ships in 3-6 days

0

23

Exmark 142-6693

CONTROL-THROTTLE

$24.99

$

Usually ships in 3-6 days

0

24

Exmark 135-6374

Screw-HSBH

$0.99

$

Usually ships in 3-6 days

0

25

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, Qty 8

0

26

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, only 4 left!

0

27

Exmark 142-9345-03

PLATE-LOCK, MC

$41.99

$

Usually ships in 3-6 days

0

28

Exmark 142-7468

SPACER-BRAKE PIVOT

$2.99

$

Usually ships in 3-6 days

0

29

Exmark 116-1393

BUSHING,SNAP

$5.99

$

Usually ships in 3-6 days

0

30

Exmark 142-8040

DECAL-SERVICE AID

$9.99

$

Usually ships in 3-6 days
