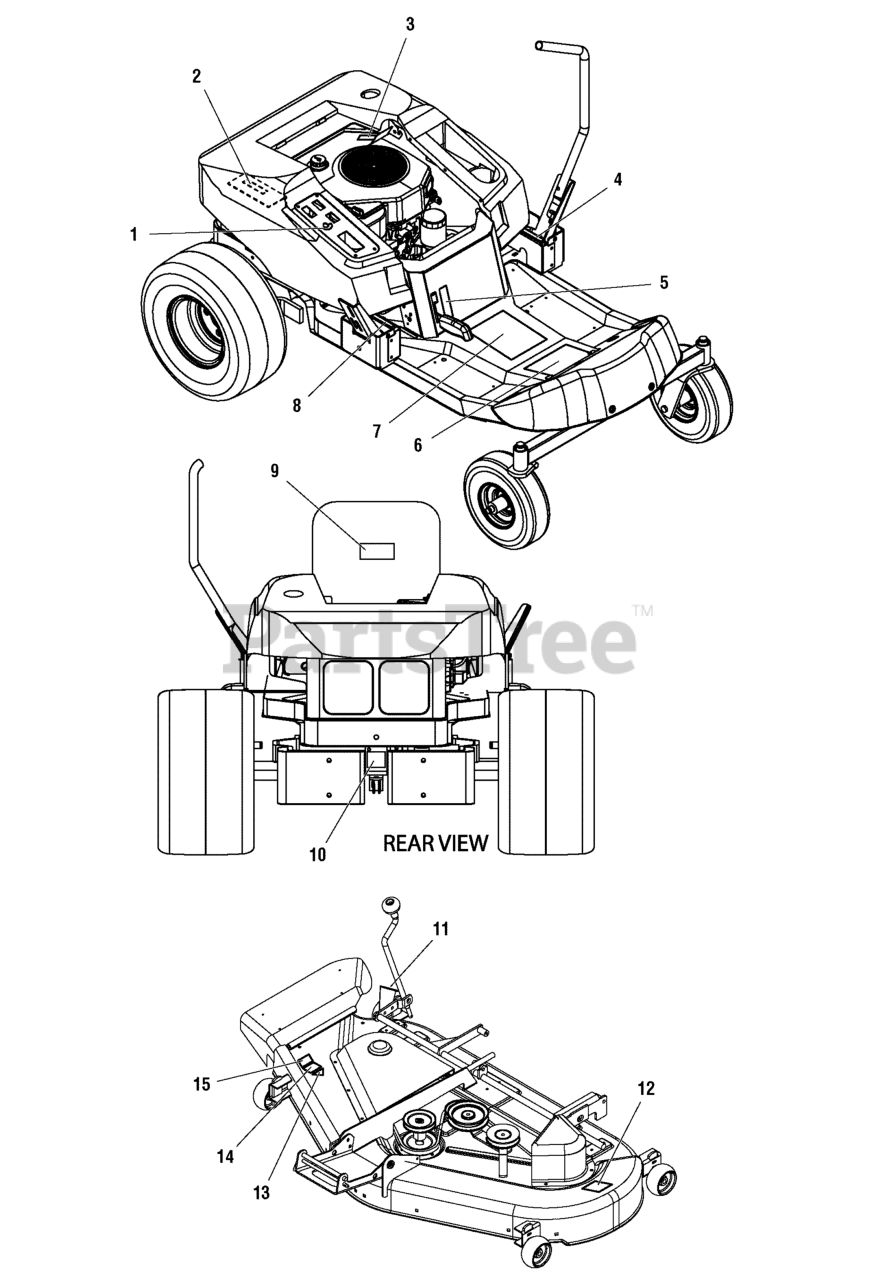

ZT 1644 E (2690431) - Simplicity 44" Zero-Turn Mower, 16hp Hydro (2005) Decals Group Parts Diagram

44" Zero-Turn Mower, 16hp Hydro

Decals Group Parts Diagram

  • Title

1

Murray 1726526SM

DECAL, Ignition Switch

$7.49

$

Usually ships in 2-12 days

0

2

Murray 1726525SM

DECAL, Sealed Hydro System

$34.99

$

Usually ships in 2-12 days

0

3

Murray 1726631SM

DECAL, Do Not Remove Foam Seal

$9.99

$

Usually ships in 2-12 days

0

4

Murray 1725671SM

DECAL, Motion Control, L.H.

$

$

Not available

5

Murray 1726529SM

DECAL, Parking Brake

$6.49

$

Usually ships in 2-12 days

0

6

Murray 1726429SM

DECAL, Panel Upper, Operation

$

$

Not available

7

Murray 1726430SM

DECAL, Panel Lower, Warning/Danger & Icon Indicator

$68.99

$

Usually ships in 2-12 days

0

8

Murray 1725670SM

DECAL, Motion Control, R.H.

$7.99

$

Usually ships in 2-12 days

0

9

DECAL, ID Plate

$

$

Not available

10

Murray 1726834SM

DECAL, Transmission Release Valve

$4.99

$

Usually ships in 2-12 days

0

11

Murray 1726642SM

DECAL, Height of Cut

$10.99

$

In Stock, only 1 left!

0

12

Murray 1704276SM

DECAL, Danger (Do Not Put Hands/Feet in Mower)
(Superseded to 7101665YP)

$14.99

$

In Stock, only 2 left!

0

13

DECAL, OPEI Certified (Not Serviced)

$

$

Not available

14

Murray 1722789SM

DECAL, 44"

$17.99

$

Usually ships in 2-12 days

0

15

Murray 1704277SM

DECAL, Danger (Do Not Operate With Out Deflector)
(Superseded to 7101665YP)

$14.99

$

In Stock, only 2 left!

0
