ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler 44" & 50" Mower Deck Roller Group (2734RL0) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

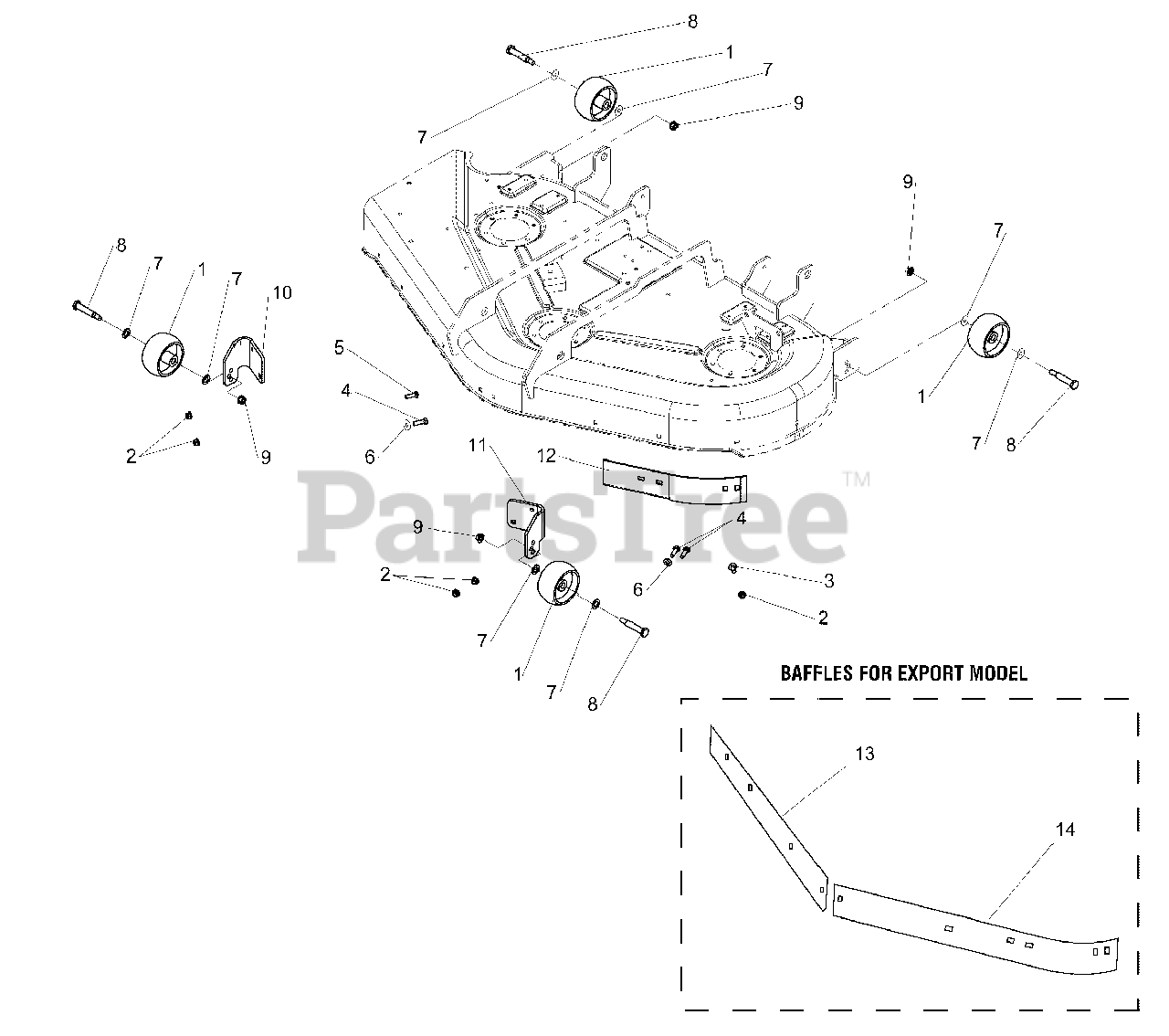

44" & 50" Mower Deck Roller Group (2734RL0) Parts Diagram

  • Title

1

Simplicity 1714760SM

GAUGE WHEEL

$6.99

$

In Stock, Qty 20+

0

2

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

3

Simplicity 5025145X6SM

CARRIAGE BOLT, 5/16-18 X 3/4

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

5

Simplicity 5025145X8SM

CARRIAGE BOLT 5/16-18 X 3/4

$3.99

$

In Stock, Qty 9

0

6

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

7

Simplicity 1960027SM

WASHER
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 2108765SM

BOLT, REAR WHEEL

$6.49

$

In Stock, Qty 20+

0

9

Simplicity 1930645SM

NUT, FLANGE SIDELOCK 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

10

Simplicity 5049018DSM

BRACKET, GAUGE WHEEL, RH

$

$

Not available

11

Simplicity 5049017DSM

BRACKET, GAUGE WHEEL, LH
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 3 left!

0

12

Simplicity 1724538ASM

SHORT BLOWOUT BAFFLE

$47.99

$

In Stock, only 2 left!

0

13

Simplicity 1716869ASM

BAFFLE-BLOWOUT RH 50" MWR - BLACK

$203.99

$

Usually ships in 2-12 days

0

14

Simplicity 1716870ASM

BAFFLE-BLOWOUT LH 50" MWR - BLACK

$174.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4", CARRIAGE

$3.99

$

In Stock, Qty 20+

0
