ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler Control Group Lower (273MCG0) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

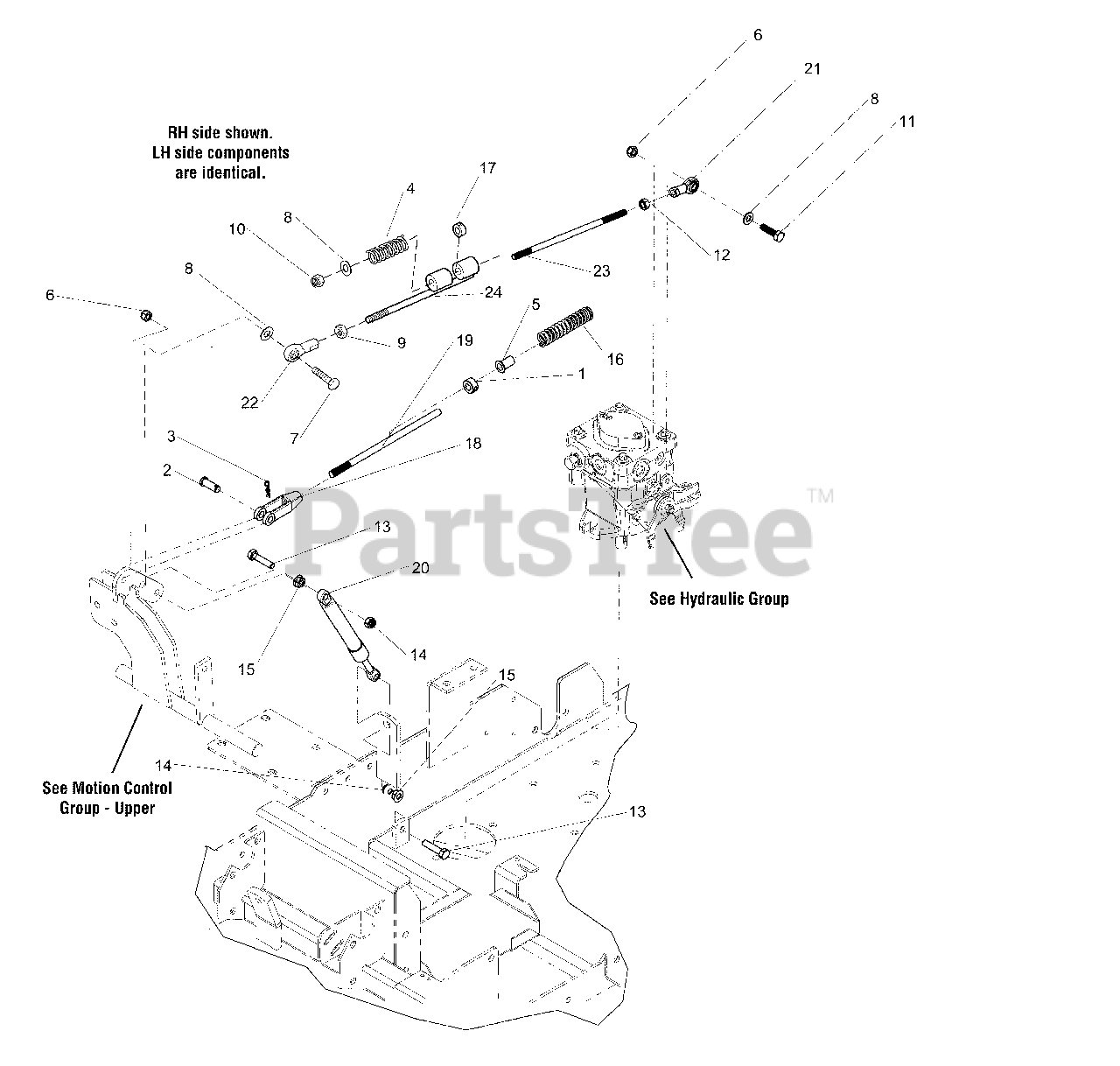

Control Group Lower (273MCG0) Parts Diagram

  • Title

1

Simplicity 5010546SM

COLLAR, 3/8" SET

$5.99

$

In Stock, only 2 left!

0

2

Simplicity 5025214X8SM

PIN, CLEVIS, 3/8" X 1"
(Superseded to 7029687YP)

$7.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025211SM

PIN, HAIR, .0585 X 1-1/8

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5023242SM

SPRING, CONTROL ROD

$7.49

$

Usually ships in 2-12 days

0

5

Simplicity 5023260SM

BUSHING, FLANGE 3/8ID X 7/8 LONG

$6.49

$

In Stock, only 1 left!

0

6

Simplicity 5025057SM

NUT 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 5025011X10SM

BOLT, 5/16-18 X 1-1/4" GD5
(Superseded to 703570)

$4.99

$

In Stock, Qty 9

0

8

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

9

Simplicity 5025033SM

NUT, HEX 5/16-24
(Superseded to 703331)

$4.49

$

In Stock, Qty 17

0

10

Simplicity 5025045SM

NUT 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 15

0

11

Simplicity 5025011X9SM

BOLT, 5/16-18 X 1-1/8" GD5

$4.49

$

In Stock, only 2 left!

0

12

Simplicity 5023212SM

NUT, 5/16 HEX LH

$3.49

$

In Stock, only 1 left!

0

13

Simplicity 5025335SM

BOLT, M8-1.25 x 35MM

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025354SM

NUT, M8-1.25 Hex Nylon Lock

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025355SM

NUT, M8-1.25 Hex Serrated Flange

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 5022645SM

SPRING, COMPRESSION

$9.99

$

Usually ships in 2-12 days

0

17

Simplicity 5020047SM

SET COLLAR, 5/16"

$7.99

$

In Stock, only 3 left!

0

18

Simplicity 5021171SM

CLEVIS, 3/8-24, PLASTIC

$15.99

$

Usually ships in 2-12 days

0

19

Simplicity 5049969SM

ROD, NEUTRAL CONTROL, 8"

$35.99

$

Usually ships in 2-12 days

0

20

Simplicity 5100728SM

DAMPENER
(Superseded to 5103511YP)

$63.99

$

In Stock, Qty 9

0

21

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

22

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$12.99

$

In Stock, only 1 left!

0

23

Simplicity 5103673YP

ROD, 5/16 X 8.38, LH-RH, CZ

$6.99

$

Usually ships in 2-12 days

0

24

Simplicity 5048923SM

ROD ASSEMBLY, SLIDER

$48.99

$

Usually ships in 2-12 days

0
