ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler Control Group Panel (273INS0) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

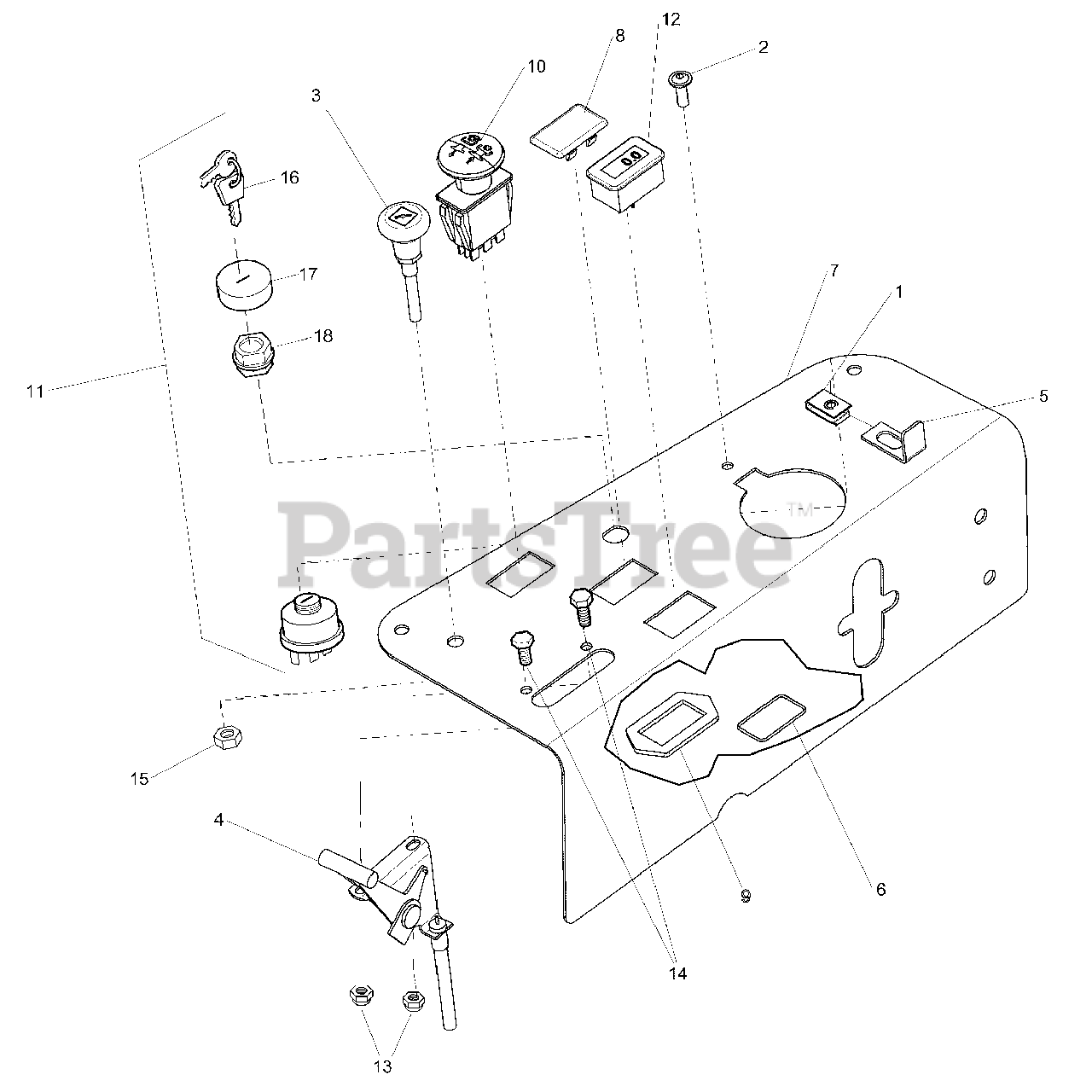

Control Group Panel (273INS0) Parts Diagram

  • Title

1

Simplicity 5022665SM

BODY CLIP, 1/4-20 X .500 DEEP

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 5025299X6SM

SCREW, ALLEN HEAD, 1/4-20 X 3/4"
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 5047143SM

CHOKE CABLE

$59.99

$

In Stock, only 1 left!

0

4

Simplicity 5047629SM

CABLE THROTTLE, 48"

$65.99

$

Usually ships in 2-12 days

0

5

Simplicity 5049022ASM

BRACKET, LOCK

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5400717ASM

PLATE, CONTROL TANK COVER

$39.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709188SM

HOLE, PLUG DASH

$5.49

$

In Stock, Qty 7

0

9

Simplicity 5022222SM

RING, SWITCH RETAINER, PTO

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 1722887SM

SWITCH, BLADE ENGAGEMENT

$35.99

$

In Stock, Qty 20+

0

11

Simplicity 1686734SM

SWITCH, IGNITION 6 POST

Note: (Includes Ref. 16 - 18)

$34.99

$

In Stock, Qty 20+

0

12

Simplicity 5100978SM

HOUR METER-DIGITAL
(Superseded to 5102417YP)

$69.99

$

In Stock, only 2 left!

0

13

Simplicity 5025095SM

NUT, Hex Nylon Lock, 1/4-20

$3.49

$

In Stock, only 4 left!

0

14

Simplicity 5025010X6SM

BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5025035SM

NUT, 3/8-24 HEX
(Superseded to 703895)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1717163SM

KEY, Ignition Molded

Note: (Set of 2)

$9.49

$

In Stock, Qty 7

0

17

Simplicity 1704346SM

COVER

$4.99

$

In Stock, Qty 7

0

18

Simplicity 5022791SM

PLASTIC NUT

$3.49

$

In Stock, only 2 left!

0
