ZT 1844 (2690487) - Massey Ferguson 44" Zero-Turn Mower, 18hp Kohler Lift Group (273DLT0) Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

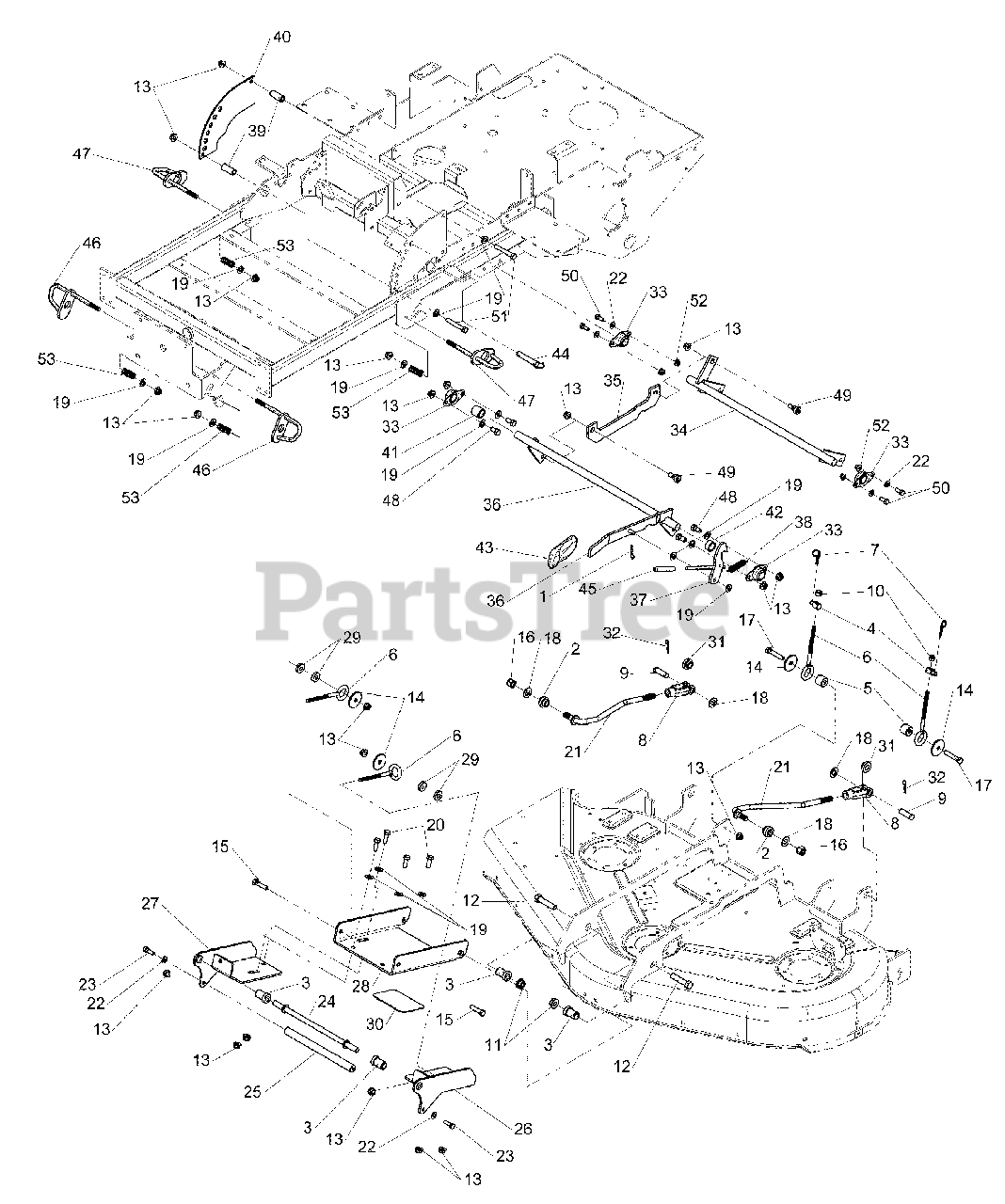

Lift Group (273DLT0) Parts Diagram

  • Title

1

Simplicity 5025202X12SM

PIN, Cotter, 3/16 X 1-1/2

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 5100351SM

BUSHING, REAR QUICK TACH

$5.99

$

In Stock, only 2 left!

0

3

Simplicity 5100144SM

SPACER, .53 X 1.00 X 1.44

$6.99

$

Usually ships in 2-12 days

0

4

Simplicity 5045947SM

ADJUSTER, BRAKE LINKAGE

$26.99

$

Usually ships in 2-12 days

0

5

Simplicity 5047125SM

SPACER, .39 X 1.00 X .88

$7.99

$

In Stock, Qty 8

0

6

Simplicity 5021812SM

EYE BOLT, 3/8-16 X 6, 3.0 THRD, 1 EYE

$5.99

$

Usually ships in 2-12 days

0

7

Simplicity 1918196SM

3/32 X 1-5/8 HAIR PIN CLIP N/A
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5023174SM

CLEVIS , 1/2-20, STEEL

$16.99

$

In Stock, only 1 left!

0

9

Simplicity 5025328X12SM

PIN CLEVIS 1/2" X 1-1/4"

$4.99

$

In Stock, only 2 left!

0

10

Simplicity 5025096SM

NUT, 3/8-16 HEX NYLON LOCK

$3.49

$

In Stock, Qty 11

0

11

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 3 left!

0

12

Simplicity 5025017X18SM

BOLT, 1/2-13 X 2-1/4" GD5

$5.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2" GD5

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025098SM

NUT, 1/2-20 HEX NYLON LOCK

$5.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2" GD5

$4.49

$

In Stock, Qty 6

0

18

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 5025156SM

WASHER 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

20

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, only 4 left!

0

21

Simplicity 5100170SM

ROD, DECK LIFT, LINKAGE

$31.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1" GD5
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

24

Simplicity 5100177SM

SHAFT, HANGER

$8.99

$

Usually ships in 2-12 days

0

25

Simplicity 5100135SM

SHAFT, HANDLE, DECK SUPPORT

$32.99

$

Usually ships in 2-12 days

0

26

Simplicity 5400391DYP

WELD, DECK HANGER, LH

$40.99

$

In Stock, only 1 left!

0

27

Simplicity 5400392DYP

WELD, DECK HANGER, RH

$40.99

$

Usually ships in 2-12 days

0

28

Simplicity 5400382DYP

PLATE, DECK HANGER SUPPORT

$87.99

$

Usually ships in 2-12 days

0

29

Simplicity 5044960SM

SPACER, .39 X 1.00 X .25

$5.49

$

In Stock, only 4 left!

0

30

Simplicity 5044875SM

SAFETY WALK, 4.50 X 3.50
(Superseded to 5101008SM)

$7.49

$

Usually ships in 2-12 days

0

31

Simplicity 5048258SM

BUSHING, DECK SUPPORT

$11.99

$

In Stock, Qty 6

0

32

Simplicity 1918196SM

HAIRPIN
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

33

Simplicity 5021098SM

BEARING, BRONZE FLANGE 3/4"

$13.99

$

In Stock, Qty 8

0

34

Simplicity 5048711DYP

WELD, DECK LIFT HANGER REAR

$71.99

$

Usually ships in 2-12 days

0

35

Simplicity 5048733DYP

LINK, DECK LIFT SHAFT

$20.99

$

Usually ships in 2-12 days

0

36

Simplicity 5400872DYP

WELD, DECK HEIGHT SHAFT

$84.99

$

Usually ships in 2-12 days

0

37

Simplicity 5048884DYP

WELD, DECK LOCK

$22.99

$

Usually ships in 2-12 days

0

38

Simplicity 5020639SM

SPRING, EXTENSION

$31.99

$

Usually ships in 2-12 days

0

39

Simplicity 5048264SM

SPACER, .63 X .39 X 1.50

$5.99

$

Usually ships in 2-12 days

0

40

Simplicity 5400370DYP

PLATE, INNER DECK HEIGHT

$14.99

$

Usually ships in 2-12 days

0

41

Simplicity 5048335SM

SPACER, .76 X 1.00 X 1.00

$7.99

$

Usually ships in 2-12 days

0

42

Simplicity 5046092SM

SPACER, .76 X 1.00 X .50

$5.99

$

In Stock, only 1 left!

0

43

Simplicity 5100171SM

GRIP, BLACK FLEXIBLE

$13.99

$

In Stock, only 1 left!

0

44

Simplicity 5100179SM

HITCH PIN, 1/2" X 2-1/2"

$29.99

$

Usually ships in 2-12 days

0

45

Simplicity 5023198SM

COVER, VINYL HANDLE

$4.49

$

Usually ships in 2-12 days

0

46

Simplicity 5400401DYP

WELD, QUICK RELEASE HANDLE, FRONT

$19.99

$

Usually ships in 2-12 days

0

47

Simplicity 5400839DYP

WELD, QUICK RELEASE HANDLE, REAR

$19.99

$

Usually ships in 2-12 days

0

48

Simplicity 5025013X6SM

BOLT, 3/8-16 X 3/4" GD5

$3.99

$

Usually ships in 2-12 days

0

49

Simplicity 5025356SM

SHOULDER BOLT, 3/8-16 X 1/2 X 3/8

$6.99

$

In Stock, Qty 6

0

50

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4" GRD5

$3.99

$

In Stock, Qty 6

0

51

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2" GD5
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

52

Simplicity 5025393SM

NUT, 5/16-24 HEX NYLOCK FLANGE

$2.99

$

Usually ships in 2-12 days

0

53

Simplicity 5021102SM

SPRING

$7.49

$

Usually ships in 2-12 days

0
